Assembly Instructions

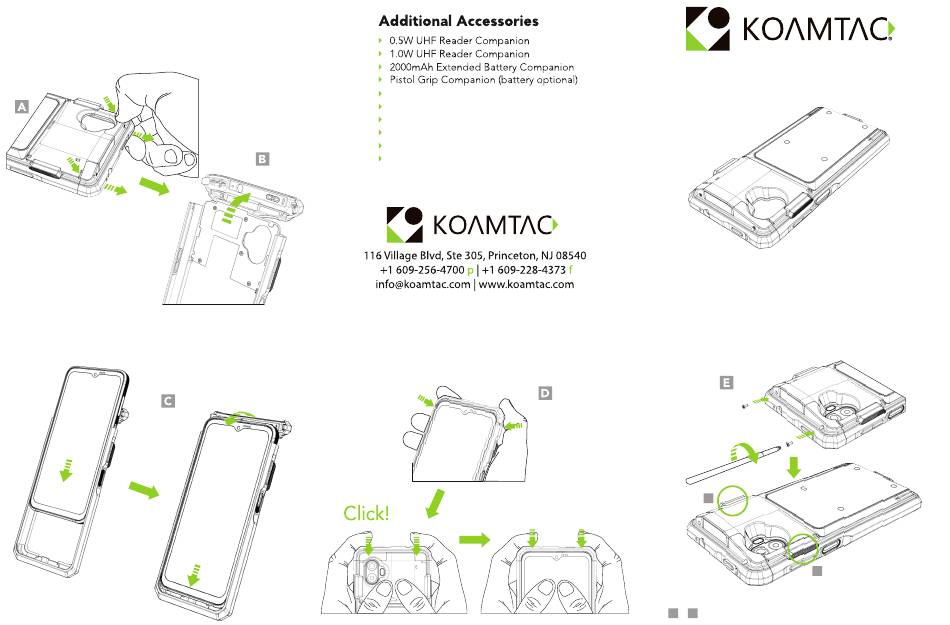

1. Place your fingernails in the grooves on both sides of the

SKX rear top cover and pull the top cover away from

the SKX. (A) Then, flip the top cover back as shown

below. (B)

*Make sure the phone is off

before assembly.

2. Slide the XCover smartphone into the SKX SmartSled

and flip the top cover forward as shown. (C)

SKX Pistol Grip 1-Slot Charging Cradle

SKX Pistol Grip 5-Slot Charging Cradle

SKX SmartSled Charging Cradles

XCover Charging Cradles

SKXSLED-mPOS

SKXSLED-MSRIC

3. Align the top cover with the body of the SKX SmartSled

and close it by pressing both sides from the back until

you hear a click. Press both sides of the top cover once

again from the front. (D)

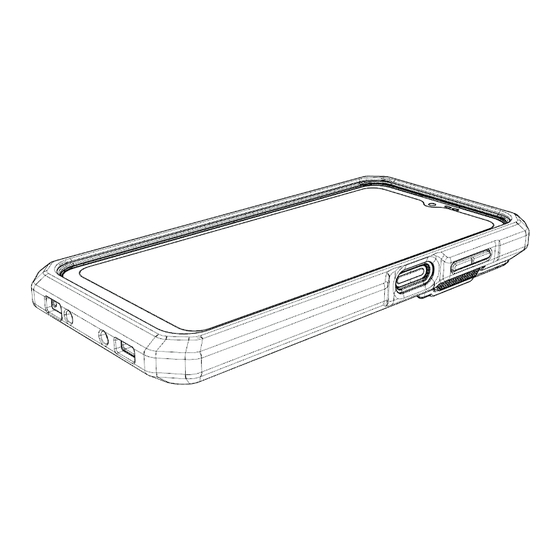

SKX

SmartSled

™

Assembly Manual

* PH0 screwdriver is necessary to complete assembly/disassembly.

* All pictures shown are for illustration purpose only.

* Actual product may vary.

4. Using the provided screws, tighten the top cover

via the screw holes on both sides of the scanner. (E)

*If the SmartSled is not connected to the XCover, press scan

buttons simultaneously for 3 seconds to connect.
