KoamTac SKX SmartSled Assembly Manual

What's in the Box? - Pistol Grip
1 x Contact PCB (SKXPro or SKX5)
1 x Companion Cushion (SKXPro or SKX5)
1 x 6000mAh Li-Polymer Battery (optional)
SKXPro
Contact PCB
SKX5
Contact PCB
SKXPro or SKX5
Companion Cushion
*SKXPro/SKX5 sold separately.
Tweezers and PH0 screw driver (not included)
will be necessary to complete assembly.
What's in the Box? - Extended Battery
1 x Contact PCB (SKXPro or SKX 5)
1 x Companion Cushion (SKXPro or SKX5)
2. Remove the transparent protective tape from the back
of the companion cushion and attach it to the back of
the SKXPro as shown below. (C)
SKX Pistol Grip 1-Slot Charging Cradle
SKX Pistol Grip 5-Slot Charging Cradle
SKX 1-Slot Charging Cradle
SKX 5-Slot Charging Cradle
XCover 1-Slot Charging Cradle
XCover 5-Slot Charging Cradle
SKXSLED-mPOS
SKXSLED-MSRIC

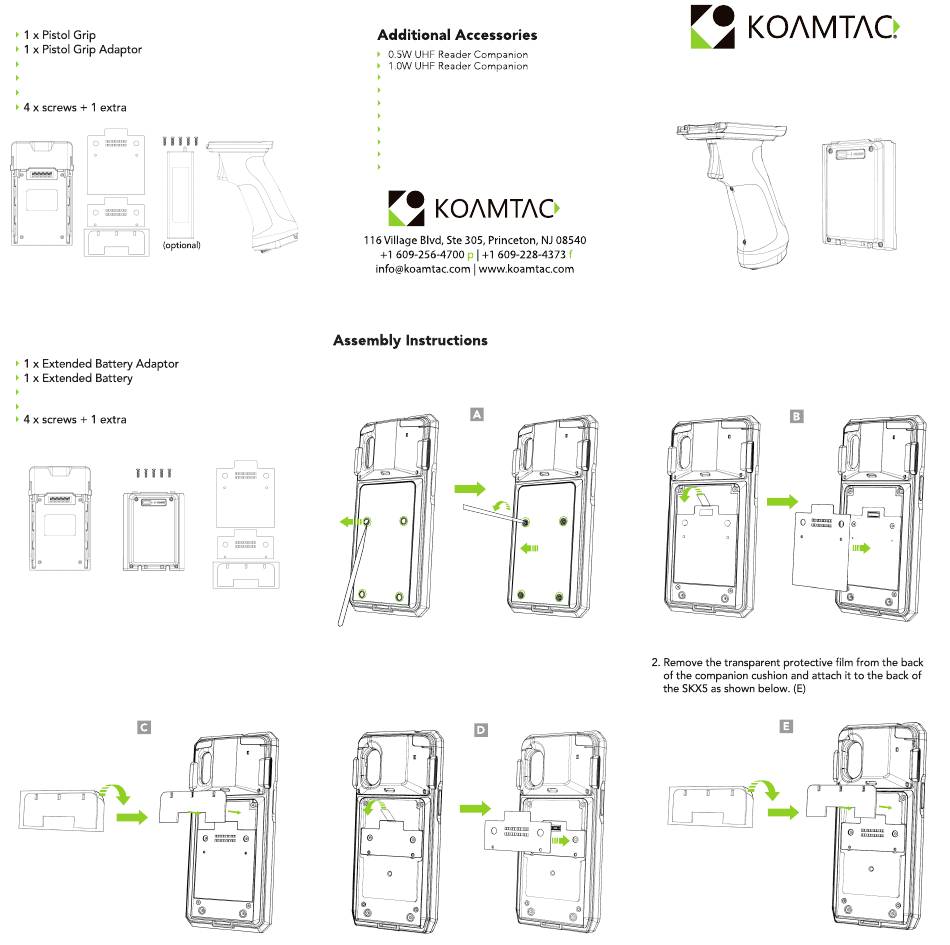

Using tweezers, carefully remove all four (4) screw caps
from the back of the SKX
(4) screws from the back of the SKX together with the
companion cover. (A)
SKXPro
Contact PCB
SKX 5
Contact PCB
SKXPro or SKX5
Companion Cushion
Contact PCB Assembly - SKX5 Only
Remove the blue protective tape from the front of the
companion PCB. Next, attach the contact board to the
back of the SKX5 as shown in the image. (D)
SmartSled . Then, remove all
™ ®
SKX SmartSled
™
Pistol Grip/Extended Battery
Assembly Manual
* All pictures shown are for illustration purposes only.
Actual product may vary.
Contact PCB Assembly - SKXPro Only
1. Remove the blue protective tape from the front of the
companion PCB. Next, attach the contact board to the
back of the SKXPro as shown below. (B)
®
