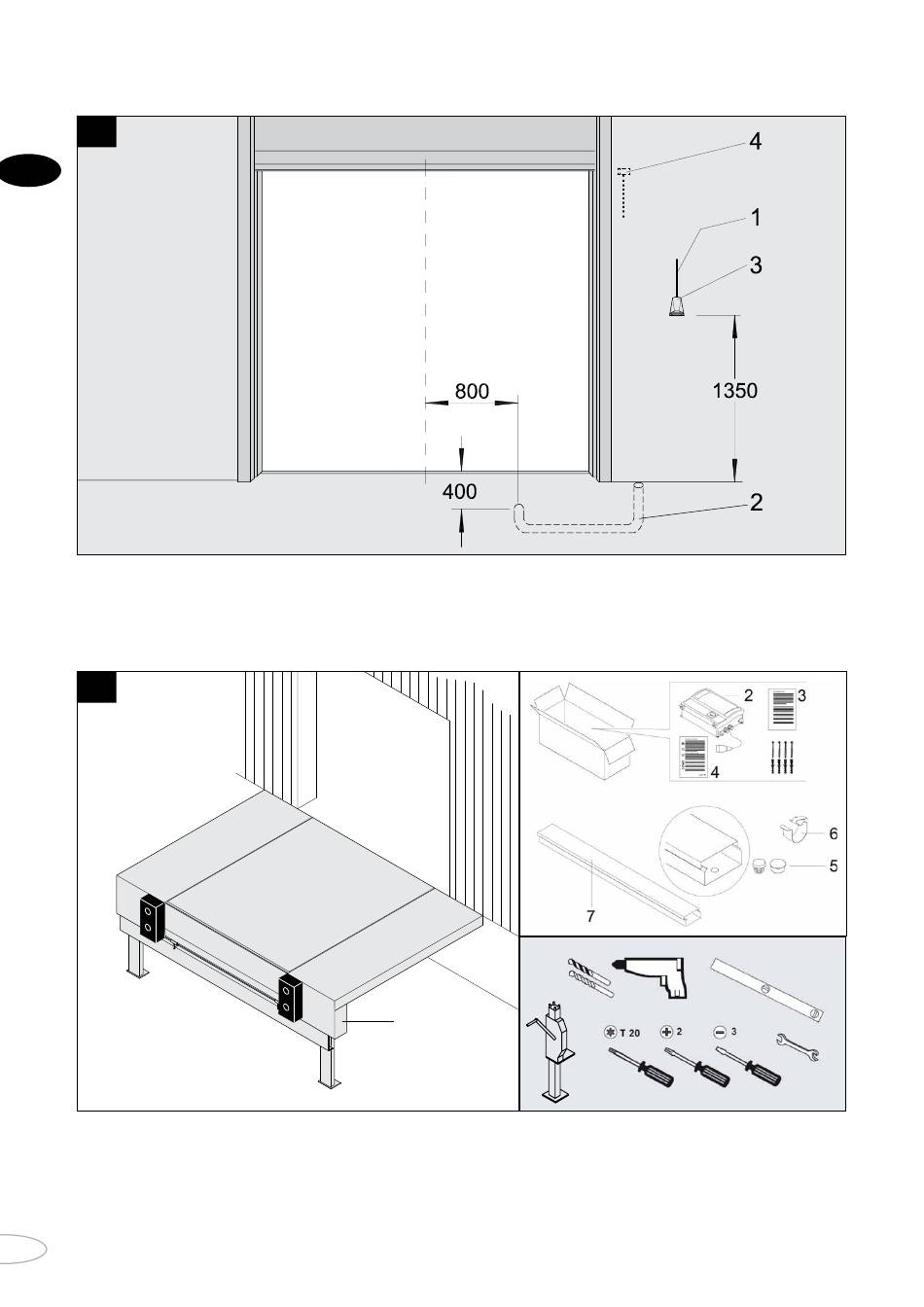

3. Site provisions (third party supply)
3.1
EN
Site provisions (third party supply)
1 Mains power supply: 3 / N / PE AC 50 Hz 230/400 V
Mains fuse: D0 10 A gl
Motor capacity: 0,75 kW
2 Tube for electrical cable,
Iinner diameter minimum of 70 mm, curved through ≤ 45°
3.2
1 Leveller
2 Controls
3
Installation and user manual, control system
4
Quick start guide
4
1
This installation manual must be given to the customer and kept safely during the entire period of use!
3 CEE power socket 16A
4
Door position sensor (optional)
General instruction: The image may differ at detail level.
6mm
16mm
5 Plastic plug
6 Cable clamp
7
Cable conduit (Not in scope of supply)
General instruction: The image may differ at detail level.
