TE Connectivity Nuclear E7000 Series Instruction Sheet

1. INTRODUCTION
This instruction sheet covers the installation and
operation of the AGASTAT* Nuclear E7000 Series 
4-Pole Timing Relays (Models E7014 and E7024).
Read these instructions thoroughly before installing
the relay.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures
are not drawn to scale.
i

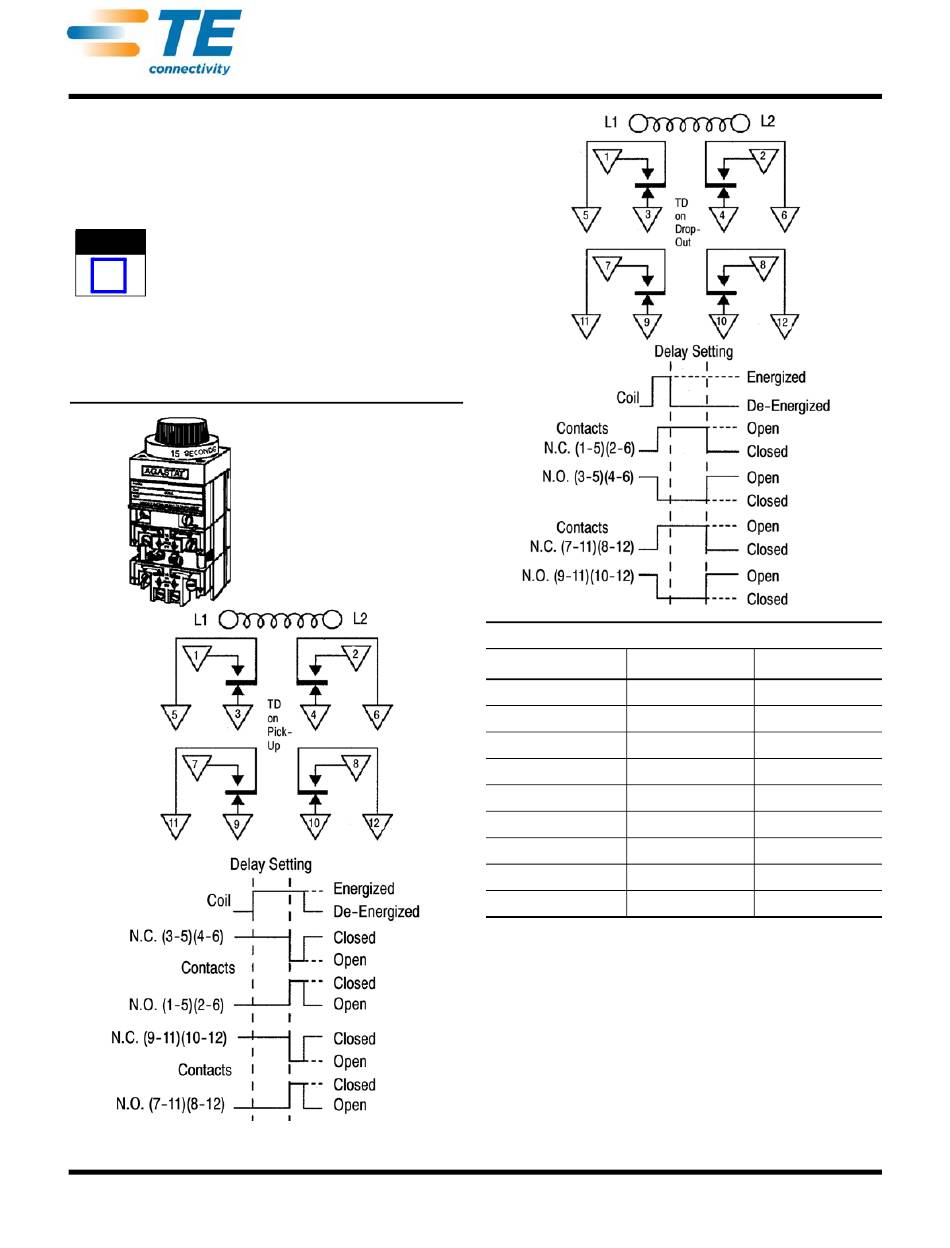

2. DESCRIPTION (Figure 1)
Each relay is a precise timing instrument which
balances pneumatic, electrical, and mechanical forces
using a minimum of moving parts.
Model E7014
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.


Nuclear E7000 Series 4-Pole Timing Relay


4-Pole Timing Relay
(Typ)
Figure 1 (Cont'd)
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Model E7024
LINEAR TIMING RANGES
TIME RANGE CODE
MODEL E7014
A 0.2 to 2 Seconds
B 0.7 to 7 Seconds
C 2 to 20 Seconds
D 10 to 100 Seconds
E 30 to 300 Seconds
F 1.5 to 15 Minutes
H 3 to 30 Minutes
I Not Available
K Not Available
†
Model E7014 is available with letter calibrated dials only. The upper
end of the time ranges in this model may be twice the values shown.
Basic models are furnished with dials calibrated in linear increments
covering the range selected. In addition, time-calibrated ranged B
through K provide non-linear adjustment from 0.2 second to the
beginning of the linear zone. For easiest adjustment and lowest
cost, select the shortest time range suitable for the application.
Repeat accuracy at any fixed temperature is ±10%. The first time
delay afforded by units with H (3 to 30 minutes) and I (6 to 60
minutes) time ranges will be approximately 15% longer than
subsequent delays due to coil temperature rise.
NOTE: Dial settability with respect to the marking on the regulating
dials is NOT included in the above repeatability value.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-8455
07 OCT 11 Rev B
†
MODEL E7024
0.1 to 1 Second
0.5 to 5 Seconds
1.5 to 15 Seconds
5 to 50 Seconds
20 to 200 Seconds
1 to 10 Minutes
3 to 30 Minutes
6 to 60 Minutes
1 to 300 Cycles
1 of 3
LOC B
