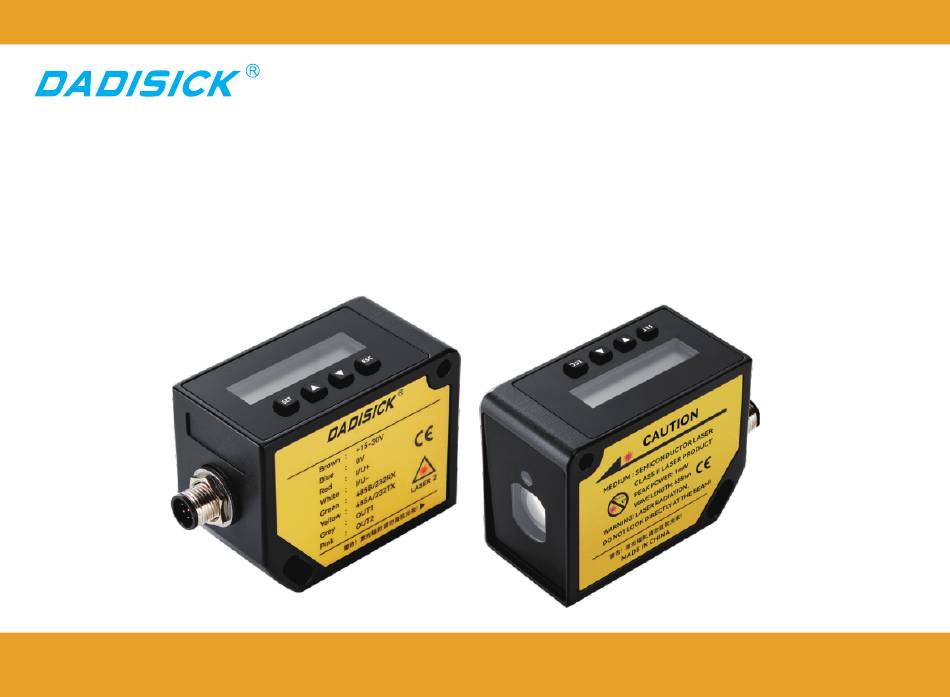

- Page 1 Laser Ranging Sensor User Manual DA/B-Y10 DA/B-Y20 DA/B-Y30 DA/B-Y50 DA/B-Y100...
-
Page 2: Table Of Contents
Contents ............................User Instructions ..............................1. Packing List ........................2. Features and Applications ..........................3. Technical Parameters ..........................4. Display and Buttons ............................. 5. Setting Mode ............................. 5.1 Settings Menu ........................5.2 Miscellaneous Settings ..........................5.3 Analog Output ........................5.4 Communication Setup ......................... -
Page 3: User Instructions
Executive standard: GB/T 14267-2009 User Instructions Safety Regulations Before using the instrument for the rst time, please read the safety terms and operating instructions carefully. Please read all operating instructions and safety regulations in this manual carefully before using the instrument. Failure to use the instrument in accordance with the operating methods in this manual may cause damage to the instrument, a ect measurement accuracy, and cause personal inju to the user or third pa ies. -
Page 4: Packing List
1.Packing List When purchasing the instrument, please carefully check whether all accessories of the instrument are complete according to the following list. Name Unit Qty. Remarks Main unit M12 8pin connector cable About 2 meters Color box User Manual Re ector 210*148mm Metal lm resistor 120Ω±1% 125mW plug-in “Housheng”... -
Page 5: Features And Applications
Metal lm resistor Main unit Re ector Connector cable User Manual Mounting screws 2.Features and Applications DA/B-Y series industrial-grade laser sensors provide accurate and stable distance measurement and can be integrated into various industrial applications. The red laser beam hits the re ective su ace and non-contact measurement is pe ormed based on the return signal. - Page 6 Features Phase method distance measurement, high accuracy and fast speed. Precision optics can ensure high accuracy even outdoors and in harsh environments. Metal die-cast shell, IP67 safety protection level. Output inte ace: RS232/RS485, 2-way switching output, voltage/current output (type B only). With buttons and display screen, it is convenient to set the working parameters of the instrument.
-
Page 7: Technical Parameters
3.Technical Parameters Item Type A Type B(With voltage and current output) Model DA-Y10 DA-Y20 DA-Y30 DA-Y50 DA-Y100 DB-Y10 DB-Y20 DB-Y30 DB-Y50 DB-Y100 Measuring distance Voltage/current output Can be set to 0~5V / 0~10V / 4~20mA / 0~20mA /0~24mA output *Note 2 Voltage output error 0.2%+0.5mV Current output error... - Page 8 Power consumption <3.0W Protection grade IP67 Shell material Die-cast zinc alloy Working temperature -10°C~50°C Storage temperature -20°C~60°C, 20%~85%RH and humidity When the body temperature is higher than 70°C, the measurement will be shut down and Overheating protection when the temperature is lower than 70°C, the measurement will be resumed Body size 88.45x40x59.3mm (including connection base) *Note 1: When [Speed Level] is 1.
-
Page 9: Display And Buttons
4.Display and Buttons Display ① ② ③ ① Station number 9.999 ② Measuring distance ③ Unit of measurement distance Buttons Button Press Hold Con rm in setting mode Enter parameter setting mode Backlight switch setting Return to setting mode Adjust option content Adjust position forward Adjust option content Adjust position backward... -
Page 10: Setting Mode
5.Setting Mode Q1 Positive polarity Switching output Q1_L Low value of Q1 switching range Miscellaneous Speed level Q1_H High value of Q1 switching range settings Reset Q2 Reverse polarity Type Q2_L Low value of Q2 switching range Lower limit Analog output Q2_H High value of Q2 switching range Upper limit Station No. -
Page 11: Settings Menu
5.1 Setting Menu The setting menu includes: Miscellaneous settings, analog output, communication setup, product information and language setting. Miscellaneous Settings 1) Press to adjust the previous option; Analog Output 2) Press to adjust the next option; Menu Communication Setup 3) Press to enter the selected menu item;... - Page 12 1) Press to adjust the option upward/adjust the value of the selected option; Positive polarity 2) Press to adjust the option downward/adjust the value of the selected option; Q1_L 01000 Switching 3) Press to select/uncheck the menu item; Output Q1_H 02000 4) Press to cancel the selected menu item;...
-
Page 13: Analog Output
5.2.3 Reset Enter the “Reset” option in miscellaneous settings, refer to [5.4 Miscellaneous Settings], and restore to facto settings. Reset 1) Press to con rm reset; Con rm to reset? 2) Press to cancel and return to the previous inte ace; 5.3 Analog Output Enter the “Analog Output”... -
Page 14: Communication Setup
5.4 Communication Setup Select the “Communication Setup” option in the menu, refer to [5.1 Settings Menu]. 1) Press to adjust the previous option; Station No. 01 2) Press to adjust the next option; Communication RS485 3) Press to enter/select the selected menu Setup Communication format item;... - Page 15 5.4.2 Po Enter the “Po ” option in the communication setup, refer to [5.4 Communication Setup]. 1) Press to adjust the po upward; Station No. 01 Communication 2) Press to adjust the po downward; RS485 Setup 3) Press to con rm the selected menu item; Communication format setting 4) Press...
-
Page 16: Product Information
B (Baud rate) option: 1200/2400/4800/9600/19200/38400/57600/115200 D (data bit) option: 8/9 P (parity) option: Even/Odd/None S (stop bit) option: 1/1.5/2 5.5 Product Information Enter the “Product Information” option in the Settings menu, refer to [5.1 Settings Menu]; The product model, software version, compilation date, and instrument temperature are scrolled. Product Information Product Model DA-Y20... -
Page 17: Language Setting
5.6 Language Setting Ente he"Language Settings" option in the settings menu, refer to [5.1 Settings Menu]; 1) Press to adjust the option upward; 2) Press to adjust the option downward; Chinese 3) Press to con rm the selected menu item; English 4) Press to return to the previous inte ace;... -
Page 18: Main Unit Wiring And Networking Instructions
6.Main Unit Wiring and Networking Instructions Wire color Inte ace de nition Description Positive pole of external power supply Brown DC 15~30V (input) Blue Power- (input) Analog output+ 4~20mA / 0~20mA / 0~24mA AO+ (type B only) 0~5V / 0~10V Voltage/current output dedicated ground White AO- (type B only) -
Page 19: Current Output (Type B Only)
6.1 Current Output (type B only) Note: Current and voltage can’t be output at the same time. Wiring method: Instrument DC ammeter White Analog - Analog + Output value calculation: － － － In the formula, I is the output current; is the maximum value of the output current range, Imin is the minimum value of the output current range;... -
Page 20: Voltage Output (Type B Only)
For example: The working mode is 4~20mA output (I = 20, I = 4), The maximum distance value [upper limit] 0x1B=5000 (mm), the minimum distance value [lower limit] 0x1A=0 (mm), the present measurement distance = 3000 (mm), the calculation method is as follows: −... - Page 21 Output value calculation: － － － In the formula, U is the output voltage; is the maximum value of the output voltage range, Umin is the minimum value of the output voltage range; D is the present measurement distance; is the minimum distance value of analog output, Set in 5.3 [Lower limit]; is the maximum distance value of analog output, Set in 5.3 [Upper limit].
-
Page 22: Transistor Switching Output
6.3 Transistor Switching Output This function has an open-drain (collector) output inside the instrument, It can only input DC current and cannot directly output voltage and current, Please note that the current sink cannot exceed DC36V 0.5A. The schematic diagram of the external relay and alarm light of the instrument is as follows: DC15~30V positive pole Instrument... - Page 23 The level output mode can be set to positive polarity or reverse polarity, Qx_L (0x1C) and Qx_H (0x1D) in register. Positive polarity output Less than Greater than setting range setting range Reverse polarity output Greater than Less than setting range setting range （Qx_L)* （Qx_H)*...
-
Page 24: Rs232 Wiring Method
6.4 RS232 Wiring Method This function has an open-drain (collector) output inside the instrument. It can only input DC current and cannot directly output voltage and current. Please note that the current sink cannot exceed DC36V 0.5A. DC15~30V Computer positive pole Brown Yellow 3-pin TXD... -
Page 25: Rs485 Wiring Method
6.5 RS485 Wiring Method For example, the following gure is the wiring diagram for joint commissioning of Mitsubishi PLC (FX3U-16M), computer and ranging sensor. Note: The power supply for the instrument in the gure is provided by the 24V of the PLC. In the absence of PLC 24V power supply, an additional 15~30V DC power supply can be connected. -
Page 26: Rs485 Networking Wiring Method
D-Sub connector RS485 pin de nition 485 female terminal 485 male terminal (hole-shaped) (needle-shaped) 5 GND 3 DB 3 DB 5 GND 9 8 DA 7 7 8 DA (Note: Di erent manufacturers may have di erent speci cations) 6.6 RS485 Networking Wiring Method For example, the gure below is a connection diagram for networking a computer and multiple instruments through RS485 half-duplex communication, All instruments are connected to the bus, Due to address restrictions, the maximum number is 64. -
Page 27: Communication Protocol (Modbus Rtu)
7.Communication Protocol (MODBUS RTU) Please go to www.dadisick.com to download the Ranging Sensor Reference Manual for detailed information. 7.1 Data Transmission Format Default format Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: N Baud rate, data bits, stop bits, parity bits and other parameters can be set in 5.2.3 [Communication Format Settings]. -
Page 28: Function Register List (16-Bit)
7.4 Function Register List (16-bit) Hexadecimal Decimal Attribute Value range Function description address address 0x10 R/W (rese ed) 0x11 0: Turn o measurement 2: Continuous measurement 0x12 Ranging speed level: 1: slowest, 5: fastest 0x13 R/W (rese ed) 0x14 1~64 Slave station number 0x15 High byte of distance register... -
Page 29: Installation Dimensions
8.Installation Dimensions (Joint su ace) (Joint su ace) 88.45 40.00 74.27 (Laser emitting su ace) (Side view of main body) - Page 30 DONGGUAN DADI ELECTRONIC TECHNOLOGY CO., LTD sale@dadisick.com Website: www.dadisick.com Email: We rese e the right to make technical changes 2024-04-22...
