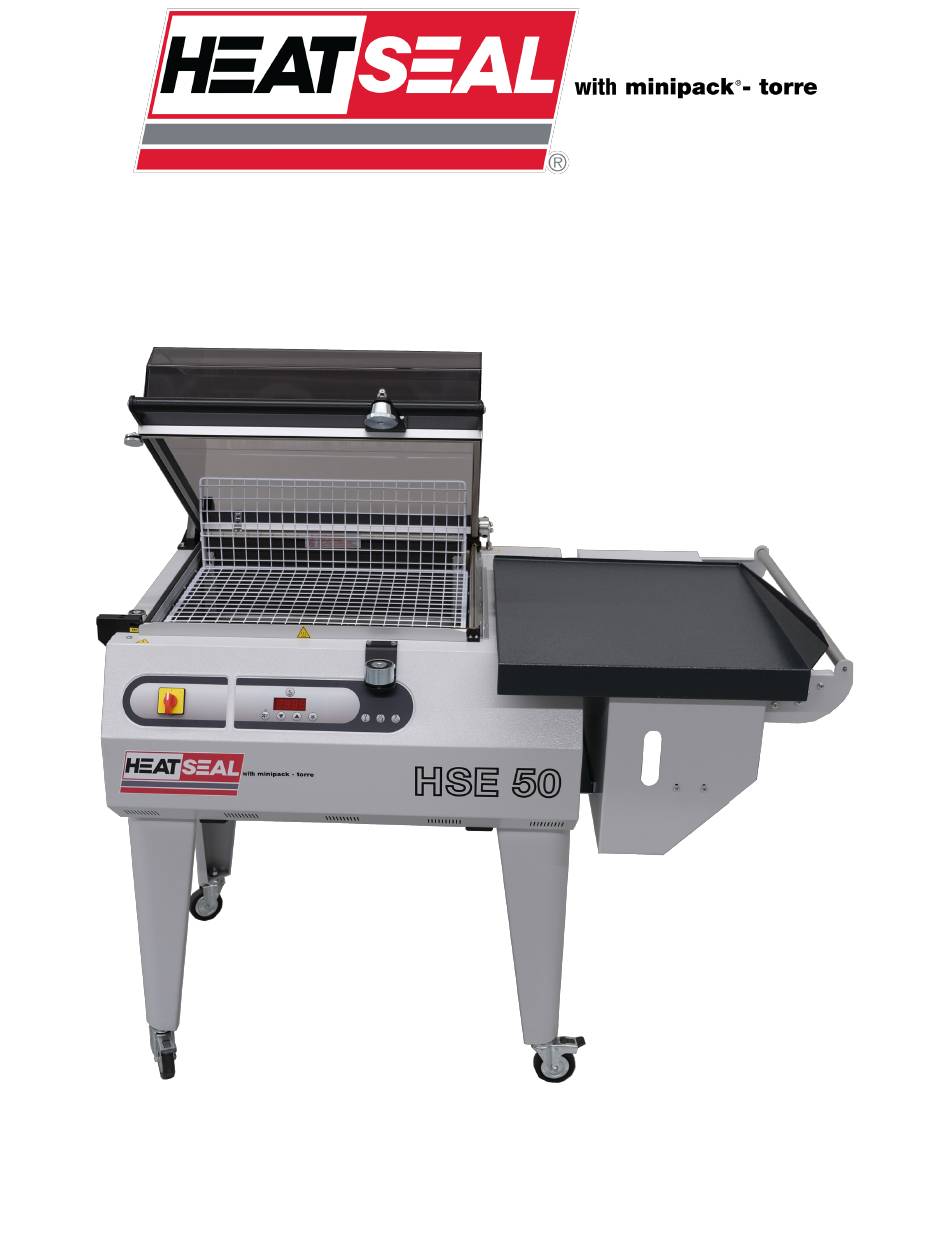

- Page 1 USER MANUAL HSE50 READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT P/N: MPT-FM111187A REV.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Foreword ........................3 Preface Machine Dimensions Machine Usage ......................4 Film to be Used Film Width Calculation Max Weight and Dimensions for Packages Items that may be Packaged Items which must not be Packed Safety Standards ......................5 Machine Installation ...................... -
Page 3: Foreword
Descriptions and pictures provided in this manual are not binding. Therefore; the manufacturer reserves the right to make any change considered necessary. This manual cannot be transferred for viewing to third parties without authorization in writing from Heat Seal. MACHINE DIMENSIONS HSE50 English Metric Width “a”... -
Page 4: Machine Usage
MACHINE USAGE FILMS TO BE USED The machine can work with polyolefin heat-shrink film between 9 and 25 micron thick, both technical and suitable for food. To guarantee the best results, use high quality cross-linked and irradiated films. A = 19.68 in MAX D = 9.85 in MAX d = 3 in A = 600mm MAX... -
Page 5: Safety Standards
SAFETY STANDARDS WARNINGS It is extremely important to read this entire chapter as it contains important information regarding risks that personnel are sub- ject to in the event of incorrect use of the machine. These basic standards must be observed as well as specific standards ap- plicable in the country of installation. - Page 6 SAFETY STANDARDS INDIVIDUAL PROTECTION DEVICES Wear safety shoes that protect feet from impacts, crushing and compression while moving or handling the machine. Wear safety gloves that protect the hands from crushing and mechanical hazards and while moving or han- dling the machine. Wear safety gloves that protect the hands against cutting risks while changing the sealing blade.
-
Page 7: Machine Installation
MACHINE INSTALLATION TRANSPORT AND POSITIONING Handle with great care during transport and positioning! Before any movement, make sure that the lifting means is suitable for the load to be lifted! Cat the straps and remove the cardboard cover. Remove the screws and plate intended to fasten the machine to the pallet. -
Page 8: Electrical Connections
AUTO-TRANSFORMER WIRING The HSE50 is equipped with a step-up transformer that must be used when the facility power supply is less than 220VAC. When the facility power is 220V and over, the transformer must be bypassed. The following procedure is to be used to match the transformer with the facility power. -
Page 9: Machine Settings
MACHINE SETTINGS CONTROL PANEL The machine is fitted with a control panel, from which all programming and operation functions can be set. Q1 Main switch ▼ Button “DECREASE”. Reduces set function values ▲ Button “INCREASE”. Increases set function values 3 Button “Soft Shrink”. Reduces the fan speed L1 Temperature warning light L2 Shrinking warning light... - Page 10 MACHINE SETTINGS Once the desired program has been selected, press the button (S) to display the program's parameters. The code (flashing) that identifies the first parameter that will be alternated with the set value will appear on the display. If the parameter indicates a function that can be linked to an LED indicator on the panel, said LED will flash to show that a pa- rameter for the linked function is being programmed.
-
Page 11: Partial Cycle Counter
MACHINE SETTINGS The operating parameters for each program are: Parameter Description Range Default The indicated value will correspond to: 0 = 0° (the heating element is switched off) 1 … 150 = 100° … 398°C (2°C each point) PARTIAL CYCLE COUNTER When the machine is in PROGRAM SELECTION mode, the display shows the program in execution (e.g. -
Page 12: Machine Adjustments
MACHINE ADJUSTMENTS FILM ROLL INSTALLATION Insert the reel of film on the roller (5) and lock it with the centering cones (6) Position the roller on the film reel support Feed the film around the return roller (7) ... -
Page 13: Packaging A Product
PACKAGING A PRODUCT MAKING THE FIRST SEAL Place film as shown in the picture to carry out the 1st seal. Lower the cover using the handle until the magnet latches. Machine will automatically operate and the first seal will be carried out on the side of the film. -
Page 14: Machine Alarms
MACHINE ALARMS The electronic board detects series of alarms that indicated on the display by the following messages: Limit switch B1 closed when the machine is switched on. Possible causes are: Machine on and hood down. Lift the hood. AL1: ... -
Page 15: Maintenance
MAINTENANCE REGULAR MAINTENANCE MUST BE CARRIED OUT BY QUALIFIED, APPROPRIATELY TRAINED STAFF. Before carrying out maintenance, switch the machine off with the main ON/OFF switch, disconnect it and wait for the machine to cool down! MAINTENANCE TABLE The type of machine requires reduced maintenance operations; you must nevertheless stick to the Maintenance plan. FREQUENCY COMPONENT TYPE OF OPERATION... -
Page 16: Replacing The Rubber And Non-Stick Tape
MAINTENANCE REPLACING THE RUBBER AND NON-STICK TAPE When the non-stick tape (32) is worn out, it must be replaced. When applying new tape, make sure the application is linear and even. Before applying the new tape, clean the rubber (33) with a detergent. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION The shrink time parameter “Shri" is set on OFF. The chamber temperature parameter “TEMP" is to OFF or too low. Wait for the machine to reach the set temperature (Led The machine is in heating mode “L1”... -
