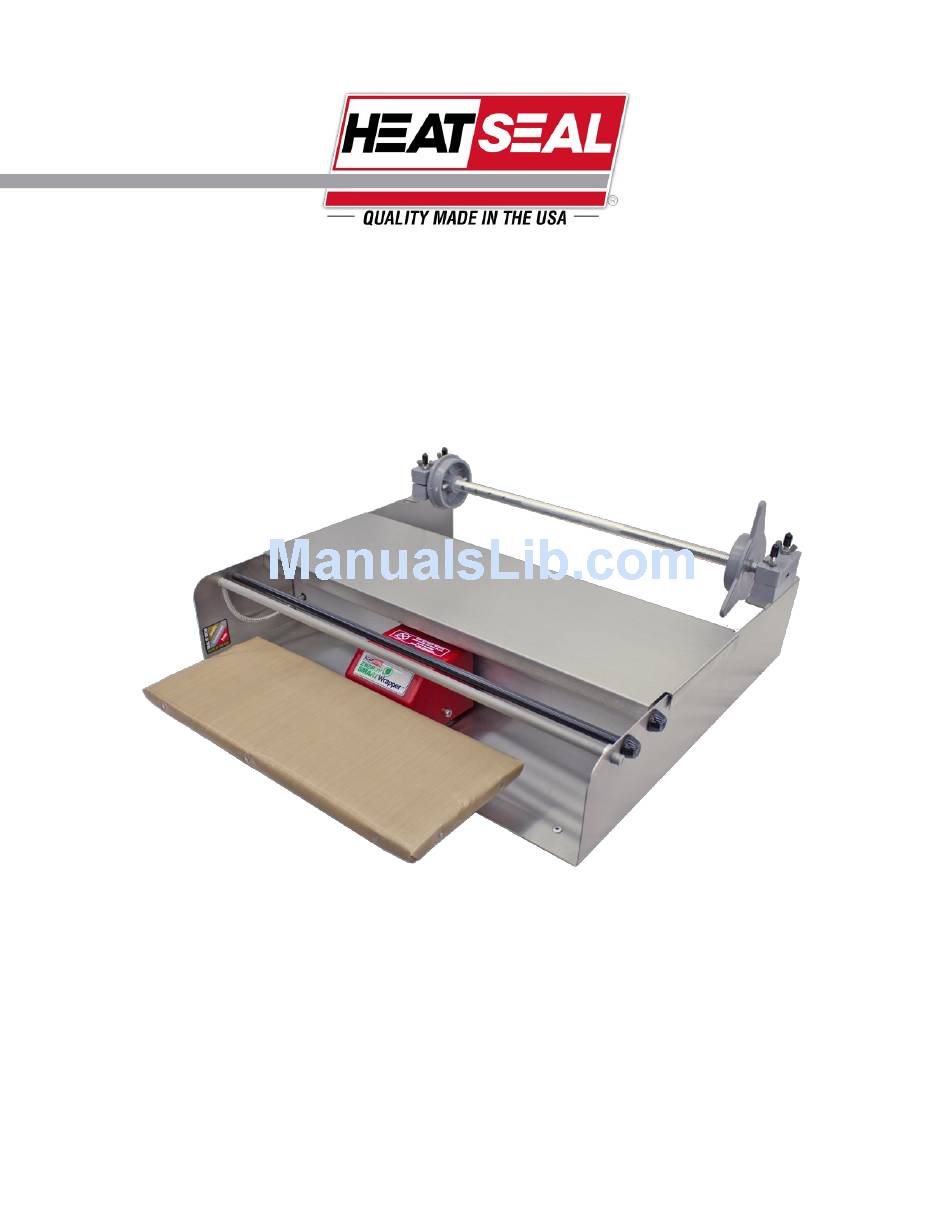

- Page 1 OPERATING & SERVICE PARTS MANUAL 625ES ENERGY SMART WRAPPER READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT Revised 2017...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Components & Electrical Requirements ............3 Preliminary Setup ......................5 Recommended Maintenance ..................6 Troubleshooting Guide ....................7 Hot Rod Circuit Board Test ................... 9 Replacing Rocker Arm Assembly ................10 Service Parts Information ................... 11 Revised 2017... -
Page 3: Machine Components & Electrical Requirements
Do NOT use the seal plate as a cutting surface, as this will damage the thin heating foil and Non-stick cover plate. Seal plate damage voids the warranty. ELECTRICAL REQUIREMENTS The Model 625ES requires 115 volts, 16 amps. (20A breaker required) Revised 2017... - Page 4 MACHINE TECHNOLOGY & COMPONENTS STAINLESS STEEL BRIDGE The wrapper comes with a stainless steel bridge (1) that can be utilized as a working surface while preparing products. The stainless steel bridge is not recommended as a cutting surface. OPERATOR INDICATOR LIGHT ...
-
Page 5: Preliminary Setup
PRELIMINARY SETUP INSTALLING & REPLACING AXLE ASSEMBLY To install the axle assembly (1), simply position the assembly at the rear of the machine with the removable end cap (2) on the left side as pictured below. Insert two bolts (3) on each side through the holes in the machine base (4) and bearing blocks (5), screw on wing nuts (6) and luster caps (7) to the ends of the screws ... -
Page 6: Recommended Maintenance
Wipe the surface clean of debris and residue with clean paper towels or cloths. CLEANING THE UNIT The 625ES can be completely wiped down using mild cleaning detergent and soft rags or paper towels. Do not hose down or submerse the unit. -
Page 7: Troubleshooting Guide
Indicator Light is Verify 120V is being supplied to the light when the Seal Plate is actuated. If voltage is present, re- not working proper- place the Rocker Arm Assembly Kit (Part #6340-076) Figure 1 625ES Electrical Box Pictured Revised 2017... - Page 8 If the plate does not heat at all or is only slightly warm to the touch, replace the Seal Plate & Rocker Arm Assembly (Seal Plate & Rocker Arm Kit - 625ES Part #6340-078; 107ES Part #6135-038). Film Cut-off Rod Verify the unit is plugged into a 20 Amp, GFCI circuit and the Power Switch is set to the “ON”...
-
Page 9: Hot Rod Circuit Board Test
HOT ROD CIRCUIT BOARD TEST HOT ROD CIRCUIT BOARD EXAMPLE ELECTRICAL REQUIREMENTS The Model 625-ES requires 115 volts, 19 amps. (20A breaker, GFCI protected circuit) For board location in machine see page 13, #2 HOT ROD CIRCUIT BOARD TEST ... -
Page 10: Replacing Rocker Arm Assembly
2. On the 107ES, remove rod that attaches the ES conversion kit from the console legs, and two self tapping screws. Remove 4 pan head Phillips screws that attached the electrical box. On 625ES, loosen all four pan head Phillips screws, located at the top of the electrical box - two in front, two in back, and remove the cover. - Page 11 Following Disassembly of the Unit To Replace the Red Rocker Arm, Switch, Light or Spring: 6. Press the plug (G) (Floor model ES) or grommet (H) (625ES) into hole in the back of red rocker arm. 7. Assemble the Switch (I) ...
- Page 12 TIMER BOARD ASSEMBLY Revised 2017...
-
Page 13: Service Parts Information
SERVICE PARTS INFORMATION BILL OF MATERIALS FOR MAJOR SUB-ASSEMBLIES ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6 x 15 6340-078 Replacement Rocker Arm and 6 x 15 Seal Plate Kit 6340-062 Hot Rod Replacement Kit Includes: (1) Cutoff Rod, TEC100, 22 1/2”LG, (1) Cutoff Rod Col- lar, 3/4OD, 25/64 ID, 1/4 THK, 8/32 Hole, (1) Set Screw in Hot Rod Collar, (1) Split Electrical Bushing, 3/8 dia, mtg hole. - Page 14 SERVICE PARTS INFORMATION BILL OF MATERIALS FOR BASE ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 6340-062 Hot Rod Replacement Kit Includes: (1) Cutoff Rod, TEC100, 22 1/2”LG, (1) Cutoff Rod Col- lar , 3/4OD, 25/64 ID, 1/4 THK, 8/32 Hole, (1) Set Screw in Hot Rod Collar, (1) Split Electri- cal Bushing, 3/8 dia, mtg hole.
- Page 15 ELECTRICAL BOX & HOT PLATE PARTS BILL OF MATERIALS FOR ROCKER ARM ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 6340-076 Rocker Arm Replacement Kit (does not include the seal plate): (1) Pivot Bracket, (1) Red Indicator Light, (1) Snap action Switch, (2) Shoulder Bolts, (1) Compression Spring, (2) Stainless Steel Philips Screws, (2) K-Type Lock Nuts, (1) Snap Bushing, (1) Plastic Hole Plug, (4) Stainless Socket Cap Screws, (4) Star Washers,(1) Threadlocker Revised 2017...
- Page 16 ELECTRICAL BOX & HOT PLATE PARTS BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION 1818-026 Circuit Board Assembly, Energy Smart Wrapper 1818-001 Cut off Element Circuit Control Board, 120V 1821-034 1 Amp Fuse, MDA, Slo-Blo 1821-037 25 Amp Fuse, Fast Blow, 125V, ABC 6340-067 Fuseholder Kit 1Amp Includes: (1) Fuseholder, Panel Mtg, 30A, 1/4 dia x 1-1/4 LG Fuse Size, (1) Fuse, 1 Amp, MDA, Slo-Blo...
