Friday Furniture CS36 Quick Start Manual

Clamshell desk
Hide thumbs

Advertisement

Quick Links

Download this manual

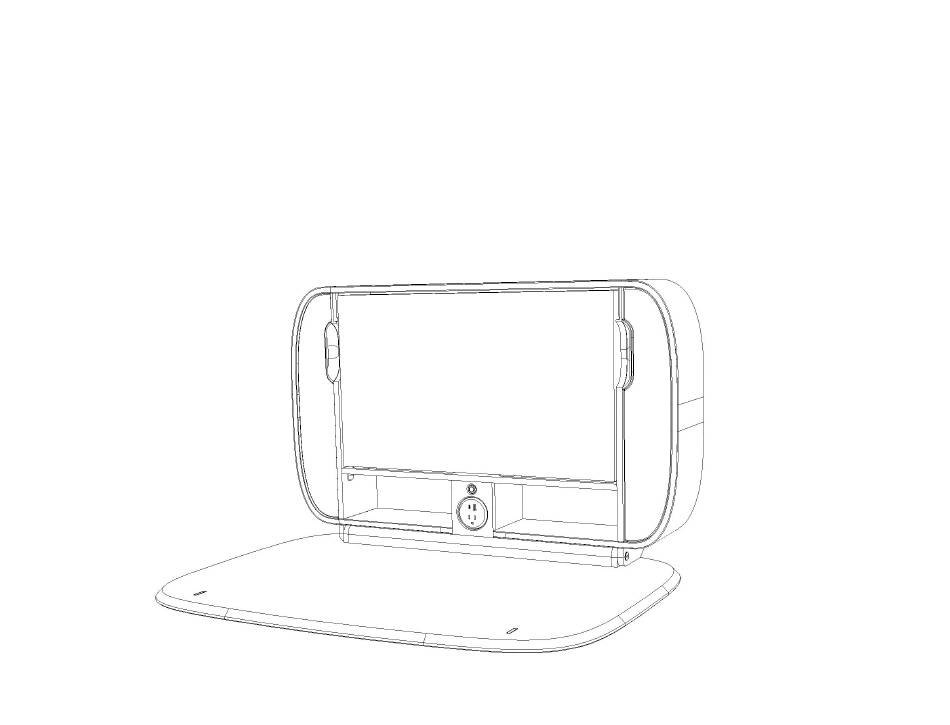

Clamshell Desk CS36
Quick start guide
1
Rev 1.0 © 2024 Friday Furniture LLC

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS36 and is the answer not in the manual?

Questions and answers

Related Manuals for Friday Furniture CS36

Summary of Contents for Friday Furniture CS36

  • Page 1 Clamshell Desk CS36 Quick start guide Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 2 Questions or Comments? Contact email: hello@friday.furniture Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 3 Clamshell Desk at a glance Magnetic latches 27” Monitor Ring light controller USB-A & USB-C ports Power outlet Power strip cover panel LED ring light Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 4 Weight limit - Do not exceed 100 lbs of weight on the desk top surface when unfolded. Do not allow children to play on or around desk. Do not exceed 200 lbs total weight of Clamshell Desk and accessories. Max load 100 lbs Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 5 Warnings Electrical load - Do not exceed 1200W total electrical load on Clamshell Desk power system. Rev 1.0 © 2024 Friday Furniture LLC...

  • Page 6: Installation

    Required tools: 1. Electric drill 2. 5/32” and ¼” drill bit 3. PH2 Phillips driver bit 4. 7/16” Wrench 5. Spirit level 6. Tape measure 7. Pencil Recommended tools: 1. Electronic stud finder Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 7 Installation Included hardware Part Count Reference image (not to scale) ¼” x 2.5” Lag bolt 4.5x50mm pan head screw Drywall anchor ¼” Washer Aluminum mounting bracket C13 Power cord Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 8 90 degree angle. Measure from the floor to the underside of your forearm. This is your ideal desk height. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 9 (determined in Step 1) + 18.75” (476mm) from the floor. This is the location of your first pilot hole for the mounting bracket. Pilot hole height = ideal desk height + 18.75” Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 10 ¼” lag screw. In total your mounting bracket must be attached to two separate studs. Tighten the lag screws all the way. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 11 Use your spirit level to confirm the desk is level and seated correctly. Gently pull the top edge of the desktop away from the wall to open the desk. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 12 The port on the underside of the desk can be bypassed by plugging the power strip behind the corkboard directly into the power outlet on the wall. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 13 ¼” hole and pressing the anchors into the hole until they are flush with the drywall. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 14 The stock monitor arm (Mount Pro) attaches to the slots. The Ergotron LX upgrade monitor arm attaches to the BLUE slots. Monitor arm mounting slots (slots used depend on monitor arm selected) Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 15 Pass the plug through the opening behind the corkboard area, and connect to the power strip. Pull any slack in the cable through the hole and coil behind the corkboard. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 16 Gently pull the top edge of the desktop away from the wall to open the desk. Check to make sure the safety screw slots line up with the installed drywall anchors. If not, adjust accordingly. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 17 Your desk is now installed and ready to go! Plug it in with the provided C13 power cord. Drive screws through these slots and into the drywall anchors installed in Step 6 Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 18 Tap once to turn the ring light on and off. While the light is on, touch and hold the black metal pad to adjust brightness. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 19 Avoid contact with pacemakers or other devices sensitive to magnetism. Use a firm grip and take care when opening the desk. Do not allow the desktop to drop uncontrollably. Rev 1.0 © 2024 Friday Furniture LLC...
  • Page 20 Using your desk Cleaning and care Disconnect C13 power cord and wipe wood surfaces with a damp cloth. If wooden hinge squeaks or creaks, it can be lubricated with paraffin or beeswax. Rev 1.0 © 2024 Friday Furniture LLC...
