Item
Stainless steel nut M6
Lock washer 6 mm Ø
Flat washer 6 mm Ø
Flat washer 6 mm Ø Extralarge
Mast-Boom aluminum plate
Mast-Boom isolator in Delrin
Section boom 25 mm Pre-assembled
Section boom 30 mm
Inbuss key
Rope
LOG50JXX1300
Q.ty
8
Stainless steel bolt M3 x 6 mm
8
Stainless steel bolt M4 x 6 mm
8
Stainless steel bolt M6 x 65 mm
2
U Bolt M6 x 60 mm & plate
1
Stainless steel parker screw 2.9 x 6.5
2
Semi - element Ø 10 mm
150 cm
1
Semi - dipole Ø 8 mm
150 cm
1
Semi - dipole Ø 5 mm
2.5 mm
1
Semi - dipole Ø 4 mm
2
IØJXX may vary them without any warning
Made in Italy
www.iØjxx.com
IØJXX
Via della Fattoria di Torrenova 36 - 00133 Roma - Italy
( +39 (0) 6 - 27858223 È+39 3282899664
www.i0jxx.com - info@i0jxx.com
Item
di Donzello Rosanna
VAT number: IT09527381009
Q.ty
2
4
2
3
38
10
8
18
2
Advertisement
Related Manuals for I0JXX LOG50JXX1300
Summary of Contents for I0JXX LOG50JXX1300

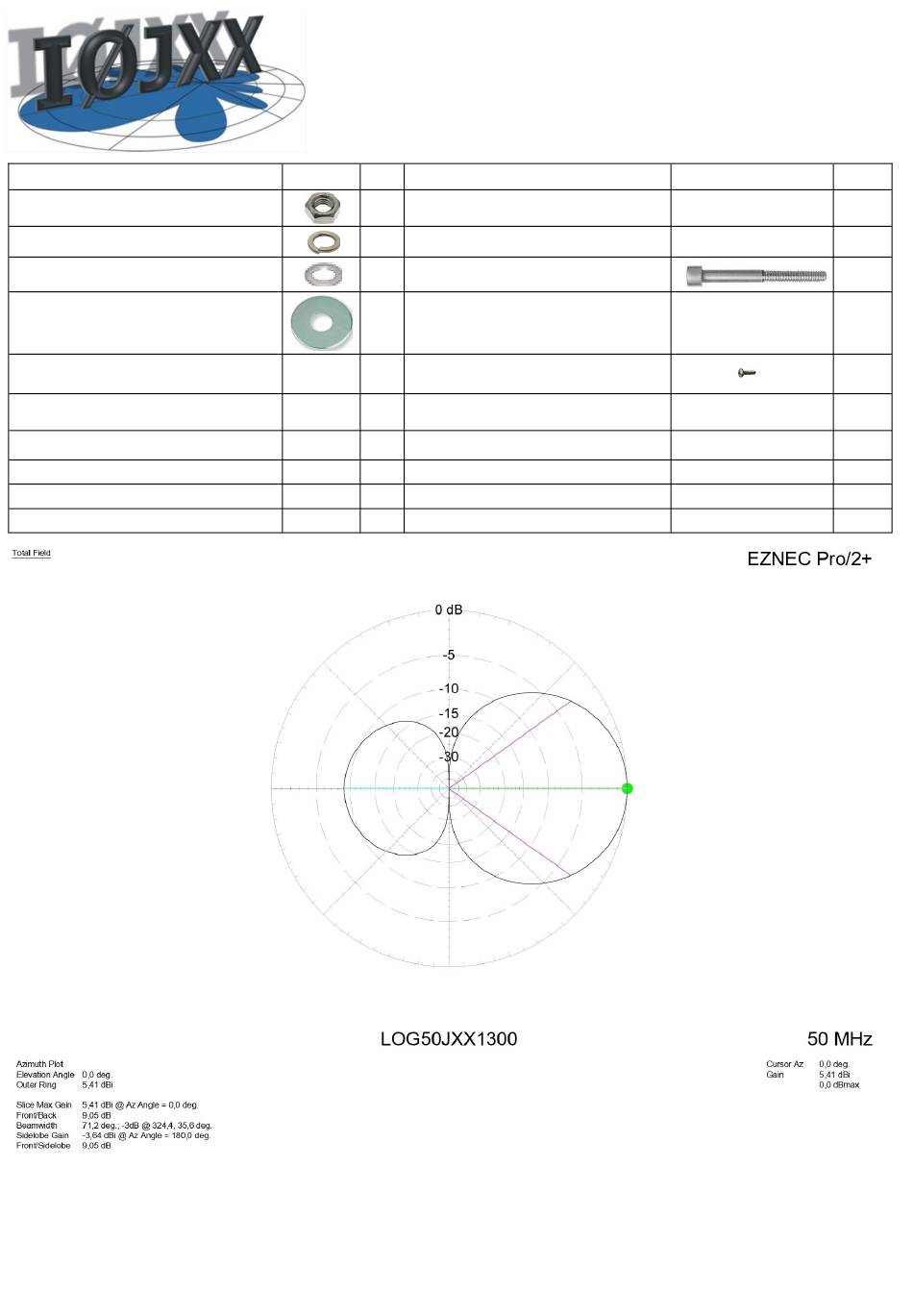

- Page 1 IØJXX di Donzello Rosanna Via della Fattoria di Torrenova 36 - 00133 Roma - Italy ( +39 (0) 6 - 27858223 È+39 3282899664 VAT number: IT09527381009 www.i0jxx.com - info@i0jxx.com LOG50JXX1300 Item Q.ty Item Q.ty Stainless steel nut M6 Stainless steel bolt M3 x 6 mm Lock washer 6 mm Ø...
- Page 2 ASSEMBLY INSTRUCTIONS Join the two sections of the boom, front and rear, as shown in the figure IØJXX may vary them without any warning Made in Italy www.iØjxx.com...
- Page 3 ASSEMBLY INSTRUCTIONS Insert the elements to grow, fixing them with stainless steel self-tapping screws 2.9 x 6.5 mm For fixing the boom - mast plate respect the sequence as shown in the figure. Position the plastic part cor- rectly, so as to keep the two sections isolated, upper and lower of the boom and at the same time isolated from...
- Page 4 ASSEMBLY INSTRUCTIONS Fix the lanyard so as to support the antenna in a horizontal position, use the eyebolts placed on the boom and the other end tie it on the smooth part of the U Bolt IØJXX may vary them without any warning Made in Italy www.iØjxx.com...
