Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Corriveau Manuals
  4. Tent
  5. B121230-MOS
  6. Assembly instructions manual

Corriveau B121230-MOS Assembly Instructions Manual

12' x 12' mosquito net with sliding rails
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Assembly instructions

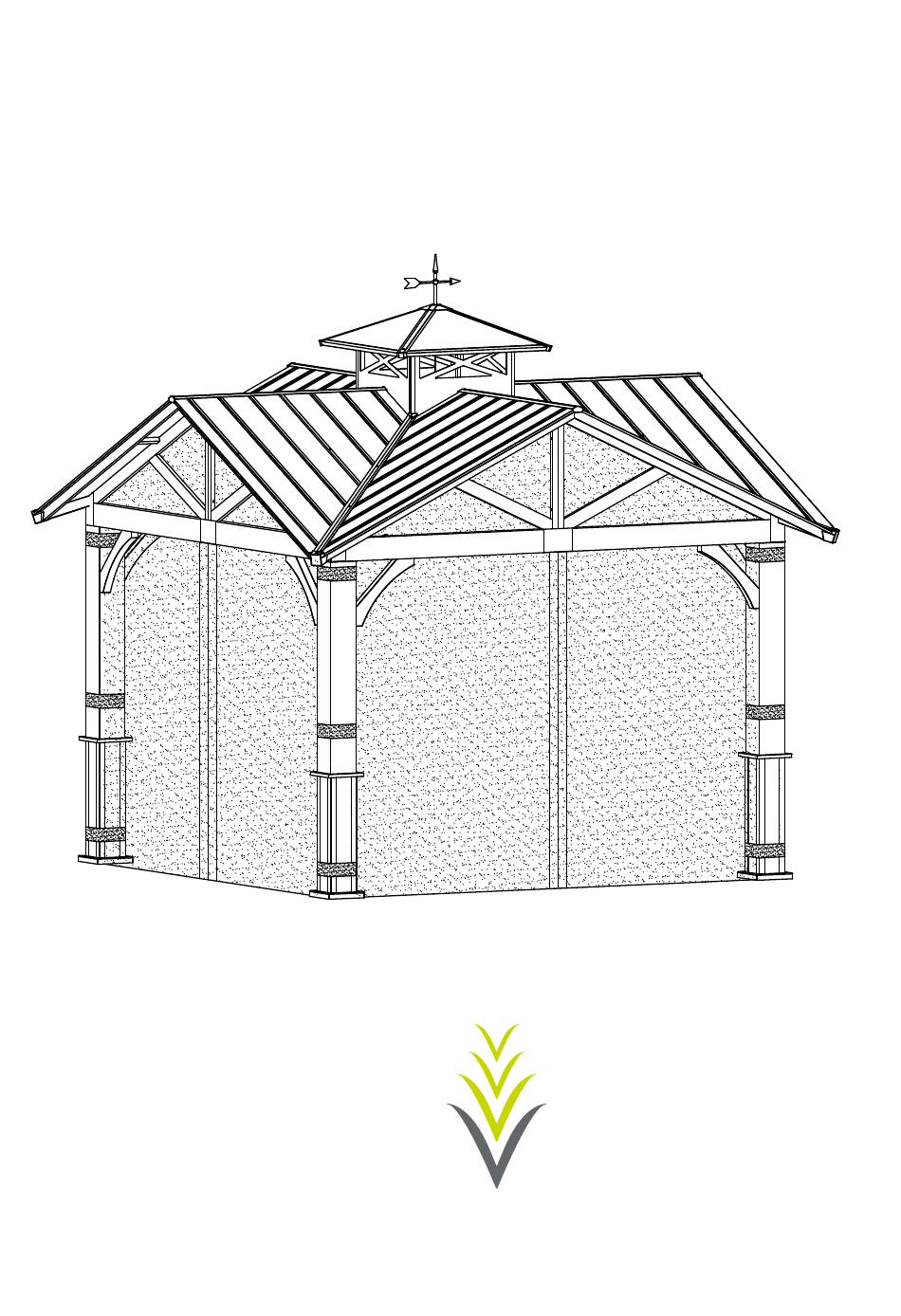

12' x 12' Mosquito net with sliding rails
B121230-MOS
MEUBLES DE JARDIN
CORRI EAU
OUTDOOR FURNITURE
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the B121230-MOS and is the answer not in the manual?

Questions and answers

Related Manuals for Corriveau B121230-MOS

Summary of Contents for Corriveau B121230-MOS

  • Page 1 Assembly instructions 12' x 12' Mosquito net with sliding rails B121230-MOS MEUBLES DE JARDIN CORRI EAU OUTDOOR FURNITURE...

  • Page 2: Important Notice

    Important notice Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. Each of the recommendations must be followed to ensure the utmost solidity. Security Rules Warning: Keep flame and heat sources away from the gazebo fabric. The fabric may burn or melt at direct contact or prolonged exposure with a source of heat.
  • Page 3 ●Mosquito net and curtains (optional) must be removed from the unit in freezing period. ●Anchoring bolts or other anchoring devices are not supplied. ●Keep away from any electric installation or transportation device. ●Always recommended to keep assembly manual for further reference. Care Avoid using a pressure washer.

  • Page 4: Parts List

    PARTS LIST: Drawing Description Q'TY Top mosquito net Top mosquito net’s Velcro Triangular mosquito net Triangular mosquito net’s Velcro-A Triangular mosquito net’s Velcro-B Sliding rails Screw Mosquito net...
  • Page 5 #2 #2 Step 1 : Install the four top mosquito net’s Velcro (#2) around the inside of the air vent. Thread the hook of the air vent through the middle hole of the top mosquito net (#1). Attach the top mosquito net (#1) onto the four top mosquito net’s Velcro (#2)
  • Page 6 #4,#5 Step 2 : Install the triangular mosquito net’s Velcro-A (#4) onto the two roof tubes of each triangular roof. Install the triangular mosquito net’s Velcro-B (#5) onto the beam of each triangular roof. The Velcro (#5) should cover the length of the beam. Attach the triangular mosquito net (#3) onto the triangular roof.
  • Page 7 X 16 Step 3 : Install the sliding rails (#6) onto the beams on each side of the Gazebo. Tight up the screws (#7) to make sure the sliding rails (#6) are fixed.
  • Page 8 Step 4 : Hang the mosquito net (#8) by using the 4 hooks on each corner of the mosquito net (#8) onto each corner posts. Hang the mosquito net (#8) by using the hooks of the sliding rails (#6). Attach the sewed Velcro (9 total) of the mosquito net (#8) around each post.
