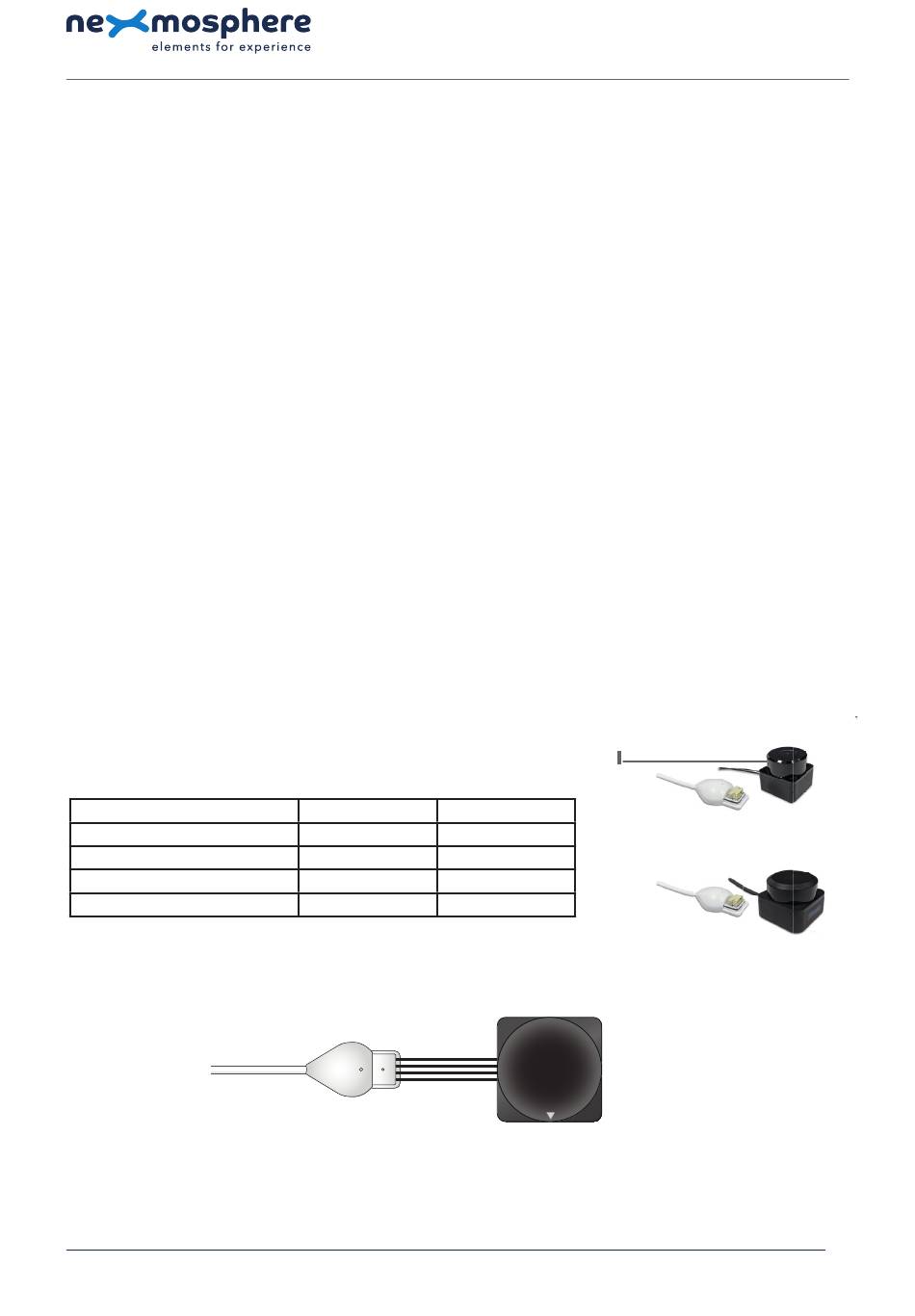

1. General
The XQ-L Series Lidar sensors create a virtual 2D surface in which multiple detection areas ("Activation zones") can be defi ned.
The sensor detects when an object enters or exits an Activation zone. With this functionality, a broad variety of applications
can be created, such as Lift&Learn, interactive videowalls and Approach&Learn. This document provides explanation of the
available functionalities and instructions on how to install and integrate the sensor into your digital signage installation.
The information in this document is created for users who are familiar with the Nexmosphere API and are able to control a
basic setup with a Nexmosphere API controller. If this is not the case yet, please read the general documentation on the
Nexmosphere serial API fi rst.
2. Product overview
The XQ-L series Lidar sensors are available in 2 diff erent models, the XQ-L2 and XQ-L5.
The sensor specifi cations are as follows:
Field of View angle
Field of View radius
Max. number of Activation zones
Lifetime (hours)
The XQ-L series Lidar sensors consists out of 2 parts: the Lidar sensor itself and the sensor interface.
sensor interface
Internally, the Lidar sensor has a fast-rotating Infrared laser component which generates a high volume of distance data
samples through Time-of-Flight measurements. With this internal data, the sensor interface creates a 2D view of the sensor
environment and can accurately determine if an object enters or exits a specifi c area within it's detection fi eld, based on X-Y
coordinates.
N e x m o s p h e r e
L e H a v r e 1 3 6
5 6 2 7 S W E i n d h o v e n • T h e N e t h e r l a n d s
XQ-L2
360°
5 meter
24
10K
T + 3 1 4 0 2 4 0 7 0 7 0
E s u p p o r t @ n e x m o s p h e r e . c o m
XQ-L SERIES | LIDAR SENSOR
XQ-L5. .
XQ-L5
360°
10 meter
24
45K
lidar sensor
© 2024 Nexmosphere. All rights reserved. v2.0 / 03-24
All content contained herein is subject to change without prior notice
PRODUCT MANUAL
1
1
2
2
4
6
8
8
8
8
10
11
XQ-L2
XQ-L5
1
