Summary of Contents for SteamSpa SC-SS0014-GS

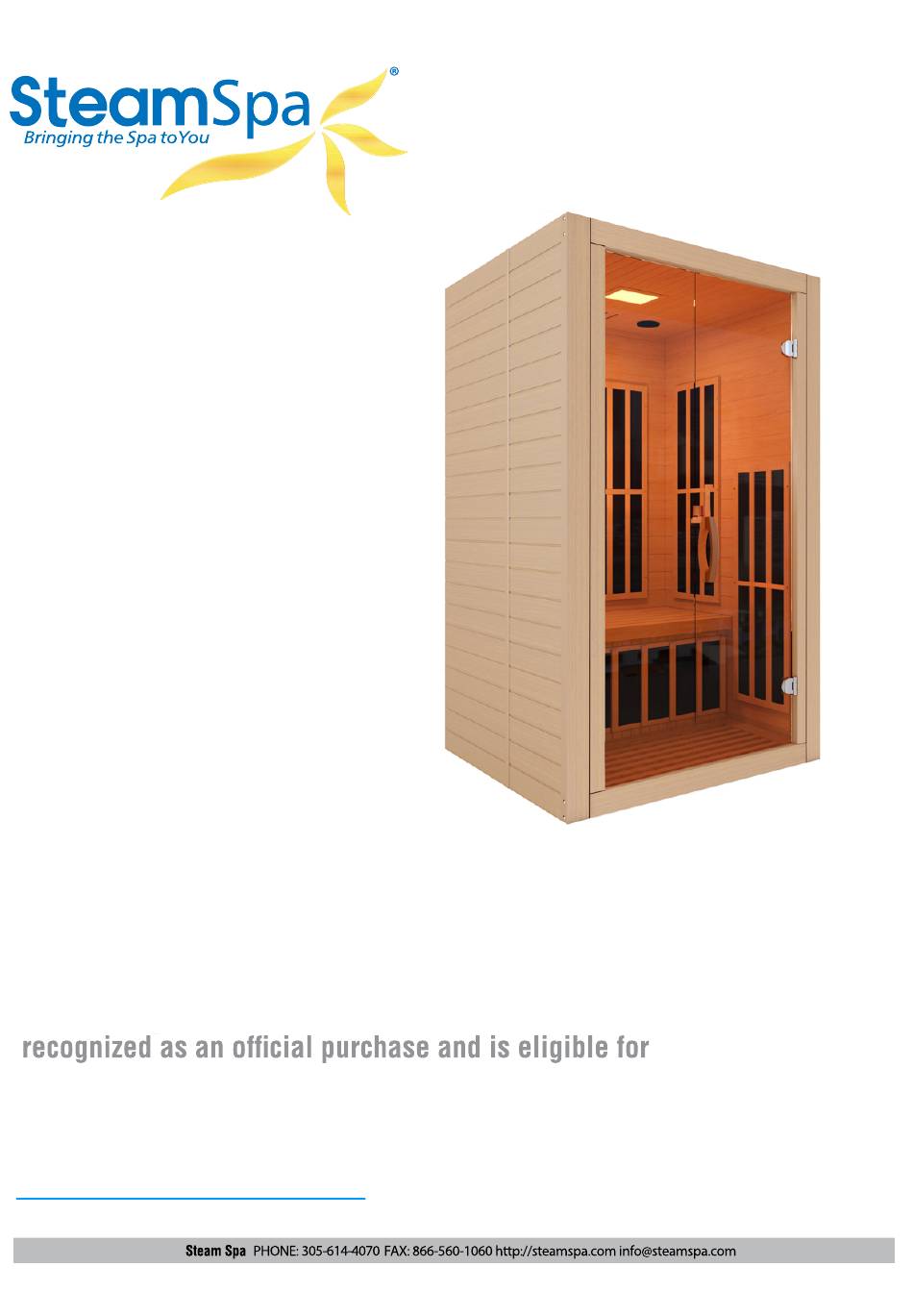

- Page 1 INFRARED SAUNA USER GUIDE MODELS SC-SS0014-GS DON’T WAIT! REGISTER NOW! Register your product within 90 days to ensure your sauna is warranty coverage. Mail in the completed registry card or register online at www.SteamSpa.com/register. v1.1...
- Page 3 IMPORTANT: Your warranty will not be recognized unless this card is fully completed and returned or online registration is completed. Register online at www.SteamSpa.com/register. You will be asked to fill out the same information you would in the registration card. Registering online is fast, secure and ensures we receive your information.
- Page 4 IMPORTANT WARRANTY INFORMATION! WARRANTY AND REPAIR GUIDELINES SteamSpa warrants that this sauna unit will be free from manufacturer defects and malfunctions. For terms and conditions please refer to latest SteamSpa Warranty at www.SteamSpa.com/warranty. Please be advised failure to comply with any of the following will VOID the warranty.
-
Page 5: Table Of Contents
TROUBLE SHOOTING ..........................18 IMPORTANT! Malfunctions, damages, part replacements and labor resulting from improper installation, ● negligence, or lack of care and maintenance will NOT be covered under the SteamSpa Warranty. PRIOR TO INSTALLATION,ENSURE THAT THE PRODUCT IS POWERED OFF. ● Page 2... -
Page 6: User Instructions
Thank You for choosing SteamSpa for health, beauty and relaxation. Now you can enjoy your own private sanctuary in the comfort of your own home. USER INSTRUCTIONS 1. Check for visible damages upon delivery of sauna. Any damages to packaging should be reported immediately to shipping company delivery representative and SteamSpa’s Customer Service Dept. - Page 7 WARNING Please read carefully before using sauna ● Children must use the sauna under the care of an adult. For safety, do not play with it. Do not insert objects such as fingers or sticks into the heating tube plate to prevent danger. ●...
-
Page 8: Assembly Tips
ASSEMBLY TIPS Before you begin, read all assembly instructions and safety warnings carefully. ● This sauna requires at least 2 adults to complete assembly. ● Remove all of the contents from the package and check that you have all parts shown in the compoment list. ●... -
Page 9: Specificatons
SPECIFICATIONS SPECS SC-SS0014-GS Assembled Tent Dimensions(L x W x H) 46" x 40" x 74.8" ( 1168 x 1016 x 1900mm ) Power 1725 Watts Maximum Temperature 151°F ( 66°C ) Voltage 120V AC / 60Hz Function Control panel with temp adjust and timer, Audio with Bluetooth/AUX IN, Color LED light, Oxygen ionizer... -
Page 10: Components
COMPONENTS 1 Duster cover 2 Top board 3 Ventilation 4 Light 5 Control panel 6 Front board 7 Door glass 8 Handles with screw (x2) 9 Hinge 10 Left board 11 Control box 12 Back board 13 Right board 14 Bench 15 Bench front board 16 Bench heating unit 17 Foot rest board... -
Page 11: Installation
INSTALLATION NOTICE: Please read WARNING and ASSEMBLY TIPS section before installing the sauna. The figures and drawings are used for the assembly guide only, parts and accessories may not be consistent with your sauna. Page 8... - Page 12 INSTALLATION 1. Find a location to place the Bottom board [18], see ASSEMBLY TIPS for details. Then Attach the Front board [6] to the Bottom board by lining up the Front board with the edge in front of the Bottom board. (Fig 1) Fig 1 2.
- Page 13 INSTALLATION 3. Attach the Right board [13] to the Front board by aligning the buckles and sliding the Right board down, locking it into place. (Fig 3) Fig 3 4. Attach the Left board [10] to the Front board by aligning the buckles and sliding the Left board down, locking it into place.
- Page 14 INSTALLATION 6. Slide the Bench front board [15] into the grooves on Left and Right board at an angle as shown (Fig 6), connect the power cable as shown (Fig 7). Fig 7 Fig 6 7. Put the Bench [14] over the Bench front board and push it forward to Back board, fix Bench with Self-tapping screw(5*40).
- Page 15 INSTALLATION 8. Lead the wires in the sauna to the top, Install the Top board [2] at the top of the sauna (Fig 9), and let wires through the groove of Top board. Fig 9 Every connection cable or plug has a corresponding pair, find male and female with the same label (like “Control”) and plug in correctly, then connect electrical cord from heating panel to Control box [11], HT1 for Left board, HT2 for Back board, HT3 for Right board, HT4 for Bench heating unit [16], HT5 for Bottom board.
- Page 16 INSTALLATION 11. There are some holes at the edges around the Top board, use Self-tapping screws (5*40) to fix the Top board. (Fig 12) Fig 12 12. Put the Duster cover [1] on the Top board, then fix the Duster cover with self-tapping screws (3*18) at the four corners.
- Page 17 INSTALLATION 14. Enter the sauna and remove the protective covering from the temperature sensor, ensurethe sensor is vertical and pointing downward. (Fig 15) Fig 15 15. (Optional) You can fix the MP3 shelf on the Left board near the AUX Input on ceiling with self-tapping screw (3.5*25).
-
Page 18: Instructions For Use
INSTRUCTIONS FOR USE Congratulations, the assembly of the sauna is now complete, Please review instrutions, warnings & suggestions before using. Temp display screen Display temp in sauna room. Temperature setting button Press the button to adjust the heater temperature. Temperature range is 77-151°F [ 25-66°C ]. 3 Temp unit switch button Press the button to switch temp unit display at screen. - Page 19 INSTRUCTIONS FOR USE Oxygen ionizer 1. Press ion button to turn ON/OFF ion function. 2. Press ozone button to turn ON/OFF ozone function. ion button ion indicator ozone indicator ozone button Color light remote control NOTICE: Switch on the color light on control panel before using remote control. Power button Press the button to switch color light ON/OFF.
-
Page 20: Suggestions
SUGGESTIONS Before using 1. Please be sure to follow the instruction manual before operations. 2. A hot shower or bath prior to the start of your sauna session, will help promote perspiration. During using 1. STAY HYDRATED! Remember to drink plenty of water before, during and after your sauna. 2. -
Page 21: Trouble Shooting
Wire is not well connected. Check the connecting wire. Light is not working. The light is damaged. Contact SteamSpa service. Contact SteamSpa service to replace The heater is broken. heater. Infrared Heater not The wire junction or the Check and tighten the connection.
