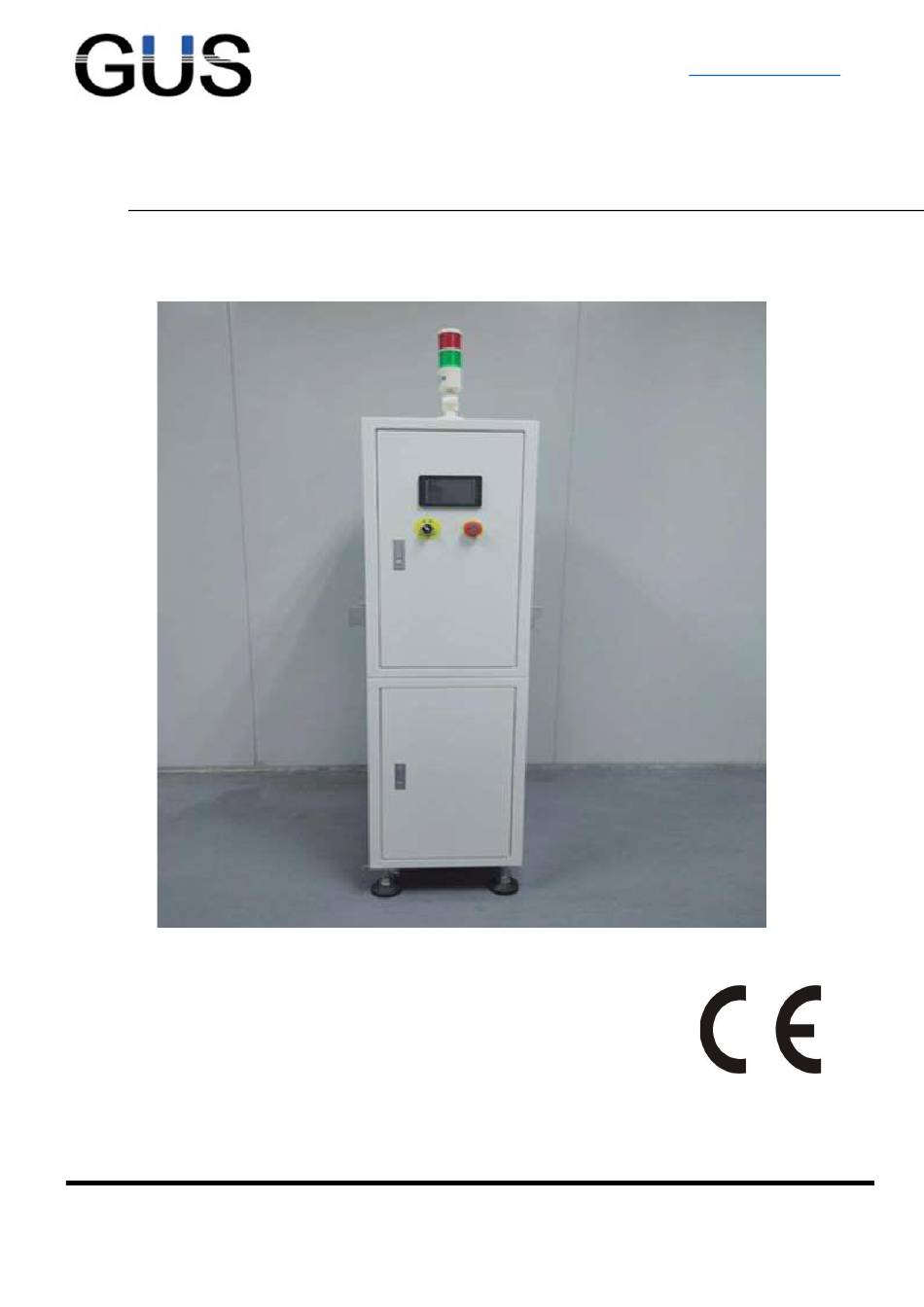

- Page 1 WWW.GUS-SMT.EU Mini Loader User manual * Read this user manual carefully before using this equipment.
-
Page 2: Table Of Contents
WWW.GUS-SMT.EU table of Contents Safety Precautions……………………………………………… 1. Application introduction………………………………………… 2. Principle of structure………………………………………… 3. Equipment Features………………………………………… 4. Operating instructions………………………………………… 5. SMEMA signal wiring…………………………………… 6. maintenance ………………………………………… 7. Common troubleshooting………………………………………… 8. Warranty Regulations…………………………………………... -
Page 3: Safety Precautions
WWW.GUS-SMT.EU Safety Precautions Please read before using aspects of personal safety • Before starting the equipment, it should be determined whether the field personnel are in a safe position. • Maintenance work is prohibited during equipment operation. • When the equipment is being maintained, it is necessary to determine whether the power switch such as the power switch or air source is turned off before maintenance work can be performed. -
Page 4: Application Introduction
• G-M350 2) structure principle The GUS-M350 is a PCB loader with a small footprint. The boards can be loaded by hand after stencil printing the solder paste. The operator can continuously load boards where the GUS-M350 releases the boards 1 at a time on request from the downstream machine. -
Page 5: Operating Instructions
WWW.GUS-SMT.EU 4) Operating instructions When the power switch is turned ON, the system will enter the main page on the HMI unit. On the left side under Monitor the PLC information is displayed. Showing all the input signals X0…X7 and all output signals Y0…Y7... -
Page 6: Smema Signal Wiring
WWW.GUS-SMT.EU 5, SMEMA signal wiring About SMT connection station SMEMA wiring: SMEMA Signal wiring method and principle Front（Host computer）: 1, 2 lines-seek board signal from the front machine 【Line 1: Black, Line 2: Red】0V local seeking board 3, 4 lines-receive the signal from the front board X4 【Line 3: Yellow, Line 4: Green】0V... -
Page 7: Maintenance
WWW.GUS-SMT.EU 7, maintenance In order to ensure the normal operation of this equipment and avoid malfunctions, the equipment needs to be regularly inspected for safety and lubricated (small maintenance every 2 weeks; major maintenance every 4 weeks) 1) Lubricate the lead screw, guide rods, and transmission bearing. -
Page 8: Common Troubleshooting
WWW.GUS-SMT.EU 8, Common troubleshooting Green light (long light): automatic control Yellow light (long light): manual control Red light (flashing): alarm status 1. the rack transport timeout! After processing, press the “Reset” button to continue running! 2. lifting platform lift timeout! After processing, press the “Reset” button to continue running! 3. -
Page 9: Warranty Regulations
WWW.GUS-SMT.EU 9, Equipment Warranty Regulations In accordance with the industry practice in machinery and equipment (SMT peripherals), all our equipment is guaranteed for one year from the time of delivery. During the warranty period, customers can contact the company for warranty items according to invoices or related documents. The following conditions will not be covered by the warranty : Faults caused by natural disasters (such as earthquakes, fires, floods, lightning strikes, etc.)
