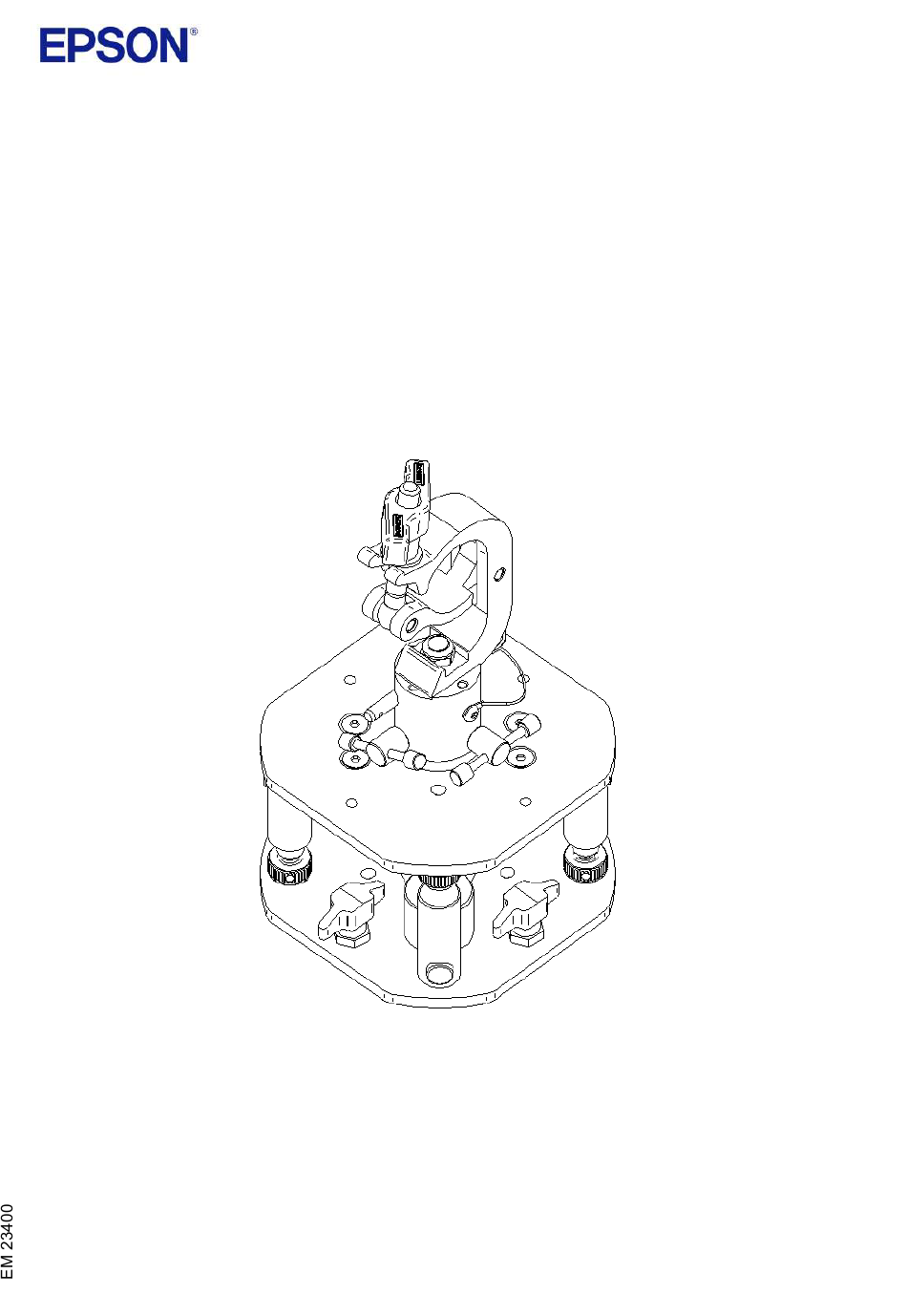

- Page 1 User's Guide ELPMB81 Tilt Adaptor V12H006AT0 Contact details: Web: www.euromet.com Phone: +39 071976444 Email: info@euromet.com...

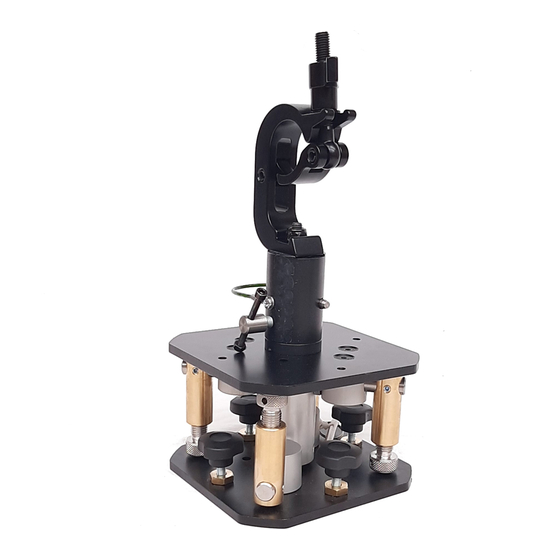

- Page 2 1. General information and compatibility The ELPMB81 Tilt Adaptor is an option that makes it possible to hang the ELPMB76 or ELPMB84 from a truss and provide projection orientation adjustments: by tilting +/-10° on 2 rotation axes (pitching, rolling); by rotating 360° (yaw).
- Page 3 • Place the stacking frame on an even surface with the base plate turned upwards; Apply the ELPMB81 Tilt Adaptor to the base plate of the frame and screw the thumb • screws (015) into the 4x female M8 threaded holes with 100x100mm distance (tighten the 4 thumb screws manually);...
- Page 4 Place the ELPMB78 Portrait Adaptor and included hexagon plate on the bottom of the • ELPMB81. Fix the plate in place with 100x100mm spacing in the 4x female M8 holes; Position the ELPMB78 portrait adaptor so that the threaded holes align with the •...
