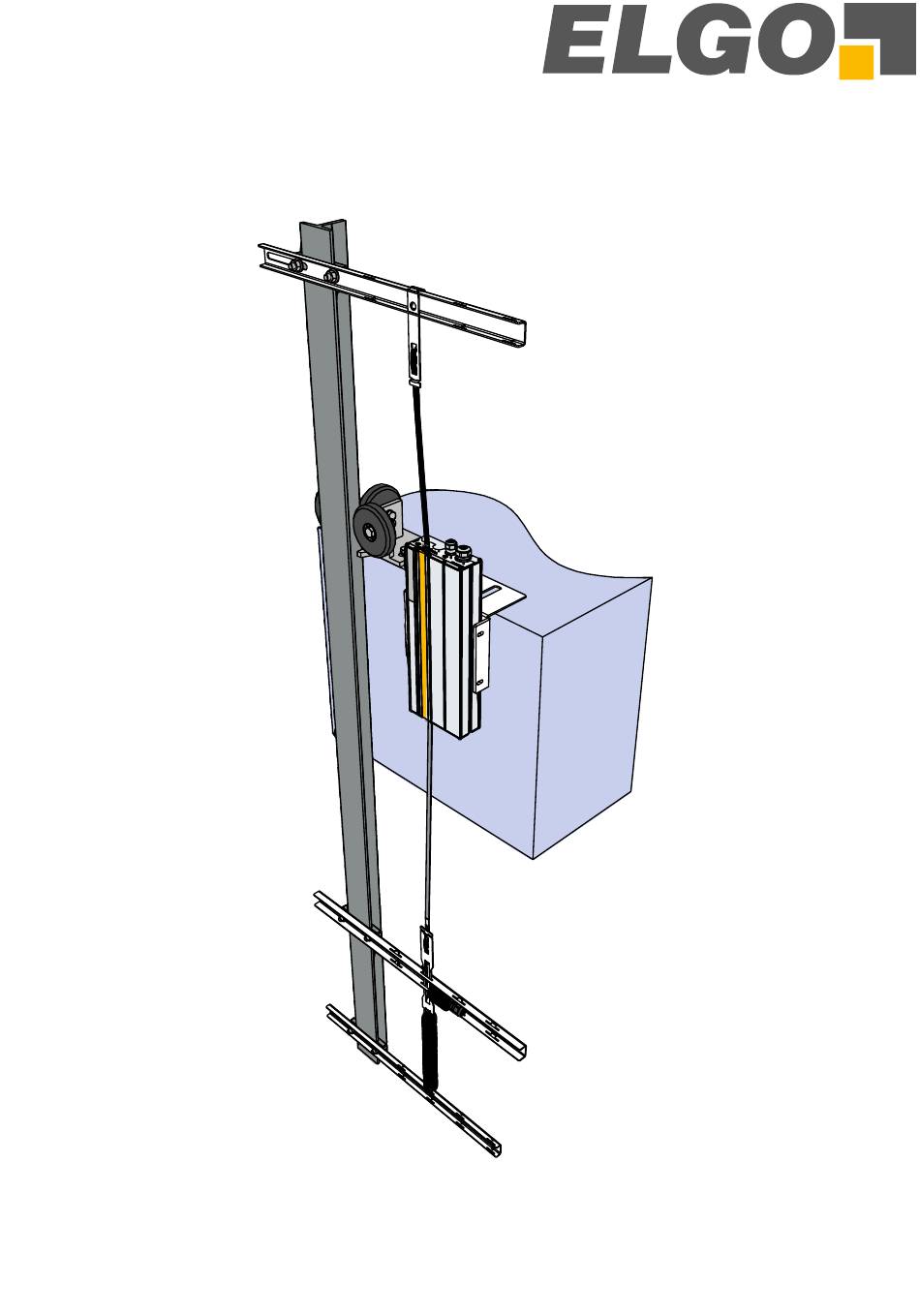

- Page 1 D-105162 / Rev. 0 / 07.02.2020 799000749 Mounting Instructions LIMAX33CP with Installation Kit and Tape Detection LIMAX33CP with S-RMS2...
-
Page 2: Table Of Contents
1 Contents Contents ..........................2 Kit Components ........................ 2 About this Document ......................3 Installation Procedure ...................... 4 Magnetic Tape Cleaning ....................12 Kit Components Kit Components Crossbeam (2x) Crossbeam for safety position detector (1x) Tape fixture for position detector (1x) Tape fixture (1x) Spring (1x) Cable ties (2x) -
Page 3: About This Document
3 About this Document Function These mounting instructions provide all the information you need for mounting, commissioning, the safe operation and dis- assembly of the LIMAX S-RMS. The mounting instructions must be available in a legible condition and complete version in the vicinity of the device. -
Page 4: Installation Procedure
4 Installation Procedure Shaft head Fig. 1 Fig. 2 Fig. 1 & 2: Install one crossbeam in the shaft head by using the rail clips Make sure that the clips screws are well tightened (min. 45 Nm), so that the crossbeam does not move. Fig. - Page 5 Fig. 5 Fig. 6 Fig. 5 & 6: This step must be done with the tape fixture inside the crossbeam . Thread the tape through the tape fixture and back down, as shown (FIG 6). Mind the orientation of the tape (FIG 7) – the magnet side must face the sensor body later on. Basically, the fixture works like a self-locking belt.
- Page 6 Fig. 9 Fig. 10 Fig. 9 & 10: Now install the second crossbeam into the shaft bottom with a distance of 295 mm to the tape fixture for presence detector Make sure that the screws are well tightened with min. 20 Nm, so that the crossbeam does not move.
- Page 7 Fig. 13 Fig. 12 Fig. 12: Fig. 13: Mount pre-installed crossbeam fort the presence detector Insert the tape fixture into the crossbeam for the presence the elevator rail. Fasten the screws only so tight that the detector . Use the same slot, where the position detector crossbeam can still be moved.
- Page 8 Fig. 16 Fig. 17 Fig. 16 & 17: Installation of the mounting angle for LIMAX33 CP Fig. 18 Fig. 19 Fig. 18: Remove the guide rail holding plate. Fig. 19: Remove the guide rail. Fig. 20 Fig. 21 Fig. 20: Remove the underlay. Fig.
- Page 9 min. 15 mm Fig. 23 Fig. 22 Fig. 22 & 23: Move the MW to the cabin till you reach a gap of minimum 15 mm between magnetic tape and sensor Fig. 24 Fig. 25 Fig. 24: Fig. 25: Insert the underlay. Insert the magnetic tape in the guide rail of the sensor Fig.
- Page 10 min. 2 cm Fig. 28 Fig. 29 Fig. 28: Fig. 29: Enforced contact between steel tape and polymer guide. External magnetic fields shall not exceed 64 mT (640 Oe; 52 kA/m), otherwise the magnetic coding will be damaged or de- stroyed.
- Page 11 Tape is skewed Tape is skewed Tape is flat in in the guide in the guide the guide Fig. 31: Assessment of the guide rail of the tape in the sensor - twisted magnetic tape Tape is Tape is Tape is flat in skewed in the skewed in the the guide...
-
Page 12: Magnetic Tape Cleaning
