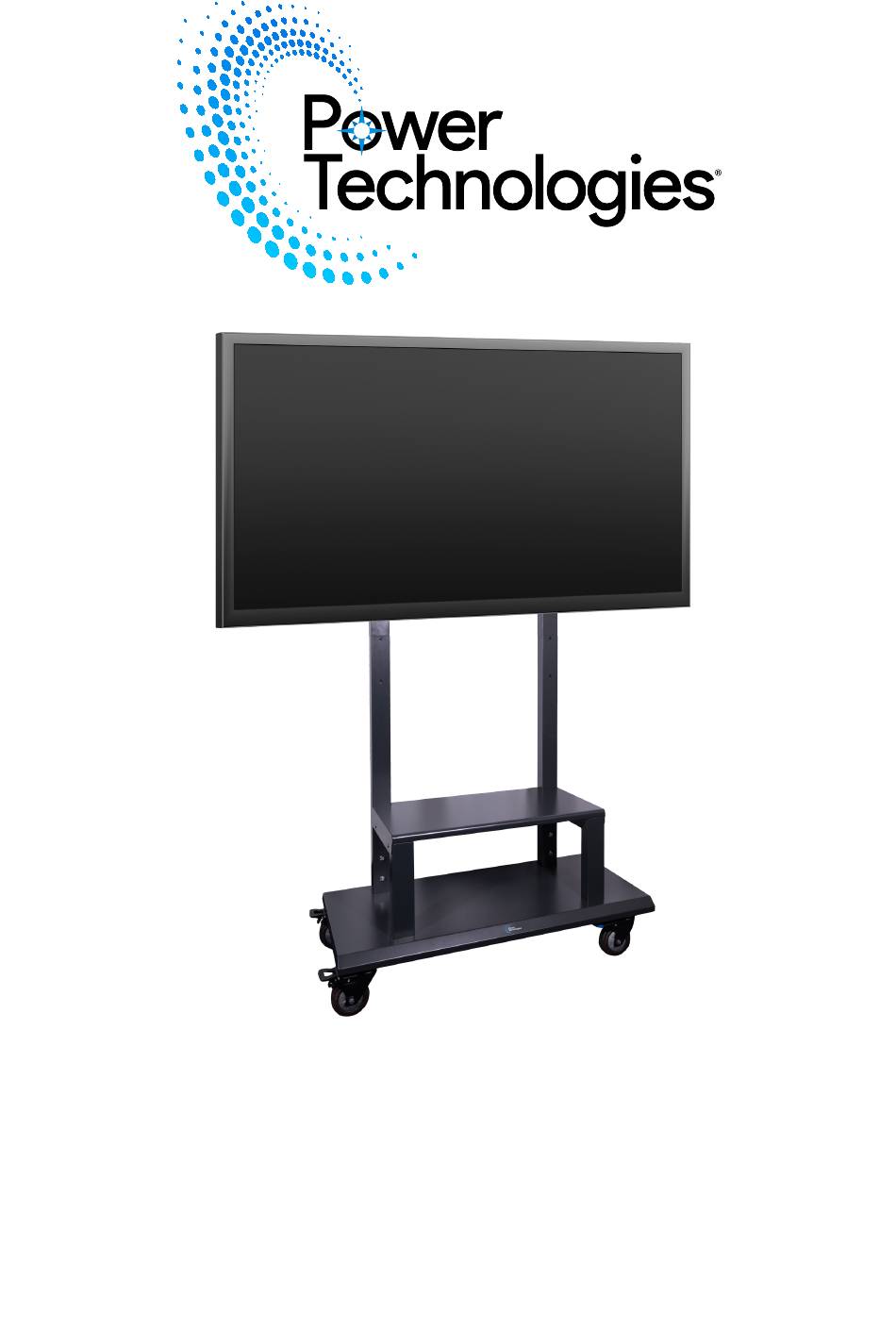

  • Page 1 AC-STAND-75 INTERACTIVE FLAT PANEL STAND/CART USER MANUAL...

  • Page 2: Product Information

    Product Information Product Information The AC-STAND-75 is designed to fit interactive flat panel displays up to 75 inches. Please review this guide to learn how to safely use your product. Specifications: Model AC-STAND VESA Dimensions 200x200, 400x200, 400x300, 400X400, 600X400, 800X400...
  • Page 3 Product Information Product Information The AC-STAND-75 is designed to fit interactive flat panel displays up to 75 inches. Please review this guide to learn how to safely use your product. Mounting Strips Back Plate Middle Shelf Uprights Front View of Stand 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com...
  • Page 4 Directional Caster Wheels Base with Casters Brake/Lock Caster Wheels Right View of Stand panel not included 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...

  • Page 5: Installation Instructions

    Do not use a box cutter. Step-3: Your Stand arrives in 1 box and contains 4 layers for ease of assembly. Layer 1 Layer 2 Layer 3 Layer 4 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...

  • Page 6: Identifying Parts

    4. Ensure no parts are missing. Backplate Left/Right Mounting Strip Hardware & Tool Left Upright Right Upright (holes face out) (holes face out) Base with Casters Middle Shelf Left/Right Upper Pillar 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 7 Step-3: Slide both left and right Uprights into the Base’s posts. Step-4: Loosely fit the screws connecting the left and right uprights to the base of the stand. Do not fully tighten hardware at this point. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 8 Step-6: Slide it in place so the notches are toward the long (back) edges of the Uprights. Step-7: Loosely fit the screws on the outside of the left and right uprights to connect the middle shelf. Do not fully tighten hardware at this point. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 9 Step-9: Fit them into the Uprights so the 4 holes are facing the sides. Step-10: Loosely fit the screws connecting the left and right upper pillars to the uprights. Do not fully tighten hardware at this point. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 10 Once the unit is in its desired position, extend the anti-tip support bar completely. Twist the Step-14: bar clockwise until it clicks into a locked position to secure and stabilize the unit. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 11 Starting from the top, working to the bottom, tighten all hardware with the provided hex Step-15: wrench. The Left and Right Mounting Strips are installed on your flat panel screen using your own Step-16: VESA mounting bolts and hung onto the Backplate. 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
  • Page 12 “With a simple release of the blue foot pedal, pedal, allowing you to navigate effortless with embrace a world of precision and grace in your unparalleled flexibility. swivel motion, making maneuvering a breeze.” 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...

  • Page 13: Safety Instructions

    For warranty claims, please have the following information ready, then visit : www.powertechnologies.com To create a help ticket. Serial Number: ------------------------------------------------------------------------------------ Charging System Type: ------------------------------------------------------------------------------------ Date Of Purchase: ------------------------------------------------------------------------------------ Reseller Name: ------------------------------------------------------------------------------------ PO Number: ------------------------------------------------------------------------------------ 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...

  • Page 14: Further Information

    Further Information Further Information For further information on this product and others, contact Power Technologies at. Power Technologies 42035 Zevo Dr Temecula, CA 92590+ 888.650.4488 support@powertechnologies.com www.powertechnologies.com 42035 Zevo Drive Temecula, CA 92590 | 888-650-4488 | www.powertechnologies.com PT-AC-STAND-75 Manual_Rev2024-04...
