Summary of Contents for RANAR DX Series

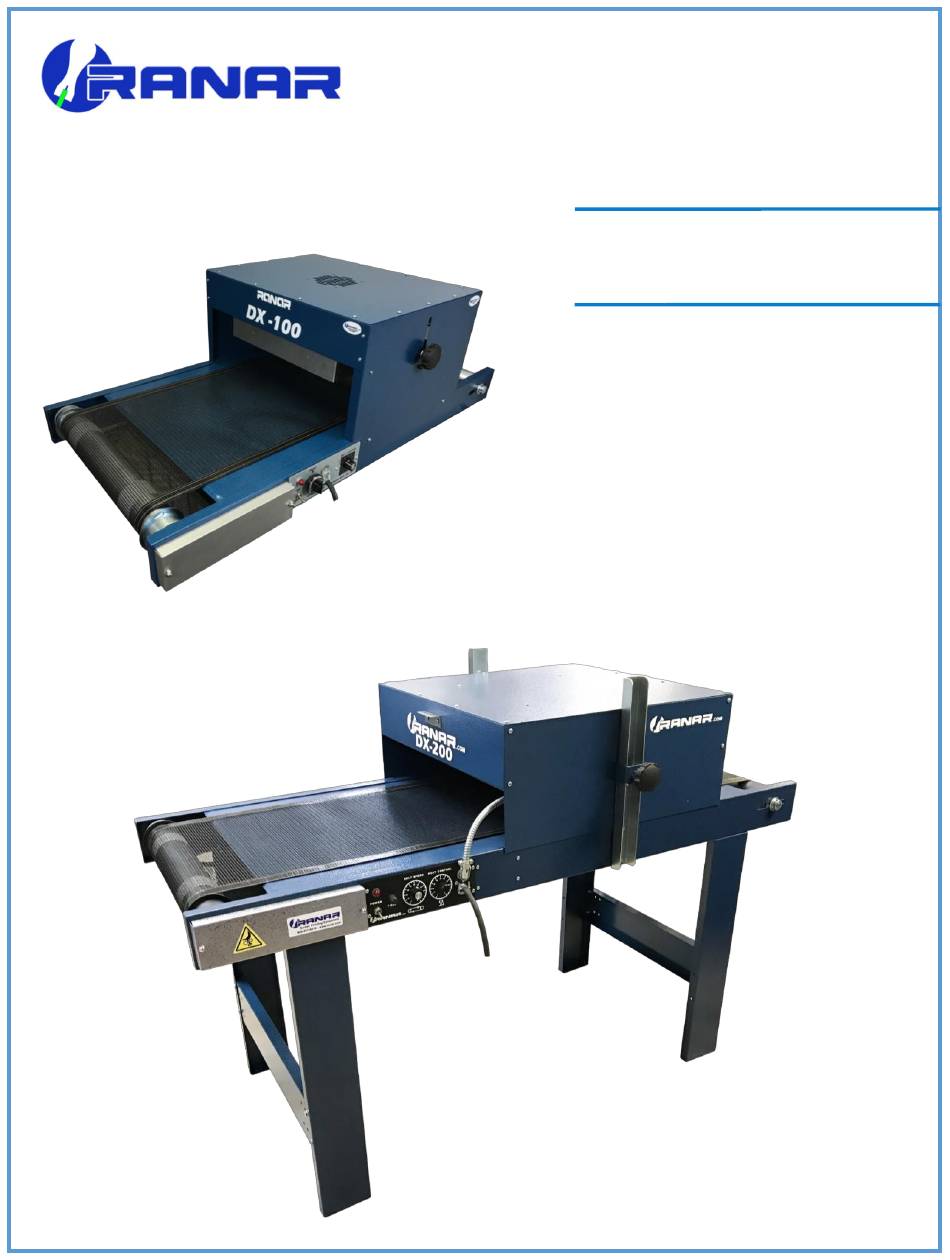

  • Page 1 DX Series Dryer Manual Manufactured by: Ranar...

  • Page 2: Warranty

    1 year for electrical parts. WARRANTY IS NON TRANSFERABLE. This is parts only, warranty labor not included. Parts must be returned to Ranar for inspection at customer’s expense. Ranar covers shipping within the continental USA. UPS Ground service only, expe- dited service available at customer’s expense.

  • Page 3: Safety Information

    Safety Information INSTALLING, OPERATING AND SERVICING RANAR HEATING DRYING EQUIPMENT • Please read all information before operation • Keep children and pets away from the Dryer when in use. • • • • Keep flammables such as paint and solvents away from dryer.
  • Page 4 DX-100 ASSEMBLY INSTRUCTIONS Step 1 — Attach side panels to conveyor using 2 #12 sheet metal screws Step 2 — Attach second side panel using 2 #12 sheet metal screws Step 3 — Use 10-32 nut and screw to attach conduit to side panel Step 4 —...
  • Page 5 DX-200 & DX-300 Assembly Step 1) After removing the dryer out of the shipping carton, lay the unit on its side so the bottom is accessible for you to work on it. Step 2) Identify your four (4) legs and two (2) braces. Your 4 legs (left - below) will have 2 holes on the top for attaching to unit, and 1 hole on the bottom for optional casters.

  • Page 6: Operation

    OPERATION The DX- Series Scamp Dryer is designed to cure plastisol ink on textiles. The infrared panel requires about 15 minutes to reach full heat. The heater surface at full temperature is approximately 700° F and will heat the surface of work passing on the belt to a desired temperature depending on: CURE TEMPERATURE IS PRODUCT OF: 1.

  • Page 8: Unit Specifications

    Unit Specifications WARNING!! For 125v units: Do not change the NEMA 5-20P 125v-20amp plug without consulting a certified electrician. Before use verify that you have the proper wall receptacle, breakers, and wiring necessary to operate this unit. Do not attempt to bend or twist horizontal prongs into vertical position or otherwise alter or modify plugs to fit into an unintended receptacle.

This manual is also suitable for:

Dx-100Dx-200Dx-300
