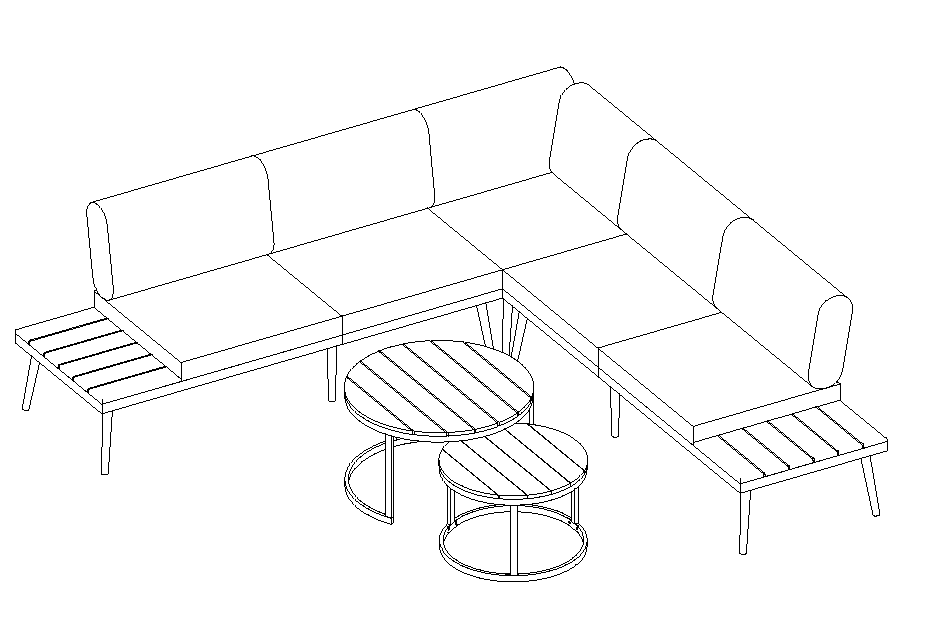

Corner sofa set

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the HWC-H54c and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for heute wohnen HWC-H54c

  • Page 2 CORNER SOFA SET 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. Place the item on a flat ground to adjust and make sure it remains stable. Tighten up all screw with tools gradually. If screw are not aligned with holes during assembly, please loosen all the other screws to 50% and continue the assembly process.
  • Page 3 Part List : A x1 B x1 C x3 D x1 E x1 Big Table Top Small Table Top Small Table Leg Big Table Leg Side Big Table F x3 G x1 H x1 Seat Right Bench Seat Left Bench Side Small Table I x1 J x6...
  • Page 4 STEP 1: Connect The Big Table Top (A) & Side Big Table STEP 2: Connect The Part from Step 1 & Big Table Leg (B), (C), tighten Bolt (1), Flat Washer (3) with Allen Key (6). tighten Bolt (1), Flat Washer (3) with Allen Key (6). 100% STEP 3: Put the Big Table upright and make sure all legs STEP 4: Connect The Small Table Top (D) &...
  • Page 5 100% STEP 5: Connect The Part from Step 4 &Small Table Leg (E), STEP 6: Put the Small Table upright and make sure all legs tighten Bolt (1), Flat Washer (3) with Allen Key (6). are level, then firmly tighten Bolts with Allen Key (6) 100% STEP 7 Connect The Part Right Seat Bench (G) &...
  • Page 6 STEP 9: Put the Right Bench upright and make sure all legs are STEP 10: Connect The Part Left Seat Bench (H) & Side Leg Sofa (K), level, then firmly tighten Bolts with Allen Key (6) and Put to Cover (5). Middle Leg Sofa (H), tighten Bolt (1), Flat Washer (3) with Allen Key (6).
  • Page 7 STEP 13: Connect The Part Corner (I) & Side Leg Sofa (K), STEP 14: Connect The Part STEP 13 & Back (J), tighten Bolt tighten Bolt (1), Flat Washer (3) with Allen Key (6). (2), Flat Washer (3), Vent Washer (4) with Allen Key (6). 100% STEP 15: Put the Corner upright and make sure all legs are level, then firmly tighten Bolts with Allen Key (6) and Put to Cover (5).
  • Page 8 STEP 16: Connect Conner with Left Bench and Right Bench by Connector (Q). STEP 17: Put on Seat Bench Cushion (N) & Back Cushion (O), Small Cushion (P). Page: 6/6...
