THOMSON SPEEDTOUCH D100 Installation

SpeedTouch™ D100
C R
Thomson Telecom Australia Pty Limited
1st Floor
Building B
1 Moorebank Avenue
Moorebank NSW 2170
Australia
ENGLISH

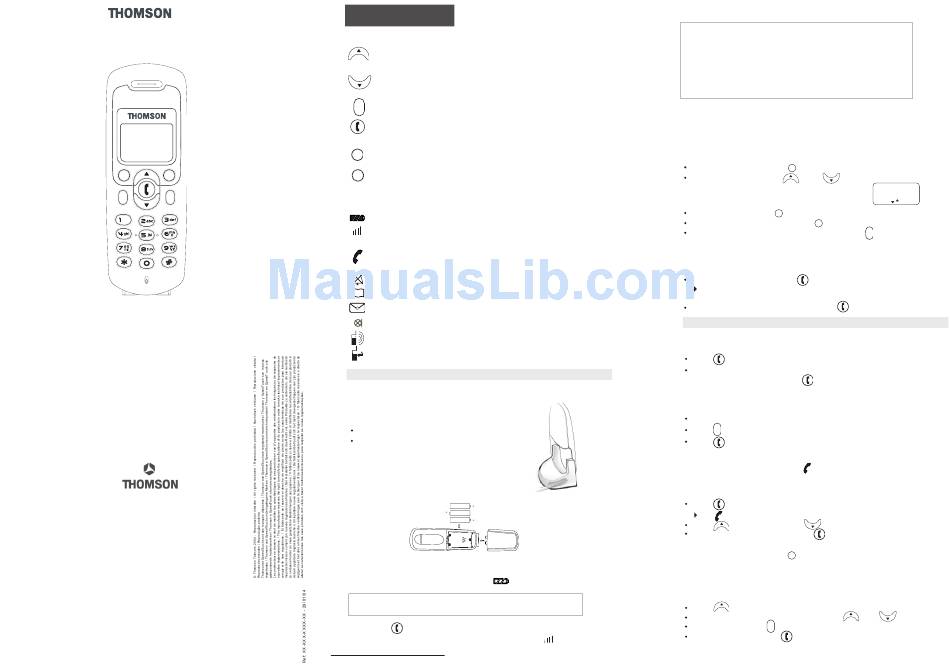

HANDSET KEYS
Access the list of numbers dialled
Increase the sound volume of the handset's earpiece and the hands-free speaker
Acces the list of unanswered calls if available at the PABX
Decrease the sound volume of the handset's earpiece and the hands-free speaker
C
Cancel/return key
Line seizure and hang up key
Press and hold: activate/deactivate hands-free mode
ON/OFF switch (press and hold in idle mode)
Left contextual menu key: access directory
Confirm key
Right contextual menu key
Menu access key
Return key
DISPLAY AND ASSOCIATED ICONS
Battery charge level
Reception antenna: flashes if out of range
fixed if range is correct
Flashes when receiving a call
Fixed when transmitting a call
Silence (ringing volume in silent mode)
Directory
Indicates unanswered incoming calls (depends on the PABX)
Put on hold
Hands free activated
Seize line
1.

INSTALLATION

Informative note: your SpeedTouch™ D100 telephone is a DECT™* st
certified item of equipment. It is meant for transmitting and receiving telephone
calls and for connection to a PABX only.

1.1 CONNECTING THE CHARGER

Connect the power supply cable to the charger.
Plug the mains adaptor into a 230 V / 50 Kz electric
socket.

1.2 PREPARING THE HANDSET

Fitting the batteries and charging up for the first time
Insert the batteries in the handset's compartment.
-
-
-
Before using for the first time, we recommend that you leave the handset to charge up
on the charger for 24 hours in order to optimise battery performance and longevity.
Place the handset on the charger. It beeps. The
Before using your telephone, contact your telephone maintenance
service to register it with your PABX.
Obtain a line .
The tone confirms that the telephone is working. Check that the
not flashing.
* DECT is a trademark registered by the ETSI.
!
!

1.3 GETTING TO GRIPS WITH YOUR TELEPHONE

1.3.1
It's easy to adjust and customise your DECT cordless telephone using the scrolling
menu feature.
N.B. : When a choice of options is offered, the active status is displayed first.
1.3.2
In idle mode:
2.

2.1 MAKING A CALL

Direct dialling
To hang up after finishing a call, press
andard
Pre-dialling
With the pre-dialling feature you can enter and modify a number before making
the call.

2.2 RECEIVING A CALL

When you receive an external call, the
The information displayed on the screen depends on the PABX's configuration
(name, number, origin of the call, ...).
To take the call:
Cutting the ringing volume during a call in progress
You can cut the volume using the

2.3 REDIALLING ONE OF THE LAST NUMBERS CALLED

The last 10 numbers dialled on your DECT cordless telephone are memorised
icon flashes during charging.
in the redial list.
To redial a number:
symbol is
Only use rechargeable batteries with exactly the same
specifications as those supplied with the product. Using non-
rechargeable or non-conforming batteries can damage the
product.
Failure to comply with this recommendation will invalidate the
manufacturer's warranty.
The batteries could split or leak if incorrectly inserted, opened or
exposed to heat.
Never dispose of batteries in a fire: risk of explosion.
The "System" Menu is reserved for the installer.
Navigating through the menus
To access the menu: press the key under "Menu".
Keep pressing the arrows and to
reach your selection. The options loop round: going
beyond the last option takes you back to the first, the
screen displays:
To confirm a choice, press under "OK".
To go back to the previous menu, press under "Esc".
C
To quit the menu and go back to the idle screen, press the
Switching the telephone On/Off
To switch off the telephone, press for at least 2 seconds.
The display goes out. You cannot call out and the telephone will not ring if
you receive calls.
To switch the telephone back on, press the key (press and hold).

USING THE TELEPHONE

Press .
Dial the number to be called.
.
Dial a number of up to 25 digits.
C
Press to correct an input error.
Press to initiate the call and to hang up at the end of the call.
icon flashes.
Press .
The icon appears on the screen.
Press to raise the volume or to lower it.
To hang up at the end of the call, press .
key under "Sil.".
Press .
Scroll through the names and numbers using the and
C
To quit the menu, press .
To initiate the call, just press when you reach the name or number you
want.
------------
Esc
key.
keys.
