LED SPEC-SELECT™ BOLLARD
INSTALL INSTRUCTIONS
PLEASE FIND A QUALIFIED ELECTRICIAN FOR INSTALLATION. Read these instructions before installing, servicing or maintaining this equipment.
WARNING: RISK OF FIRE, ELECTRIC SHOCK, INJURY OR PROPERTY DAMAGE.
• Risk of electric shock - Disconnect power to equipment before installing or servicing. This equipment must be installed according to all applicable
codes & ordinances.
• Installation and service of this equipment must be performed by qualified service personnel.
• The installer must ensure that the foundation is stable and can support the luminaire's weight.
• The Installer must use proper means to secure the luminaire to the ground.
CAUTION
• Luminaire may have sharp edges; wear gloves while handling or servicing this equipment.
• Inspect equipment for damage from shipping and handling.
• Recommended maintenance: Wipe off dust with a dry, soft cloth. Remove water spots etc. with a soft cloth dampened in lukewarm water (<122° F/ 50°
C) with a mild detergent.
• This fixture requires a 120-277Vac power source.
• Operating temperature -40° F to 122° F (-40° C to 50° C).
• Suitable for wet locations.
• This device complies with FCC Part 15 Subpart B. Operation is subject to the following two conditions: (1) this device may not cause harmful inference,
and (2) this device must accept any inference received, including that may cause undesired operation.
• Retain these instructions for future maintenance reference.

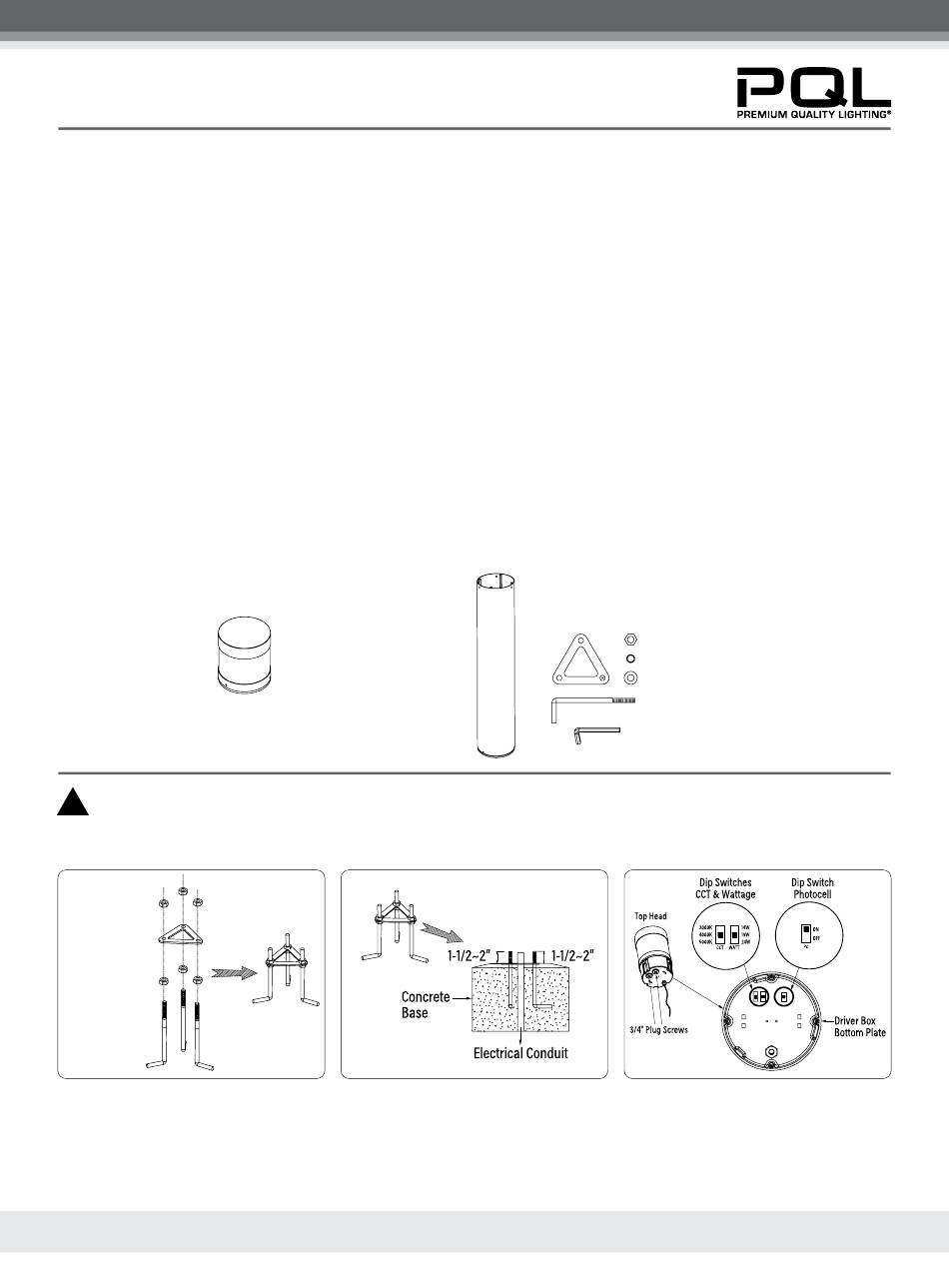

PARTS REQUIRED FOR INSTALLATION
Bollard Top Head
#84460, 84461, 84462 or 84463
WARNING DISCONNECT POWER BEFORE INSTALLING OR SERVICING.
!
INSTALLATION
3x - M10*8 Nut
1x - Anchor Bolt
Carrier
3x - M10*8 Nut
3x - Anchor Bolt
1. Assemble the anchor bolt carrier as shown
and use it to determine placement of anchor
bolts in concrete.
PREMIUM QUALITY LIGHTING® • www.PQLighting.com
© P.Q.L., Inc. • 2285 Ward Avenue • Simi Valley, CA 93065 • 800-323-8107
(Bollard Top Head and Round Base sold separately)
Round Base
(Fixture Body)
#84470
2. Install 3 anchor bolts into concrete, having
at least 1-1/2~2" protruding from concrete with
threads free and clear of debris and dirt.
(The concrete center should be reserved for the electrical
conduit.)
Mounting Hardware Kit
(Included with Round Base)
#84475
1 - Anchor Bolt Carrier
12 - M10*8 Nut
3 - M10 Spring Washer
6 - M10 Flat Washer
3 - Anchor Bolt
1 - Hex Wrench
3. On the bottom of the top head remove the
3/4" plug screws (2 ea.), using the dip switches
select desired CCT & wattage and select
Photocell (On/Off).
Specifications subject to change without notice. Photos and line
drawings may not be to scale and are for general reference only.
