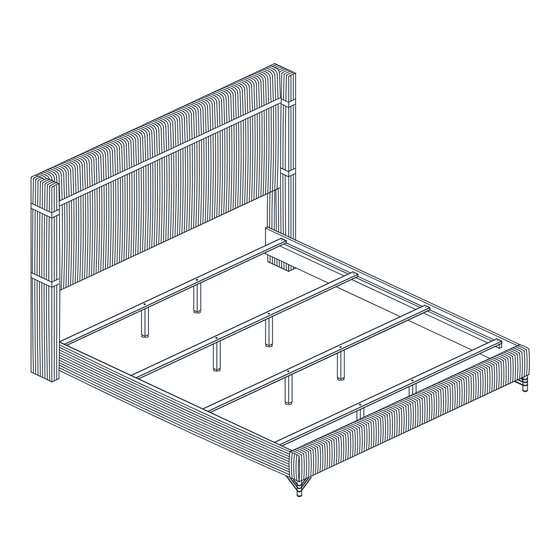

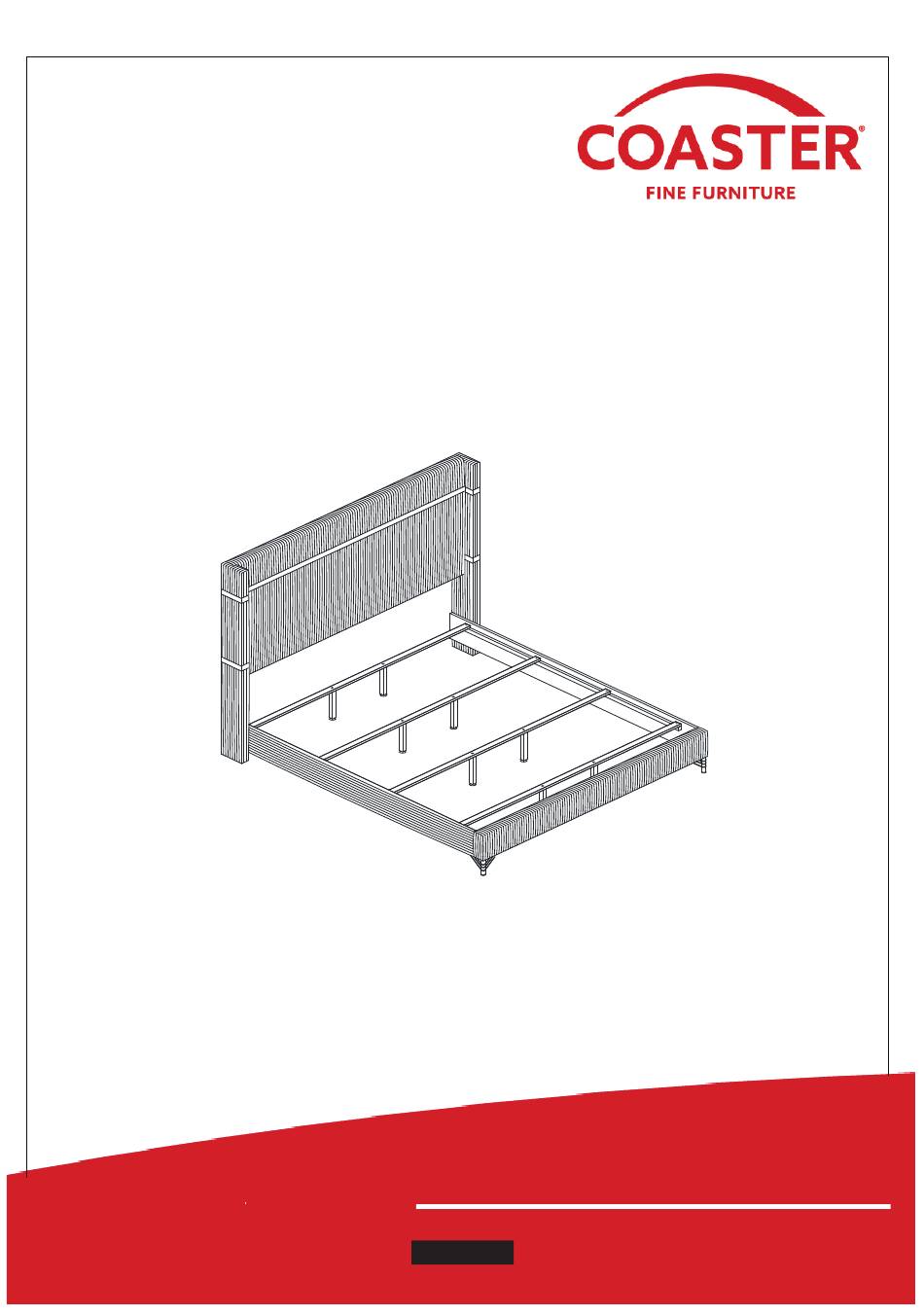

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 224731KE (B1&B2) Eastern King Bed COASTERFURNITURE.COM PAGE 1 OF 6 REVISION 0 : 10/19/2023 PAGE 1 OF 2...
-
Page 2: Assembly Tips
224731KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1. -
Page 3: Hardware Identification
224731KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. WARNING! 1. - Page 4 224731KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Open zipper to get all other parts. (WITH ‘L’ LABEL) (WITH ‘R’ LABEL) 11 3 6 STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 224731KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COASTERFURNITURE.COM PAGE 5 OF 6...
- Page 6 224731KE (B1&B2) ITEM: ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 COMPLETE Adjust leveling feet (G) to touch floor. COASTERFURNITURE.COM PAGE 6 OF 6...
- Page 7 224731KE (B1&B2) ITEM: Inner size: 76.50"W X 81.75"D 82.50" 77.25" 14.00" 60.75" 3.25" 9.75" 13.00" 4.75" 75.00" 79.50" 88.00" 77.25" Note : Dimension tolera nce ± 5% COASTERFURNITURE.COM...
