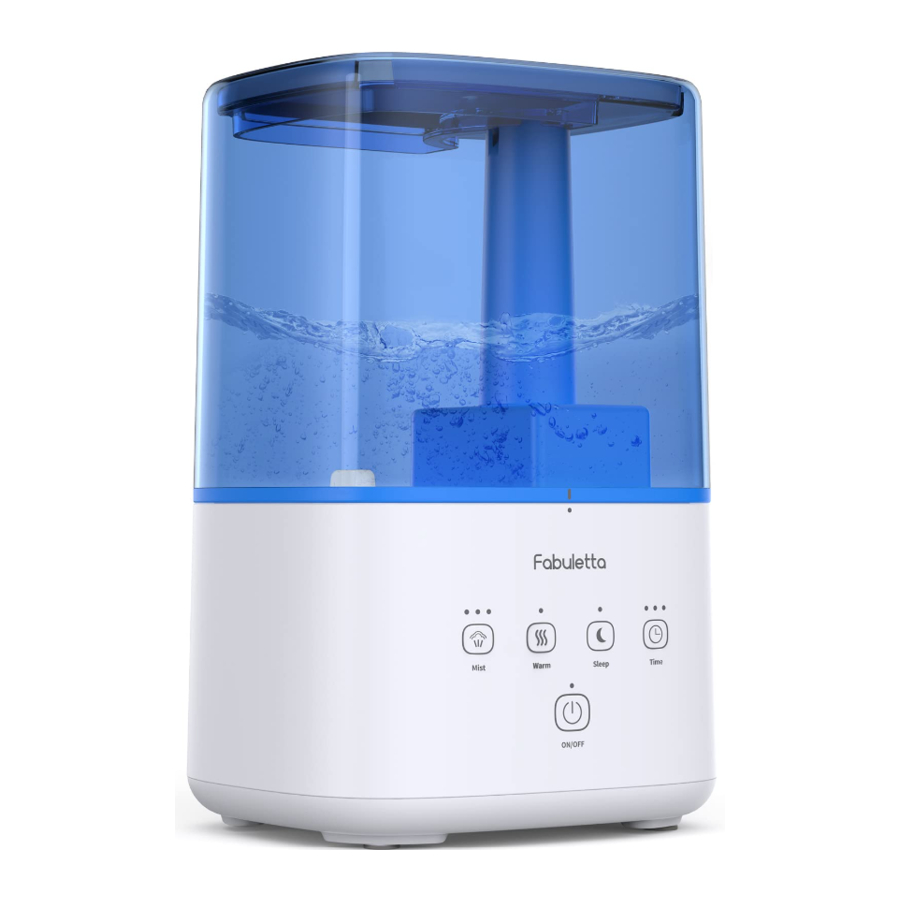

Fabuletta FHM001 - Air Humidifier Manual

GETTING TO KNOW YOUR HUMIDIFIER

Humidifier Diagram

Control Panel

Button	Icon	Function
Power Button		Press to turn the humidifier on/off. If no water in the water tank, the humidifier will not turn on and all indicator lights will flash 10 times. When run out of the water, all indicator lights will flash and the humidifier will turn off
Cool Mist Level Button		Press repeatedly to cycle through mist level settings: Low(1), Medium(2), and High(3)
Warm Mist Button		Press to turn the warm mist on/off
Sleep Mode Button		Press to turn the sleep mode on/off When turn on sleep mode, the orange indicator lights on for 3 seconds. After 3 seconds, all display lights will tum off
Timer Button		Press to choose a time setting: 4hours, 8hours or12hours Press and hold for 2 seconds to exit timer function

GETTING STARTED

Before First Use

1. Remove all packaging. Remove the adhesive tapes between the tank and base. Take the water tank off of the base, remove the tape and foam on the float.

   [Figure 1.1]

2. Put the humidifier on a flat, waterproof surface. The surface should be at least 4 feet (1.2 m) away from your bedside and 6 inches (15 cm) away from the wall.

   [Figure 1.2]

3. Rotate the nozzle to keep mist directed away from any walls, furniture, bedding and appliances.

   [Figure 1.3]

Note: DO NOT place the humidifier on the towels, carpets, rugs, or any surfaces with fibers. This may block the air inlet at the bottom of the humidifier and cause malfunctioning

[Figure 1.4]

Filling and Refilling

1. Take out the water tank cover by holding the nozzle and pulling upward.
2. Fill the water tank with cold water. We recommend using purified water. Avoid using tap water, because the mineral content is too high and will create white dust around the humidifier.
3. Make sure the water tank is properly placed on the base by aligning the indicator mark.

   [Figure 2.1]
4. Place the watertank cover back on the tank. Make sure the nozzle align with the mist tube.

   [Figure 2.2]
5. Wipe off any excess water on the tank and base.

Note:

• Do not fill above the MAX line. The max capacity of the water tank is 1.19gaI/4 5L. Do not fill with hot water or other liquids.
• Do not add water through the mist tube, or the inner chamber.

  [Figure 2.3]

• Do not add essential oils into the water tank or base chamber. Please add through AROMA BOX

Using The Aroma Box

Your humidifier can be used for aromatherapy. Follow the below instructions to add essential oil.

1. Gently push the aroma box at the back of the base and pull it out.

   [Figure3.1]

2. Put 10-15 drops of essential oil on the aroma pad

   [Figure 3.2]

3. Replace the aroma box into the humidifier.

Note:

• The aroma is intended to be light. This humidifier is not an aroma diffuser.
• For best results, we recommend using pure essential oil.
• The aroma pads can be cleaned and reused after diffusing essential oils.

OPERATING YOUR HUMIDIFIER

Turn On Mist

1. Plug in the humidifier. All indicators will light on for 1 second.
2. Press to turn on the humidifier. The humidifier will start on the medium mist level (Level 2).
3. Pres repeatedly to choose y our desired mist level. Optionally you can also press to turn on the warm mist.

Note:

• If there is no water in the tank, all indicator lights will flash 10 times, and the humidifier will turn off.
• If you take the water tank off the base during working, the humidifier will turn off.
• The most comfortable indoor humidity level is between 30% and 50%. When your room has reached your desired humidity level, turn your humidifier to a lower setting, or turn it off

4. Rotate the nozzle to adjust the direction of the mist. Keep the mist directly away from walls, furniture, bedding and appliance.

   [Figure 4.1]

Sleep Mode

Sleep Mode turns off all indicator lights while you sleep. It won't bother you at night with bright lights

1. First to turn on the humidifier.
2. Press button, the orange indicator lights turn on. After 3 seconds, all indicator lights turn off, the humidifier go into sleep mode.
3. To exit sleep mode, press any button to wake up the machine from sleep mode, and then press button again to cancel Sleep Mode. Press button to turn off the humidifier.
4. Optionally, you can choose the mist level, turn on/off warm mode or set timer in sleep mode.

Notes:

2. Please keep the humidifier at least 4 feet (1.2 m) away from your bedside
3. We recommend using low cool mist setting in sleep mode.
4. The noise level increases along with the warm mist turning on.

Timer Function

Press repeatedly to choose a time setting: 4, 8, 12 hours

2. Once a time was set, the timer will start.
3. The humidifier will automatically power off once the timer is finished
4. To exit the timer function, press and hold for 2 seconds.

CARE & MAINTENANCE

Note:

• All maintenance should be done in the kitchen or bathroom on a water resistant surface near a faucet.
• DO NOT wash any components of this humidifier in the dishwasher.
• If not using the humidifier for 1 week or longer, do not leave water inside. Clean and dry the humidifier instead.

1. Turn off and unplug the humidifier.
2. Remove water tank from base. Empty water from water tank and base.
3. Add 2-3 cups of white vinegar to water tank. Replace the tank cover and swish the vinegar around the tank.
4. Place water tank on base. Soak for 15-20 minutes.
5. Remove the water tank from base, pour out any vinegar solution. Use the soft cloth and the cleaning brush to clean all parts.

   [Figure 5.1]

6. Rinse the tank, tank cover and base chamber with room temperature water.
7. Remove the water filter from the tank by rotating it counterclockwise and rinse it.

   [Figure 5.2]

8. Flip the water tank over. Remove the noise silencer by pressing the release tab and gently pulling it off.

   [Figure 5.3]

9. Remove the float from the base chamber by pulling the shaft out from the float brackets and rinse it.
   Note: One side of the brackets is open to allow removal and installation

   [Figure 5.4]

10. Rinse all parts until any vinegar smell is completely gone.
11. Dry all parts with a cloth. Make sure all parts are completely dry before reassembling or storing.

TROUBLESHOOTING

Specifications

Power Supply: 120V 60Hz
Water Tank Capacity: 1 19gal / 4.5L
Rated Power: 25W at cool mist mode, 125W at warm mist mode
Dimension: 210 x 180 x 330 mm/ 827 x 7.09 x 12.99 inch
Weight: 1805g / 3.98 lb

IMPORTANT SAFEGUARDS

To reduce the risk of fire, electric shock, or other injury, when using your humidifiers, basic safety precautions should always be followed. Read all instructions before using.

1. Place the humidifier on a dry, flat, stable surface. Do not place the humidifier directly on carpets or rugs.
2. Place the humidifier and cord so that the humidifier will not be knock over.
3. Do not place the humidifier on or near heat sources such as radiators, heated ovens, etc
4. Close supervision is necessary when the humidifier is used by or near children
5. Do not fill the water tank above the MAX level
6. Only fill the tank with cold and clean water. Never fill the humidifier with other liquids
7. Do not add essential oils or other foreign objects into the water tank or base chamber.
8. Do not cover the nozzle while the humidifier is on
9. Do not attempt to inhale the mist directly from nozzle
10. Always unplug the humidifier when it is not being used and before cleaning. Allow to cool before cleaning.
11. Do not immerse cord, plug, or base in water or other liquids.
12. Do not use the humidifier for other than intended use
13. Do not use the humidifier if it is malfunctioning, or if any part, including the base, water tank, cord, or plug, is damaged in any way. Do not try to repair it. Contact Consumer Support.

SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
