Constant Pressure / Constant
Flow Regulator ES 10
Manual ES 10 Flow / Pressure Regulator Rev.1.2 04/2024 UP/DF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for LS Control ES 10

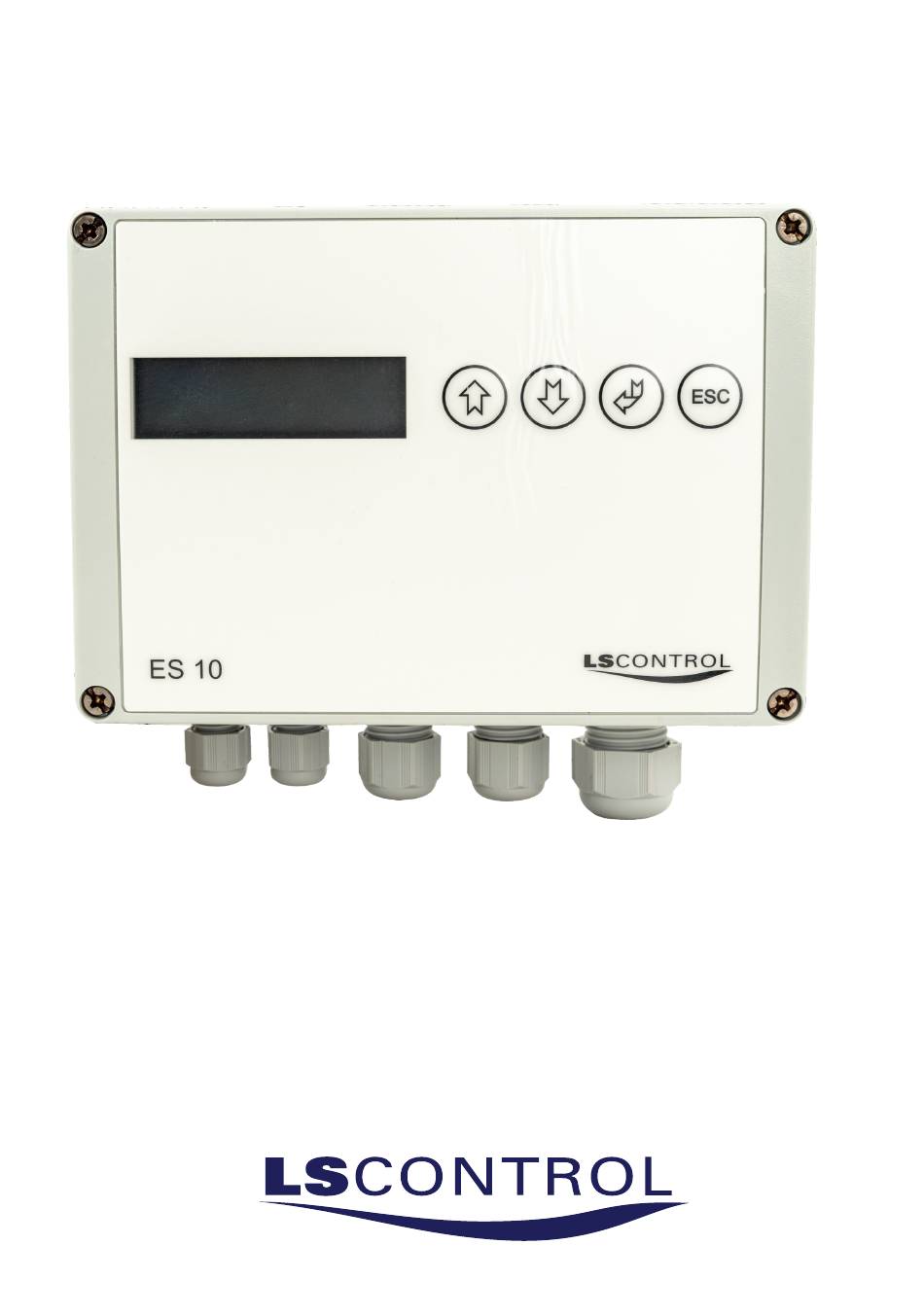

  • Page 1 Manual Constant Pressure / Constant Flow Regulator ES 10 Manual ES 10 Flow / Pressure Regulator Rev.1.2 04/2024 UP/DF...
  • Page 2: Table Of Contents

    If a NTC temperature sensor is connected to the ES 10, it can be set to outdoor temperature compensation. As the ES 10 is also equipped with a potential free alarm output, the ES 10 can be connected to CTS equipment or other alarm equipment.
  • Page 3: Safety Instructions

    Safety Instructions Read the entire manual before installation and use of ES 10 Constant Pressure / Constant Flow Regulator. If the instructions in this manual are not followed it may cause damage to the product and invalidate the warranty. Be careful not to damage the product during unpacking.
  • Page 4: Standards & Directives

    Standards and Directives ES 10 Constant Pressure / Constant Flow Regulator complies to below standards and directives. • EN 61000-6-1 and EN 61000-6-3 Electromagnetic Compability (EMC) • EN 60669-1 and EN60669-2 Switches for Household and similar fixed- electrical installations. This product complies to RoHS Directive 2011/65/EU The manufacturer of this product is registered with the statutory return system under the WEEE directive.
  • Page 5: Size And Measurements

    Size and Measurement Side View Front: 171 mm 158,7mm 58 mm Lid fastener Mounting screw 91 mm 121mm 121mm 109 mm 160 mm 18 mm 40 mm PG13,5 Mounting The ES10 constant pressure/airflow regulator is to be mounting according to applicable mounting regulations on a flat and stable surface, on which the ES10 is fixed with screws in the 4 corner holes.
  • Page 6: Terminal Overview And Connecting Diagram

    Terminal Overview and Connection Diagram PC-COM 10 11 12 13 14 15 16 17 18 19 20 Supply Voltage 230VAC 50Hz Page 6 of 13 www.lscontrol.dk...
  • Page 7: Main Menu

    Main Menu The main menu in the display consist of two lines. In the first line the following information is shown: Current operation mode (Stop, Day, Night, Max) and whether outdoor temperature compensation is active (Temp Komp). In the second line the following information is shown: 1.
  • Page 8: Air Pressure / Air Velocity Regulation

    ES 10 can be set to maintain a constant air pressure or a constant airflow. This is chosen in setpoint number 15 in the setpoint menu. If setpoint number 15 is set to «0», then ES 10 will maintain a constant air pressure measured in (Pa).
  • Page 9: Alarm Control

    Alarm Control ES 10 has 3 different types of alarms. 1. Motor error alarm. If the connection between terminal 14 and 15 is disrupted, the display will show the alarm «ERROR! Motor» and the alarm relay (terminal 18, 19 and 20) draws. Pressure / Flow regulation will continue as ususal.
  • Page 10: Outdoor Temperature Compensation

    Outdoor Temperature Compensation ES 10 is equipped with an outdoor temperature compensation function. The outdoor temperature is measured with a NTC temperature sensor mounted in terminal 3 and 4. The measurement range of the sensor must be between -40.0ºC - 60.0ºC.
  • Page 11: Motor Control

    On terminal 16 and 17 a motor operation relay is found which is drawn when the ES 10 is in day, night or max operation. Furthermore the ES 10 is equipped with an error input on terminal 14 and 15 for errors from frequency inverter, voltage regulator or motor.
  • Page 12: Setpoint Menu Table And Factory Setting

    Setpoint Menu Table and Factory Settings Setpoint Display text Description Factory Number Value Value Setting Pressure day Setpoint for day mode operation 5000Pa 200Pa Flow day 0.00m/s 50.00m/s 2.00m/s Pressure night Setpoint for night mode operation 5000Pa 150Pa Flow night 0.00m/s 50.00m/s 1.50m/s...
  • Page 13 Setpoint Menu Table and Factory Settings Continued Setpoint Display text Description Factory number Value Value Setting PID kp PID controller amplification PID ti PID controller integration time 4000 PID h PID controller sampling frequency 2000 PID period PID controller is called every time set 0.0sec 25.0sec 1.0sec...
