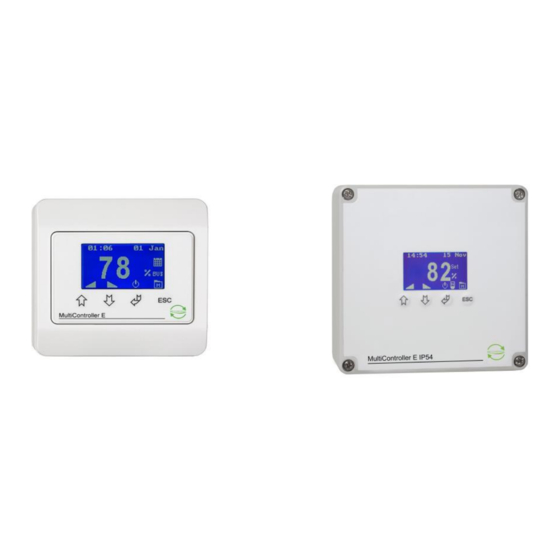

MultiController E 0-100%
MultiController E 0-100% 24V and 230V
Manual Output Controller 0-100%, 4 Step or ON/OFF.
Content
Description ........................................................................................................................................... 1
1 Mounting ........................................................................................................................................... 2
Terminal Connections 24V Version ............................................................................................ 2
Terminal Connections 230V Version .......................................................................................... 3
2 Functions ........................................................................................................................................... 4
2.1 User Interface ......................................................................................................................... 4
2.3 Quick Set-up .......................................................................................................................... 5
2.4 Menu Structure....................................................................................................................... 6
2.5 Main Menu and Submenus .................................................................................................... 6
2.6 System Information (A-Menu) .............................................................................................. 6
2.7 Scheduler Menu (B-Menu) .................................................................................................... 7
2.8 User Menu (C-Menu) ............................................................................................................. 7
2.9 Display Menu (D-Menu)........................................................................................................ 8
2.10 Service Menu (E-Menu) ...................................................................................................... 9
3 Setpoint Overview .......................................................................................................................... 11
4 Technical Data ................................................................................................................................ 12
5 Applied Standards ........................................................................................................................... 12
Description
MultiController E 0-100% for adjustment of output signal (0-10V) from 0 to 100%, 4-steps or ON/OFF.
The integrated scheduler function allows for individual adjustment of the output signal with up to 10 shifts per day.
The scheduler/clock has an integrated battery back-up. RS-485 interface with MODBUS® protocol facilitates easy
connection to network systems.
Set-up is easily performed using the built-in quick guide. MultiController E 0-100% also features a micro-SD card
reader for software updates and copying of settings. Micro-SD card reader requires micro-SD cards with LS Control
Firmware with the capacity of ma 2Gb.
LS Control A/S
Scheduler and Modbus Interface
Software Version 2.7
Side 1
Advertisement
Table of Contents
Related Manuals for LS Control MultiController E
Summary of Contents for LS Control MultiController E
-
Page 1: Table Of Contents
The scheduler/clock has an integrated battery back-up. RS-485 interface with MODBUS® protocol facilitates easy connection to network systems. Set-up is easily performed using the built-in quick guide. MultiController E 0-100% also features a micro-SD card reader for software updates and copying of settings. Micro-SD card reader requires micro-SD cards with LS Control Firmware with the capacity of ma 2Gb. -
Page 2: Mounting
1 Mounting MultiController E must be mounted according to the general applicable installation rules in the ’Low Voltage Directive’. The unit is to be carefully fixed on a plane and stable surface with screws in the 2 oval holes. The unit may not be fixed on moving or vibrating surfaces. -
Page 3: Terminal Connections 230V Version
MultiController E 0-100% Terminal Connections 230V Version Terminal No. Description Comment L and N Connection of power supply 230V AC ±10% 1 and 2 (Vout1) 0-10V output 1 Load max 10mA 3 and 4 (Vout2) 0-10V output 2 Load max 10mA... -
Page 4: Functions
MultiController E 0-100% 2 Functions User Interface The display is operated by push-buttons. The general function of each button is described below. Icon Function Choose / Enter Increase / one step up Decrease / on step down Escape / cancel Shortcuts are available in the main window. -
Page 5: Quick Set-Up
MultiController E 0-100% Quick Set-up When the MultiController is first connected to supply it must be chosen how it should function. First language is chosen and then the wanted quick setting (01-06). Operating parameters are set for a standard setting. New quick setting can be performed by returning to factory setting (D4) and start over. -
Page 6: Menu Structure
Menu Structure The MultiController E 0-100% is operated by 4 push buttons. The function of the individual button is indicated on the button and the menus consist of a main menu with submenus. Configuration and adjustment of the parameters is performed in the submenus. -
Page 7: Scheduler Menu (B-Menu)
Clock is a 24-hour clock. Optional choice of automatic shift between summer and normal time. MultiController E has integrated battery back-up for the clock ensuring that short power cuts do not affect the clock. In case of longer power cuts (> 72 hours) the clock must be reset. -
Page 8: Display Menu (D-Menu)
Note scheduler is also completely reset. After reset the MultiController restarts showing quick-setup for selecting functionality of MultiController. D5: Save / Retrieve Setpoints. Save setting to MicroSD Card / Open (retrieve) setting from MicroSD Card (max 2GB with LS Control firmware). Side 8 LS Control A/S... -
Page 9: Service Menu (E-Menu)
MultiController E 0-100% D6 (Only available if MultiController is purchased as model Regulate). Choose if MultiController should operate as a controller or manual (0-100%) regulator. If controlling (model Regulate) is chosen please refer to manual for MultiControllerE Regulate, which may be downloaded from www.lscontrol.dk. - Page 10 Modbus menu (F-menu) 2.11 MultiController E 0-100% may be configure as Modbus slave. The interface is serial RS-485 and the Modbus unit communicates according to the RTU standard with up to 19200 Baud. Download the Modbus parameter list from www.lscontrol.dk Note: The data points in the menu may be set from a Modbus-master.
-
Page 11: Setpoint Overview
MultiController E 0-100% F4: Allow writing from Modbus. Set configuration at 1, if configuration is to be altered from the Modbus master. Note: Cannot be altered by Modbus, must be altered manually in MultiController. 3 Setpoint Overview Name Factory Setting... -
Page 12: Technical Data
This product complies with the RoHS directive, Directive 2011/65/EU. Drawing: 950-206725 MultiControllerE-0-100_ES874_27_UK Date: 15/5 2019 Rev.: 2.9 Software version: Program 2.7 Written by: UP/df Manufacture: LS Control A/S Industrivej 12, DK 4160 Herlufmagle. www.lscontrol.dk - . +45 5550 5550 Side 12 LS Control A/S...
