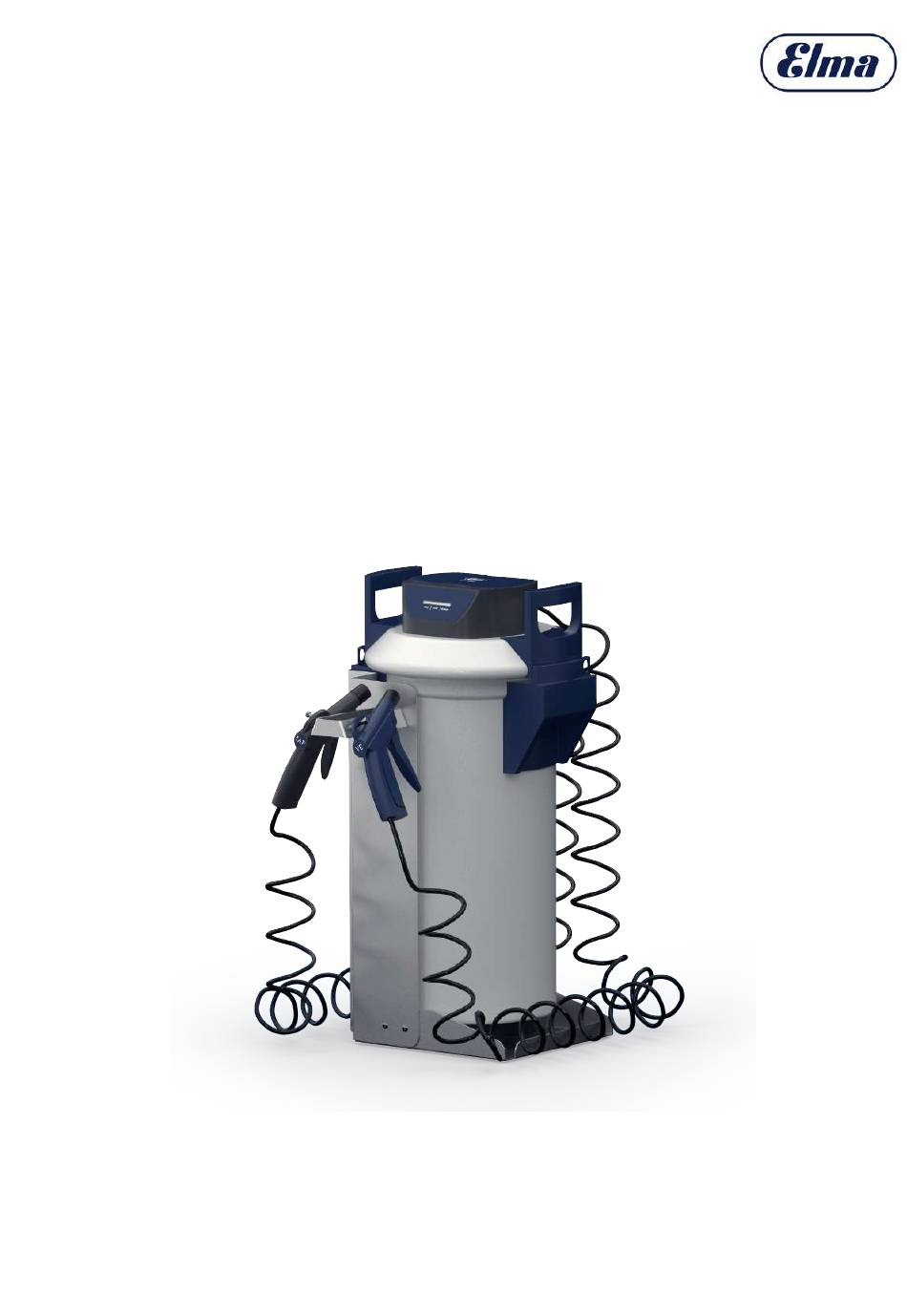

- Page 1 Operating and installation instructions english Elmasonic xtra ST accesories Elma Rinse Version 1 Item No. 1122287 01/2023...
- Page 2 Copyright © 2022 Elma Schmidbauer GmbH. All rights reserved. Elma Schmidbauer GmbH Technical support: Gottlieb-Daimler-Strasse 17 Tel: + 49 (0)77 31 882 280 78224 Singen (Germany) Email: support@elma-ultrasonic.com www.elma-ultrasonic.com Subject to technical and visual modifications.
-
Page 3: Table Of Contents
Connect the power pack.... 14 ............ 6 Safety information for filter system .. 6 8 Operate ............ 14 Safety-related installation information 9 Change filter cartridge ...... 15 ............ 6 10 Troubleshooting ........ 15 4 Technical data .......... 7 11 Disposal............. 16 Elmasonic xtra ST accesories... -
Page 4: About This Manual
• Elmasonic xtra ST • Elmasonic Select 500/900 The Elma Rinse is used for part pre-cleaning and post-cleaning. Parts are cleaned prior to or after clean- ing with tap water or DM water (demineralised water) depending on the application. Parts are rinsed us- ing spray guns with replaceable nozzles. -
Page 5: Safety
Table 1: Meaning of the signal words Meaning of symbols on the nameplate Read the manual Disposal information Attention Manufacturer Date of production Order number Serial number CE mark Elmasonic xtra ST accesories 5 / 16... -
Page 6: Safety Information For Electrical Energy
• Drinking water within the water inlet temperature range stated in the technical data must be used ex- clusively for the Elma Rinse by Elector water filter system. Water containing microbiological particles or water of unknown microbiological quality without suitable sterilisation must NOT be used. -
Page 7: Technical Data
Air pressure (transport, 500–1,010 storage) Permissible relative % r.h. 10–80; non-condensing humidity (transport, Permissible relative % r.h. 80; non-condensing under fluctuating temperatures humidity (operation) Max. perm. altitude m above sea +2,000 (operation) level Elmasonic xtra ST accesories 7 / 16... -
Page 8: Product Contents
Hand spray with spiral hose for demineralised water with flat jet nozzle Hand spray with spiral hose for tap water with water jet nozzle Mounting for hand sprays (for installation on wall mount or Elma Table accessory) Spiral hose for connection to the on-site tap water supply (not pictured) -
Page 9: Description
5 Spiral hose with hand spray, connect to the OUT (DM water) connection 6 Spiral hose with hand spray, connect to IN tap water connection 7 Filter capacity display 8 Connections for tap water IN and DM water OUT and power cord Elmasonic xtra ST accesories 9 / 16... -
Page 10: Install And Connect
345 mm (1) and max. 1,200 mm (2). 2. Install the dowel. 3. Screw in the screws. 4. Hang the wall mount on the screws. Illustration 3: Wall mount è The wall mount is installed. See also 2 Technical data [} 7] 10 / 16 Elmasonic xtra ST accesories... -
Page 11: Install Mounting
ü The filter system’s transport safety is removed, the filter cartridge is installed and the pressure vessel lid is mounted. NOTICE! Please refer to the handbook for the Elma Rinse by Elector filter system! ü An on-site tap water connection is available. For connection conditions: CAUTION! Please refer to the handbook for the Elma Rinse by Elector filter system! - Page 12 T plug-connector (11) until they lock into place. 6. Finally, push the other end of the spiral hose (9) into the screw joint for the on-site water supply. 7. Turn on the on-site water supply. 12 / 16 Elmasonic xtra ST accesories...
-
Page 13: Install Filter System
Install filter system ü The filter system (3) is installed and vented. NOTICE! Please refer to the manual for the Elma Rinse by Elector filter system! ü The wall mount (4) is installed. 1. Install the filter system onto the wall mount using the handles (1). -
Page 14: Connect The Power Pack
Order yellow bar – order filter cartridge. Change red bar – change filter cartridge. 4. NOTICE! Please refer to the Elma Rinse by Elector filter system manual! WARNING! The filter system must not be opened or removed during operation. ðThe unit is ready to use. -
Page 15: Change Filter Cartridge
Change filter cartridge NOTICE Risk of damage to property Please refer to the included manual for the Elma Filter by Elector water filter sys- tem! Filter cartridges must be replaced every six to 12 months and no longer than 12 months following commissioning, regardless of the level of deterioration of the filter cartridge. -
Page 16: Disposal
Used filter cartridges can be returned to the BRITA address listed on the back of the pack at delivery or can be disposed of in compliance with the respective applicable regulations and provisions. 16 / 16 Elmasonic xtra ST accesories... - Page 17 Elma Rinse by elector ® Wasserfiltersystem für technische Anwendungen/ Water filter system for technical applications/ Système de filtration d‘eau pour applications techniques/ Sistema di filtraggio dell’acqua per applicazioni tecniche/ Sistema de filtración de agua para aplicaciones técnicas Handbuch deutsch Manual...
- Page 18 Deutsch Seite 4 –14 English Page 16–26 1 Begriffsübersicht 1 Glossary of Terms 2 Allgemeine Informationen 2 General Information 3 Betriebs- und Sicherheitshinweise 3 Operating and Safety Instructions 4 Installation 4 Installation 5 Inbetriebnahme eines Neufilters 5 Comissioning of a new filter 6 Austausch und Entsorgung der Filterkartusche 6 Replacement and disposal of the filter cartridge 7 Filterkapazität...
- Page 20 1 Glossary of Terms Pressure tank Floor stand Filter cartridge Ejector socket Pressure tank lid Mantle handles Connection head transport protection cap Inlet connection Conductivity meter Reducing nipple 1“– 3/4“ Head handles Outlet connection 3/4“ Power adapter Lock security...
- Page 21 The Elma Rinse water filter system optimizes tap water for technical applications by deionization of water with ion-exchange resins. By using the Elma Rinse filter cartridge, the water is filtered by the ion-exchange resin in a flow through process, thus reducing the total amount of dissolved salts. This avoids impurities that might appear on cleaned surfaces and avoids residues on important machine parts after drying.
- Page 22 3.3 Disclaimer The installation must be carried out exactly as described in this manual. Elma is not liable for any damage, including consequential damage, that may result from incorrect installation or incorrect use of the product.
- Page 23 1 x Reducing nipple 1"– 3/4" 1 x Power supply If parts of the scope of delivery are missing, please contact the Elma office responsible for you (see back cover). 4.2 Assembly of the pressure tank and pressure tank lid •...
- Page 24 4.4 Commissioning of the conductivity meter Ensure that the plastic cap with the integrated conductivity meter is firmly inserted into the guide rail of the pressure tank lid Plug the power supply into the plug adapter located next to the inlet connection of the pressure tank lid.
- Page 25 Waste number key according to EAK regulation for used material from fresh water treatment and food industry = 190905 • If Elma Rinse has been used to treat fresh water (process water), the cartridge can be disposed of with the residual waste (household waste) depending on the applicable local and national regulations (exception: UK).
- Page 26 • If Elma Rinse was not used to treat fresh water and therefore contains harmful impurities, the cartridge must not be disposed of with the residual waste (household waste). Dispose of the cartridge as hazardous waste according to local and national regulations.
- Page 27 Illumination of yellow LEDs Still good water quality. However, order a new filter cartridge and keep it ready for replacement. Illumination of red LEDs If a red LED lights up, the water quality is still acceptable. As soon as more red LEDs light up, the filter cartridge should be replaced.
- Page 28 9 Troubleshooting 9.1 No water flow Cause: Water supply closed. Troubleshooting: Open the water supply at the upstream shut-off valve or inlet valve. The following errors may only be made by qualified personnel. Attention: 9.2 Little or no water flow despite open water supply Cause: Line pressure too low.
- Page 29 Elma Rinse filter cartridge 41053_2 Accessories / spare parts Article elector article-number ® Power adapter suitable for Elma Rinse 82317 Conductivity meter Elma Rinse 41102_1 Pressure tank lid Elma Rinse (incl. conductivity meter and power adapter) 41073_1 Handle set 41077...
- Page 30 Elma Rinse Vertriebskontakt / Sales contact: Elma Schmidbauer GmbH · Gottlieb-Daimler-Straße 17 · 78224 Singen · Germany Tel. +49 7731 882-0 · Fax +49 7731 882-266 · www.elma-ultrasonic.com Elma Rinse wird hergestellt durch / is produced by: elector GmbH · Düsseldorfer Straße 287 · 42327 Wuppertal · Germany...
