Sportdevices SP5 Manual

SP5/6 Ethernet Connection
Ethernet Configuration Types:

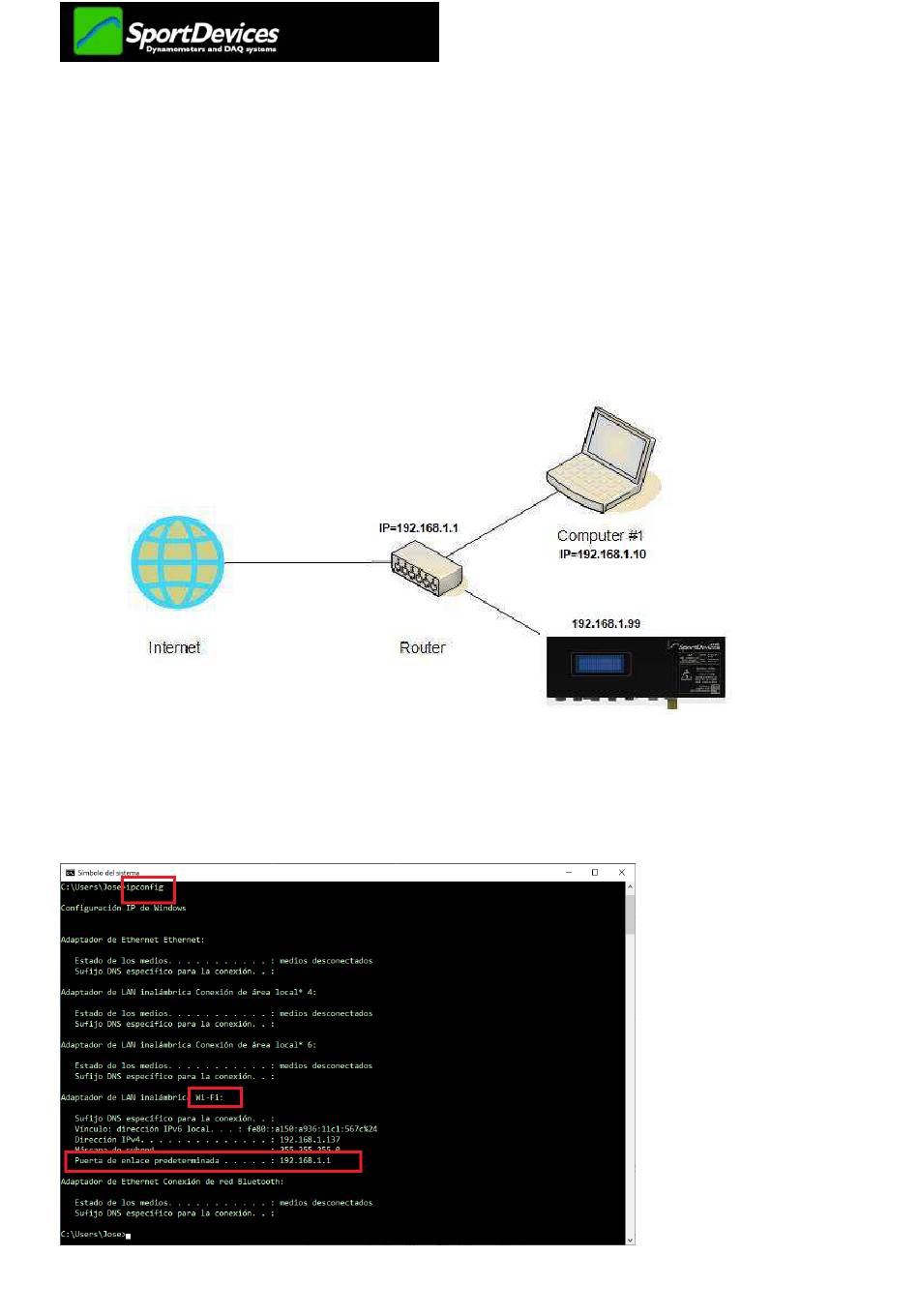

DAQ to Router direct connection:

The DAQ must be in the same subnet as the router
o
The DAQ can be accessed by WIFI by a laptop
o
PC does NOT need a fixed IP, as the router provides it
o
DAQ to PC Connection

PC must have a fixed IP at the Ethernet net
o
If PC accesses to the router by WIFI, then either both nets have different subnets, or the actual
o
subnet is splited in two so Windows know which net to access depending on the IP (see below)
DAQ to Router direct connection
First of all we need to know the subnet at which the router is working. Typically it should be in one of the
following subnets:
"0": 192.168.0.x

 "1": 196.168.1.x
With the IPCONFIG command Windows will show a list of the computer adapters. The gateway points to the
router. In the example it is the subnet "1" 192.168.1.1
