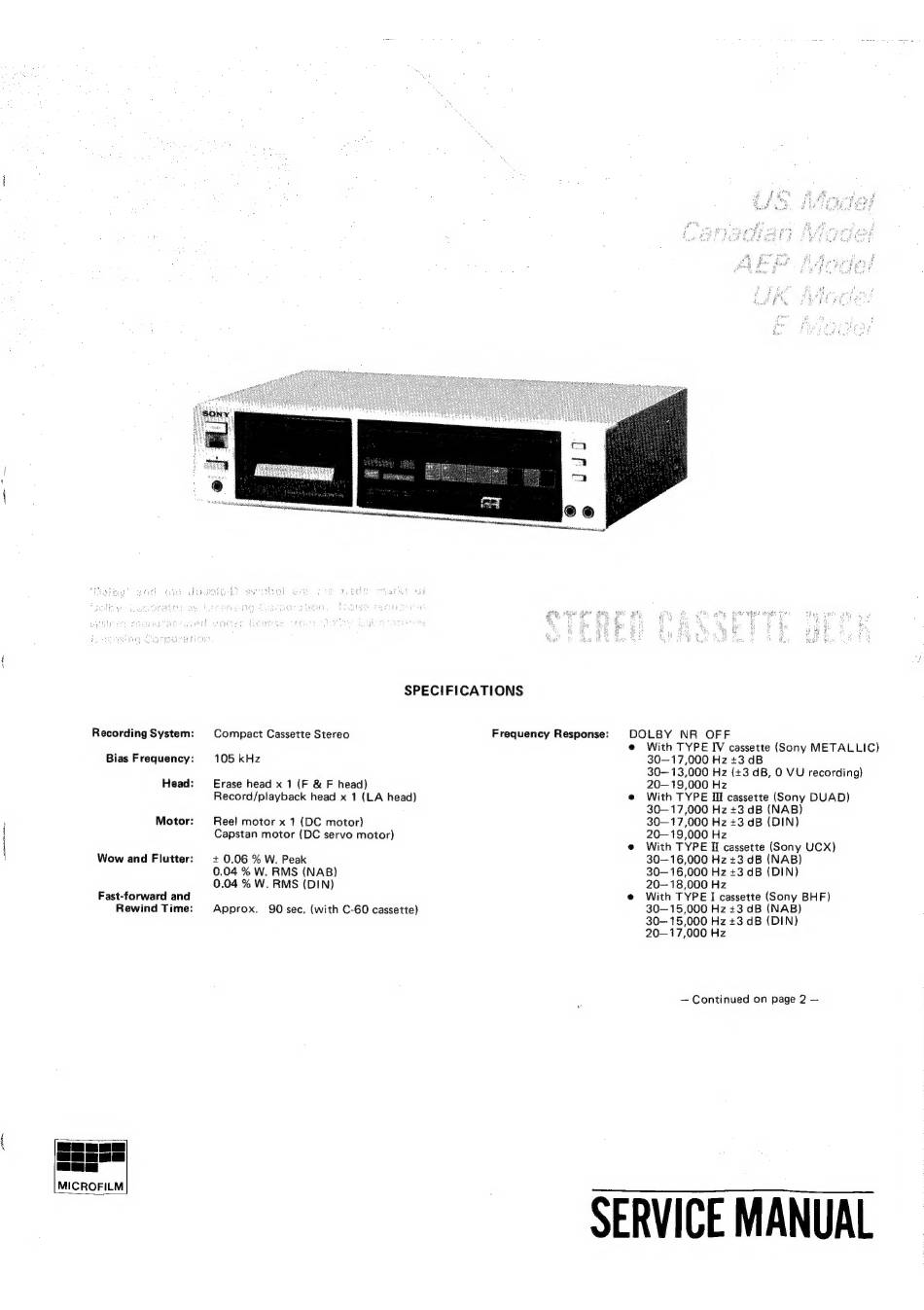

Sony TC-FX600 Service Manual

Peed
Recording System:
Bias Frequency:
Head:
Motor:
Wow and Flutter:
Fast-forward and
Rewind Time:
MICROFILM
SPECIFICATIONS
Compact Cassette Stereo
105 kHz
Erase head x 1 (F & F head)
Record/playback head x 1 (LA head)
Reel motor x 1 (DC motor)
Capstan motor (DC servo motor)
+ 0.06 % W. Peak
0.04 % W. RMS (NAB)
0.04 % W. RMS (DIN)
Approx.
90 sec. (with C-60 cassette)
Frequency Response: DOLBY NR OFF
e
With TYPE IV cassette (Sony METALLIC)
30—17,000 Hz +3 dB
30—13,000 Hz (+3 dB, 0 VU recording)
20—19,000 Hz
e@ With TYPE Il cassette (Sony DUAD)
30—17,000 Hz +3 dB (NAB)
30—17,000 Hz +3 dB (DIN)
20—19,000 Hz
e With TYPE HI cassette (Sony UCX)
30—16,000 Hz +3 dB (NAB)
30—16,000 Hz +3 dB (DIN)
20—18,000 Hz
e@ With TYPE I cassette (Sony BHF)
30—15,000 Hz +3 dB (NAB)
30—15,000 Hz +3 dB (DIN)
20—17,000 Hz
~ Continued on page 2 —
SERVICE MANUAL
