AMG AMG150 Series Installation Manual - Hardware

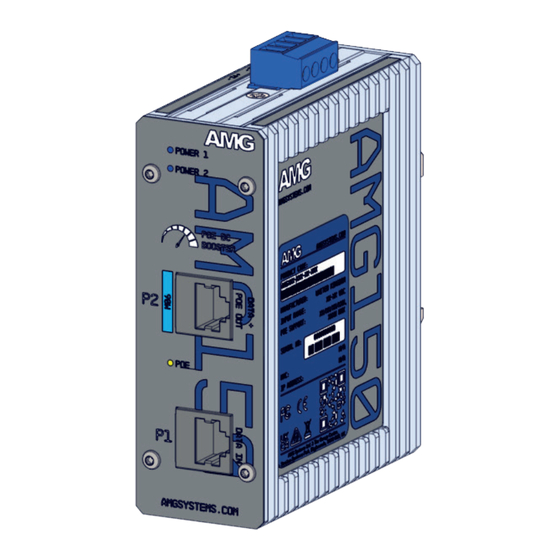

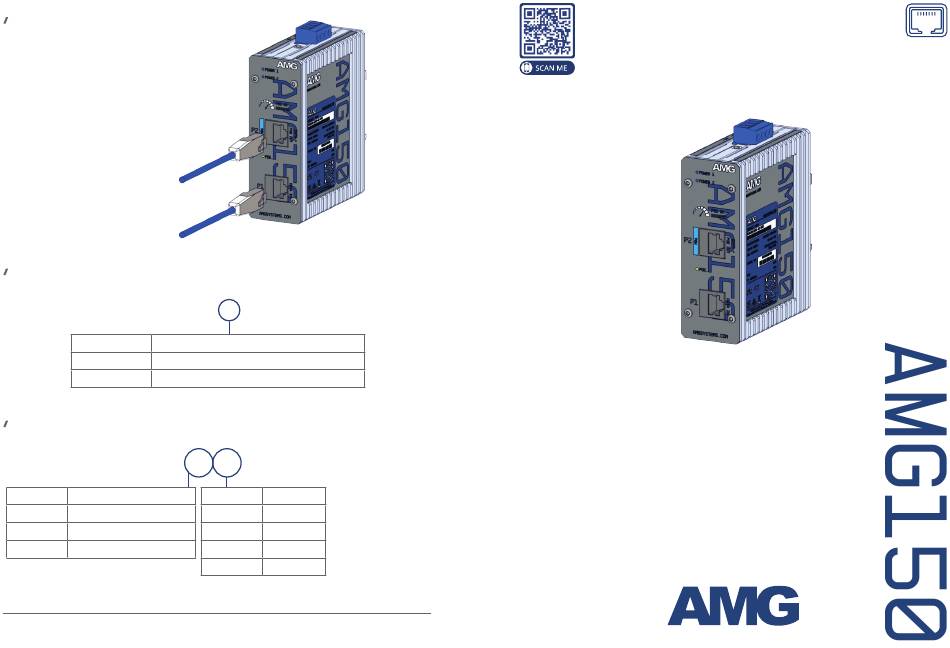

INTERFACE CONNECTIONS
① Insert the inbound Cat5/6
cable into the Data In RJ45 port.
② Insert the Cat5/6 cable for the
PoE device to be powered into the
Data + PoE Out RJ45 port.
PORT SPEEDS
Example part code:
AMG150-1GAT-P60
Character
G
X 10/100/1000/2.5G/5G/10G Base-T(X)
POE CAPABILITIES
Example part code:
AMG150-1GAT-P30
Characters PoE Standard Supported
None Non-PoE Model
AT
IEEE 802.3at 30W Port
BT
IEEE 802.3bt 60/90W Port
Check the product label to determine
the PoE power supported on each port
and the units total maximum PoE budget.
