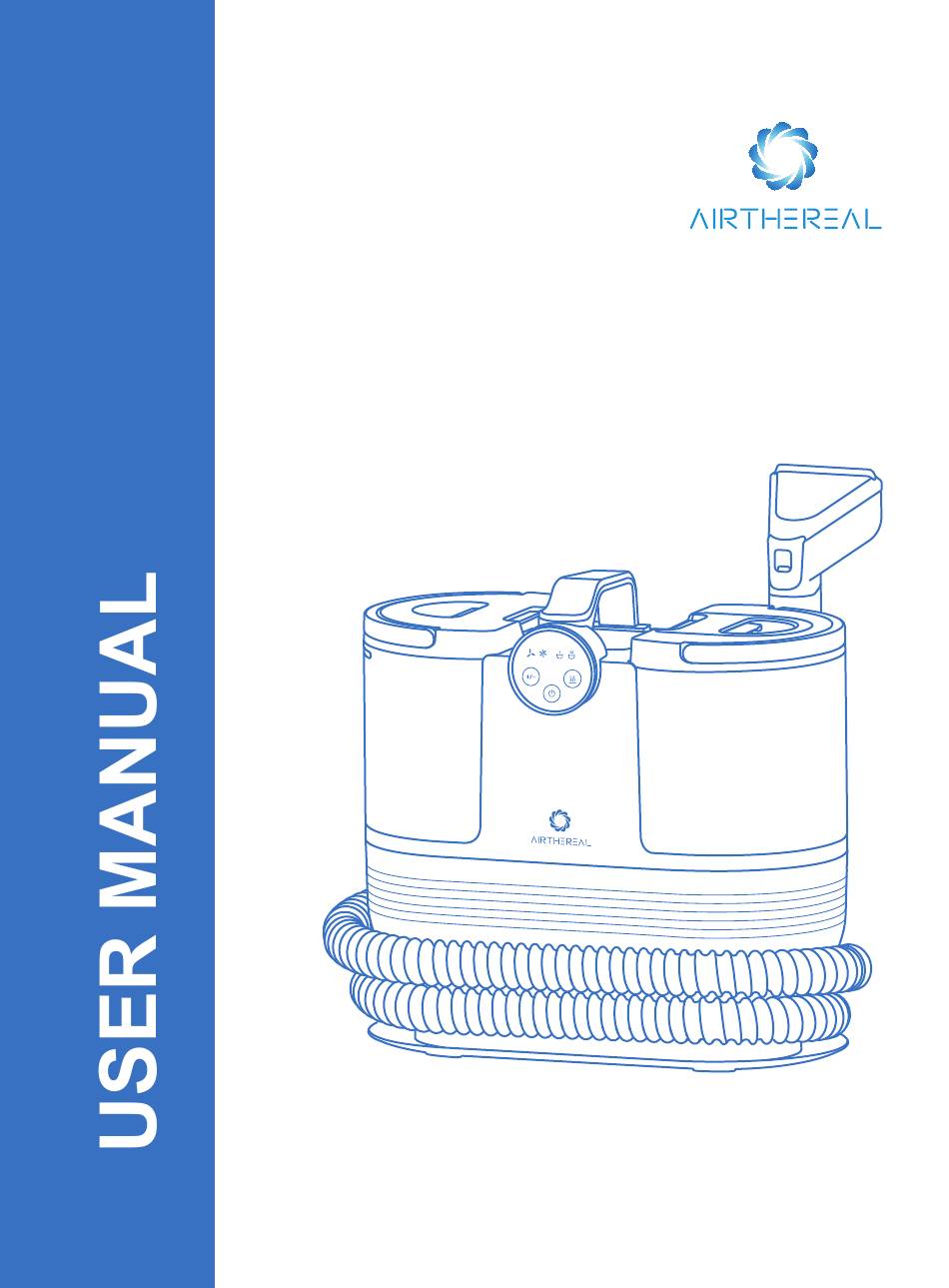

- Page 1 Model: S1 UPHOLSTERY CLEANING MACHINE Please read this user manual in its entirety before use and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS ·····························································································································02 SAFETY INSTRUCTIONS ·········································································································································03 SPECIFICATIONS ·············································································································································03 COMPONENTS ············································································································································04 PREPARATION ···········································································································································05 INSTRUCTIONS ·················································································································································07 OPERATING ···············································································································08 MAINTENANCE AND CLEANING ···································································································································09 TROUBLESHOOTING ···································································································································10 LIMITED WARRANTY... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS: To avoid the risk of serious injury when using your upholstery cleaner, basic safety precautions must be followed, including but not limited to the following. Do not submerge the power cord in water. Do not use the upholstery cleaner when the power cord and plug are broken or the plug becomes loose. Do not damage the power cord. -
Page 4: Specifications
SPECIFICATIONS Product Name Upholstery Cleaning Machine Model Rated Voltage 120V 60Hz Rated Power 1200W Vacuum Power 14 KPa Clean: 61OZ (1800ml) Water Tank Capacity Dirty: 32OZ (950ml) Ambient Operating Temp 32°F-122°F Waterproof Level IPX4 Product Size 12.6 x 8.9 x 18.9 Inches Net Weight 9.3 Lbs COMPONENTS... -
Page 5: Preparation
Accessories Standard Brush Wide Brush T-Shaped Brush Self-Cleaning Brush User Manual Cleaning Brush Bracket Hanging Hook Hose PREPARATION Remove the the hanging hook and handle Snap the hanging hook onto the right side of bracket accessory. the back cover. Snap the handle brackets onto the slots of the back cover. -
Page 6: Instructions
Mount the appropriate cleaning brush head as needed. INSTRUCTIONS Remove the clean water tank from the body and Install the clean water tank into the body. fill it with clean water. Warn: Use bubble-free cleaning fluid to avoid damage to the upholstery cleaner. - Page 7 Allow fabric to absorb water and cleaning Press the water spray button to spray clean water. solution, if used. Note: For ordinary stains, pour cleaning liquid into the cleaning tank and spray water on the stains. After spraying water, the cleaning brush is used to wipe repeatedly, and the stains and dirty water are sucked into the dirty water tank.
-
Page 8: Operating
OPERATING In order to avoid blocking the air duct, please clean up large pieces of garbage or debris in the area to be cleaned before using the upholstery cleaner. This may include large pieces of paper, packaging film, coins, or other large, solid items. The cleaning appllications of this upholstery cleaner are soft materials such as cloth and plush. -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING Attention: Stop running that upholstery cleaner and unplug it before maintenance or cleaning. Cleaning of body Surface dirt and smudges can be wiped with a damp cloth. Stubborn dirt can be wiped with a damp cloth with detergent and then cleaned with a dry cloth dipped in water. After every use Remove all dirty parts from the body, rinse thoroughly with water, and air dry. -
Page 10: Troubleshooting
Refer to the instructions for does not work after the and the protective mode activates. the protective mode. switch is turned on. Contact Airthereal for support. The internal line or power cord is broken. Remove the nozzle blockage Nozzle blockage. -
Page 11: Limited Warranty
Who's covered? This limited warranty is only effective for the original purchaser. It is non-transferable. How to request warranty services? To obtain the benefit of this warranty, please email support@airthereal.com. Our customer service team will address your issue as soon as possible! - Page 12 Always here to help you www.airthereal.com WARNING Cancer and Reproductive Harm www.p65warnings.ca.gov Produced for: West Ryder Technology LLC 2330 Paseo Del Prado STE C304 Las Vegas, NV 89102 V 202311...
