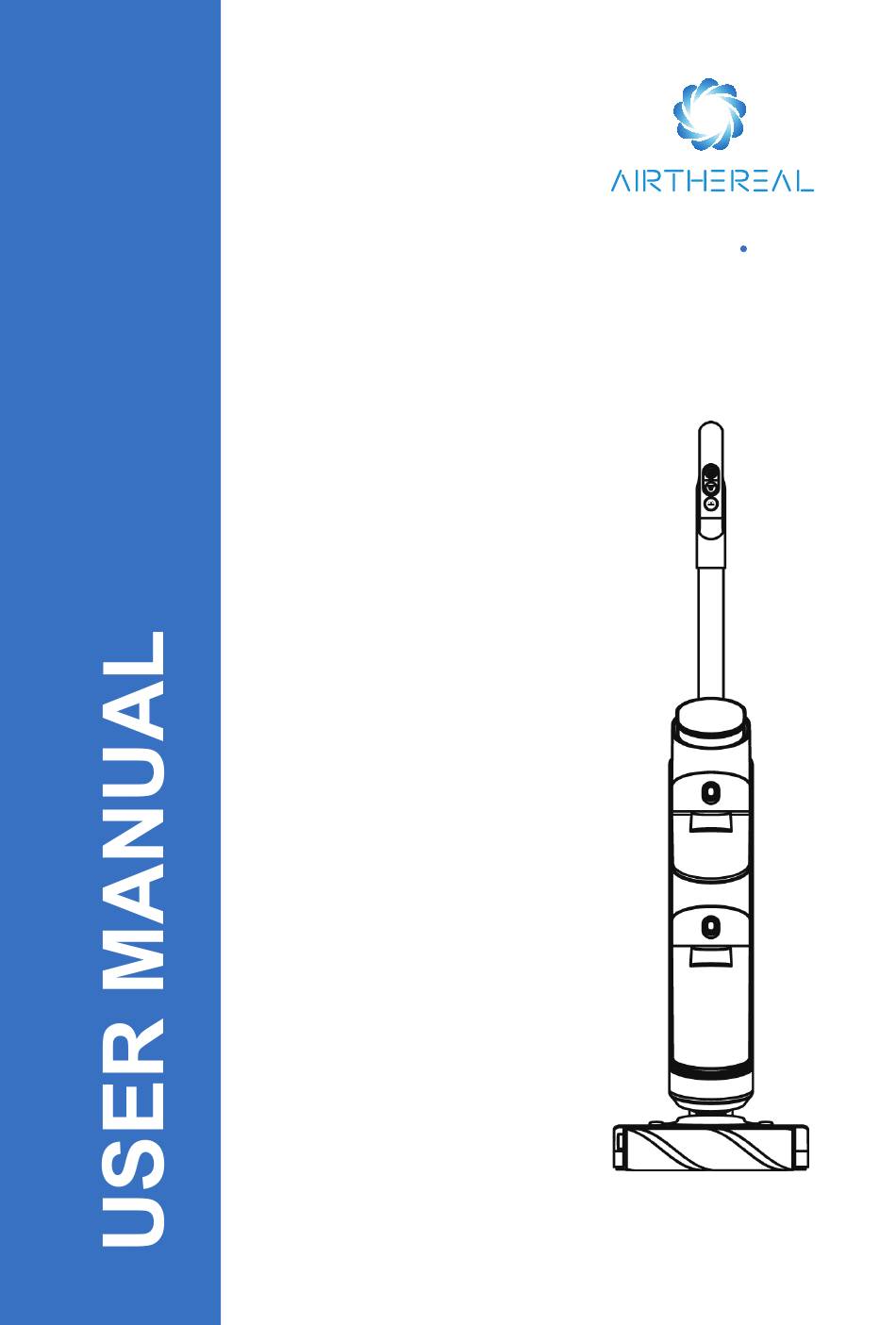

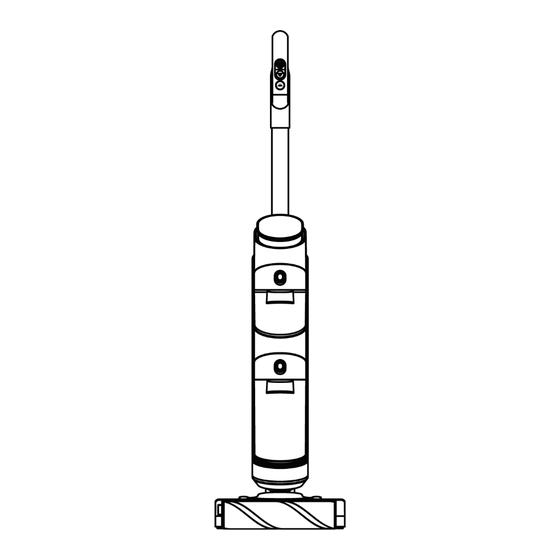

- Page 1 Model V2 VACTIDE WET DRY VACUUM CLEANER Please read this user manual in its entirety before use and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ········································································02 SPECIFICATIONS ····················································································04 COMPONENTS ························································································05 PRODUCT ASSEMBLY ············································································07 PRODUCT OPERATION ··········································································07 ROUTINE CLEANING ··············································································12 TROUBLESHOOTING ··············································································14 LIMITED WARRANTY ··············································································15... -
Page 3: Safety Instructions
In case of electric leakage, motor overheating, abnormal sound, peculiar smell, and/or weak suction, stop using immediately and contact Airthereal customer support. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the... - Page 4 Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance. Wipe with a dry cloth when cleaning the machine. Do not use gasoline or corrosive cleaners that can crack and discolor the shell.
-
Page 5: Specifications
SPECIFICATIONS Product Name Wet Dry Vacuum Cleaner Model AC Input 110V 50/60HZ Voltage DC 21.6V Battery Capacity 4000mAh Rated Power 200W Dirty water: 600ml Tank Capacity Clean water: 700ml Charging Time <240 mins Product Size 11.0 x 10.3 x 43.7 inch (280 x 262 x 1110 mm) Net Weight 10.1 Lbs (4.6 kg) -
Page 6: Components
COMPONENTS Product ON/OFF Mode Self-cleaning Display Screen Release Button Clean Water Tank Rolling Brush Dirty Water Tank Release Button Roller Rush Charging Base Charging Pins... - Page 7 Status Display Self-Clean Auto Mode Clean Water Rolling Tank Low Brush Error Max Mode Battery Level Dirty Water Tank Full Drying Suction Mode Contents Introduction HEPA Filter Handle Clean Brush Storage Base HEPA Filter Clean Fluid Rolling Brush Main Body Rolling Brush Charging Base Storage Base...
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Insert the handle into the corresponding top position of the main body. There are buckles for positioning. If you hear a clicking sound when the handle snaps into place, the installation is complete. “Click” Handle Disassembly Use a non-sharp auxiliary tool (such as a bamboo stick) to poke into the small hole shown in the figure to hold the handle removal key, and at the same time pull out the handle vertically upward. - Page 9 2. Open the cover and add clean water, not exceeding the MAX line. (For deep cleaning, please add 16ml (about two bottle caps) of floor cleaning solution.) Water Line 3. Put the clean water tank back into the vacuum body until it clicks into place Note: If you need to use a cleaning solution, please use the cleaning liquid that comes with this product or another low-foam detergent to prevent product damage.
- Page 10 2. The ON/OFF button is on the handle as shown in the picture below. Press the button to turn on the appliance. he default mode is the Auto mode. Press the button again to turn off the appliance. When the machine is running, press the Mode button to switch between Auto/ Max/Suction modes.
- Page 11 2. Place the washer into the charging base as shown in the picture below. Warning: • Only charge the appliance with the adaptor supplied by Airthereal. • During long periods of not being used, the appliance must be charged once every 3 months for optimal performance.
- Page 12 4. Enter air dry mode The brush air dry system will auto start after cleaning. The rolling brush will rotate every three minutes to dry evenly and thoroughly. The entire process will last for around two hours. Note: Pressing the Mode Switch button can turn the Air dry function on/off during charging.
-
Page 13: Routine Cleaning
• Please make sure each part is installed correctly or the appliance may not work properly. • After maintenance, place the appliance on the storage tray vertically. Do not expose the appliance to direct sunlight. Store it indoors in a dry place. ROUTINE CLEANING Cleaning the vacuum cleaner body 1. - Page 14 Clean the Rolling Brush Clean and dry the brush roller after every use. 1. Pull up the left handle and remove 2. Remove any tangled hair or debris on the the rolling brush. brush roller using the brush cleaning tool. 3.
-
Page 15: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solution Clean the clog in the tube Power light Flashing Motor abnormal and restart the appliance Out of Power or Low Fully recharge the appliance Power before using Appliance Not Working The rolling brush is entangled Clean the rolling brush with objects like hair Dirty water has reached its... -
Page 16: Limited Warranty
This limited warranty is only effective for the original purchaser. It is non-transferable. How to request warranty services? To obtain the benefit of this warranty, please email support@airthereal.com. Our customer service team will address your issue as soon as possible! - Page 17 Always here to help you www.airthereal.com WARNING Cancer and Reproductive Harm www.p65warnings.ca.gov Produced for: West Ryder Technology LLC 2330 Paseo Del Prado STE C304 Las Vegas, NV 89102 V 202305...
