TVS EL 300 MT Instructions

Read the entire operating instructions before starting the installation.
Check that all the parts are in the package. Contact your dealer if anything is missing.
The content of the package:
- 1 piece. Electric cartridge (300 watts)
- 1 piece. Blind plug
Mounting:
The heater may only be installed in water-borne towel radiators.
The heater may only be installed by an authorized electrician.
DATA: 300 watts 230 V AC
1.5 m cable with plug
Max. 2.7 W / cm2
IP44 approved
The heater must always be mounted in the bottom of the radiator. It is optional whether it is right
or left side.
1. Fill the radiator to the lower edge of the upper transverse pipe with clean water.
2. If there is a risk of frost, fill approx. 90% water + approx. 10% glycol (coolant)
3. The filling must be done very slowly to avoid air pockets in the radiator.
4. After mounting and filling, connect the power and give it "full power".
5. After approx. 1 hour of operation, when the radiator is maximally hot, check that the liquid level
is approx. 2 cm from the top edge of the radiator.
6. Any adjustment is made by refilling, resp. aspirate water.
7. Finally, mount the upper end plug and vent valve.
8. Then set the desired temperature on the control buttons.
Instructions for heater EL 300 MT

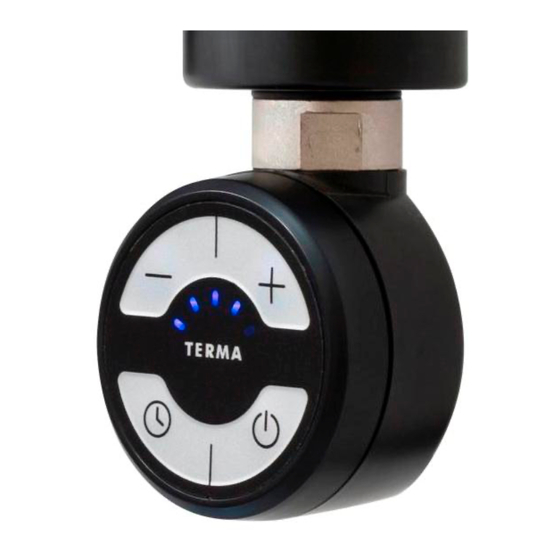

Never screw on the heater control box
(chrome, white or black cylinder)
1
