Summary of Contents for Schluter Systems BTERWL/BW

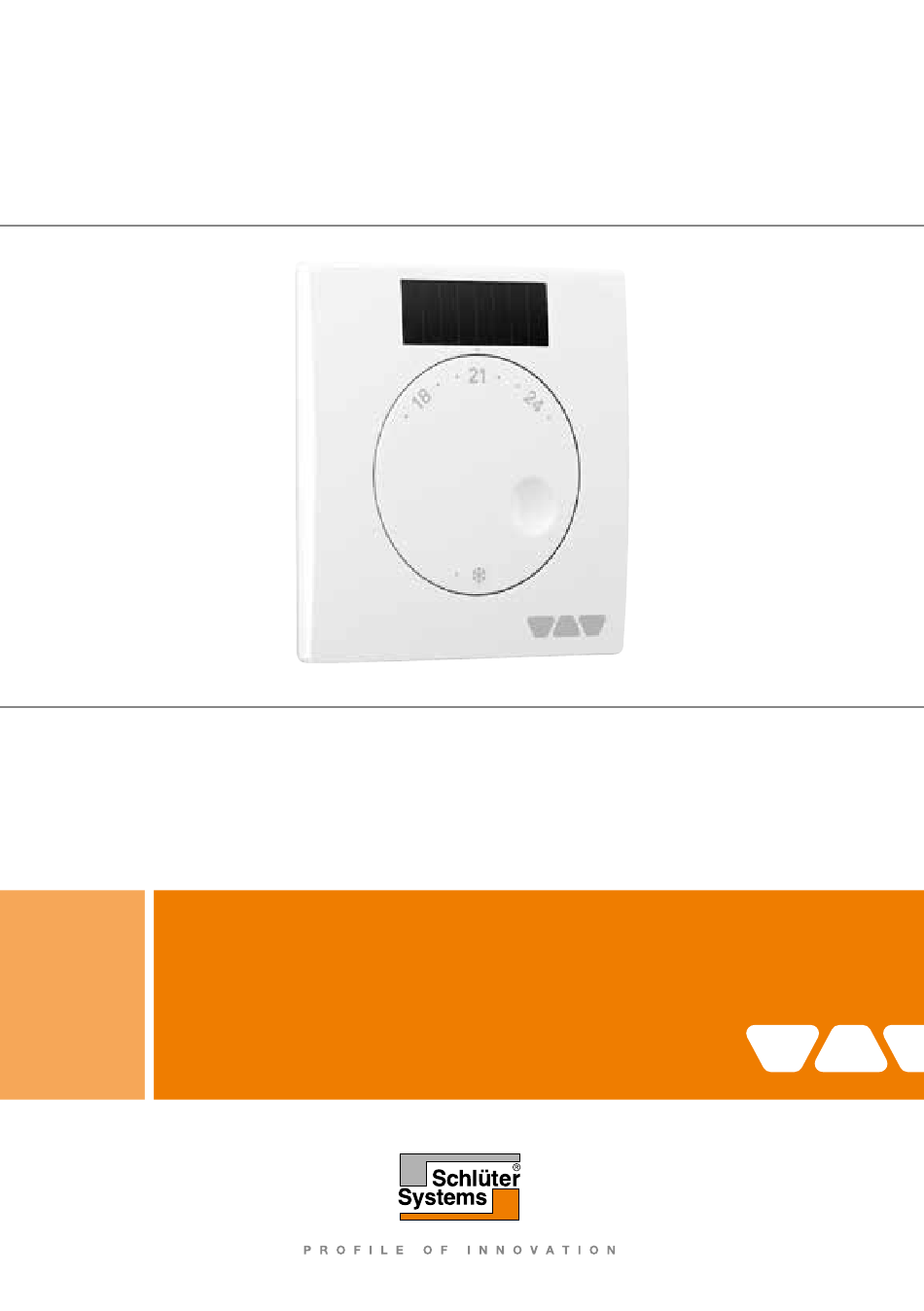

- Page 1 Room sensor WL Art.-No. BTERWL/BW Operating Instructions...
-
Page 2: Information On Safety
1. About these operating instructions 1.1 About these operating instructions These operating instructions describe the room sensor WL (also referred to as “product” in these operating instructions). These operating instructions are part of the product. • You may only use the product if you have fully read and understood these operating instructions. •... -
Page 3: Transport And Storage
3. Transport and storage The product may be damaged as a result of improper transport or storage. NOTICE IMPROPER HANDLING • Verify compliance with the specified ambient conditions during transport or storage of the product. • Use the original packaging when transporting the product. •... - Page 4 4.3 Function The single room temperature controller is used to control the temperature in rooms with underfloor heating system (heating/cooling). The product measures the actual temperature of the corresponding room. The desired set temperature is selected via the rotary control of the correspond- ing product.
- Page 5 5. Mounting 5.1 Preparing mounting In case of using multiple products, create an installation diagram that shows the individual installation locations prior to installation. Label the individual products with a number or the name of the installation location as shown in the diagram. B Make sure all connected devices are accessible at the installation location.
-
Page 6: Montage
Montage Kleben Sie das Produkt an unebene Stick the product to uneven walls using the adhesive dots supplied. Wände mit den mitgelieferten Klebe- Screw or glue the product to even walls. punkten an. Bei ebenen Wänden schrauben oder kleben Sie das Pro- dukt an. - Page 7 Schraubendreher wieder in die Ausgangs- wieder in die Ausgangs- position. position. BTERWL/BW 6. Setzen Sie das Gehäuse- oberteil und Drehknopf 7. Fit the upper part of the housing and the rotary dial to the bottom auf das Gehäuseunterteil. part of the housing. Verify correct position with reference to the axis Achten Sie beim Einset- of rotation when inserting the rotary dial.
- Page 8 5.3 Inserting a battery (optional) If daylight is below 200 Lux, use an optional battery (see “Technical data”, not included in the scope of supply). 1. Remove the twist-lock plate and the top housing (see “Installing the product”). 2. Insert a battery into the battery compartment (A) of the top housing. The positive terminal (+) must be visible after inserting the battery. 3.
-
Page 9: Operation
7. Operation 7.1 Adjusting the room temperature 1. Adjust the desired temperature at the thermostat. - Without temperature reduction: The room temperature is set to the adjusted value - With temperature reduction: The room temperature is set to a value 4 K below the adjusted value Fig. -
Page 10: Betrieb
Begrenzer mit der Ein- stellkante (B) auf den gewünschten Wert für die Maximaltemperatur und legen den roten Begren- zer dort ab. BTERWL/BW 3. Drehen Sie die Nocken- schraube am Produkt in Ausgangsposition zurück, damit der Drehknopf wie- der eingesetzt werden kann. -
Page 11: Maintenance
3. Dispose of the product and the optional battery separately. 11. Warranty See our terms and conditions or your purchase contract for information on warranty. 12. Spare parts and accessories Product Product designation Part no. Figure Room sensor WL BTERWL/BW... -
Page 12: Learn More Online
Learn more online Would you like to know more about Schlüter-Systems? The quickest way is to visit our website. schluter.co.uk You can also follow us on Instagram, Facebook and YouTube. Schlüter-Systems KG · Schmölestraße 7 · D-58640 Iserlohn Tel.: +49 2371 971-1261 · Fax: +49 2371 971-1112 · info@schlueter.de · schlueter-systems.com Schlüter-Systems Ltd ·...
