Victor ML100 Quick Start Manual

Mining led luminaire
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Victor Products Ltd
Unit 3A, Tyne Dock East Side
Port of Tyne,
South Shields,
Tyne and Wear
NE33 5SQ
United Kingdom
Tel : +44(0)191 2808000
Fax : +44(0)191 2808080
TYPE ML100 MINING LED LUMINAIRE
EXPLOSION PROOF LUMINIARE WITH FLAMEPROOF PROTECTION (TYPE d)
Certification number ITS 08 ATEX 15815 I M2 Ex db I Mb IP65
Certification number IECEx ITS08.0012
Certification number ITS22UKEX0514
The certificate carries the group and category marking: - I M2
Where: I signifies suitability for use in mining and M2 signifies suitability for use in mines where
it must be de-energised in the presence of an explosive atmosphere.
For India only – These luminaires have been designed in accordance with IS/IEC 60079-0:2004 and
IS/IEC 60079-1:2007. Test report number CIMFR/TC/P/H552.
IMPORTANT
1. Read this leaflet carefully before commencing to install the luminaire and retain it for future reference.
2. Check the rating label to ensure that the luminaire is suitable for the supply provided.
3. The operating temperature range is –15°C to + 45°C.
4. The luminaire MUST be earthed.
5. Under NO circumstances should a luminaire be opened, even when isolated, when an explosive gas
or dust environment is present.
6. The luminaire housing can be manufactured from brass, steel, or stainless steel.
7. DO NOT LOOK DIRECTLY INTO BEAM.
INSTALLATION
a) Mounting
Making Hazardous
Environments Work
Ex db I Mb IP65
I M2 Ex db I Mb IP65
Item number 193080
2813
0518
January 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the ML100 and is the answer not in the manual?

Questions and answers

Related Manuals for Victor ML100

Summary of Contents for Victor ML100

  • Page 1 Tel : +44(0)191 2808000 Fax : +44(0)191 2808080 Making Hazardous Environments Work TYPE ML100 MINING LED LUMINAIRE EXPLOSION PROOF LUMINIARE WITH FLAMEPROOF PROTECTION (TYPE d) Certification number ITS 08 ATEX 15815 I M2 Ex db I Mb IP65 Certification number IECEx ITS08.0012...

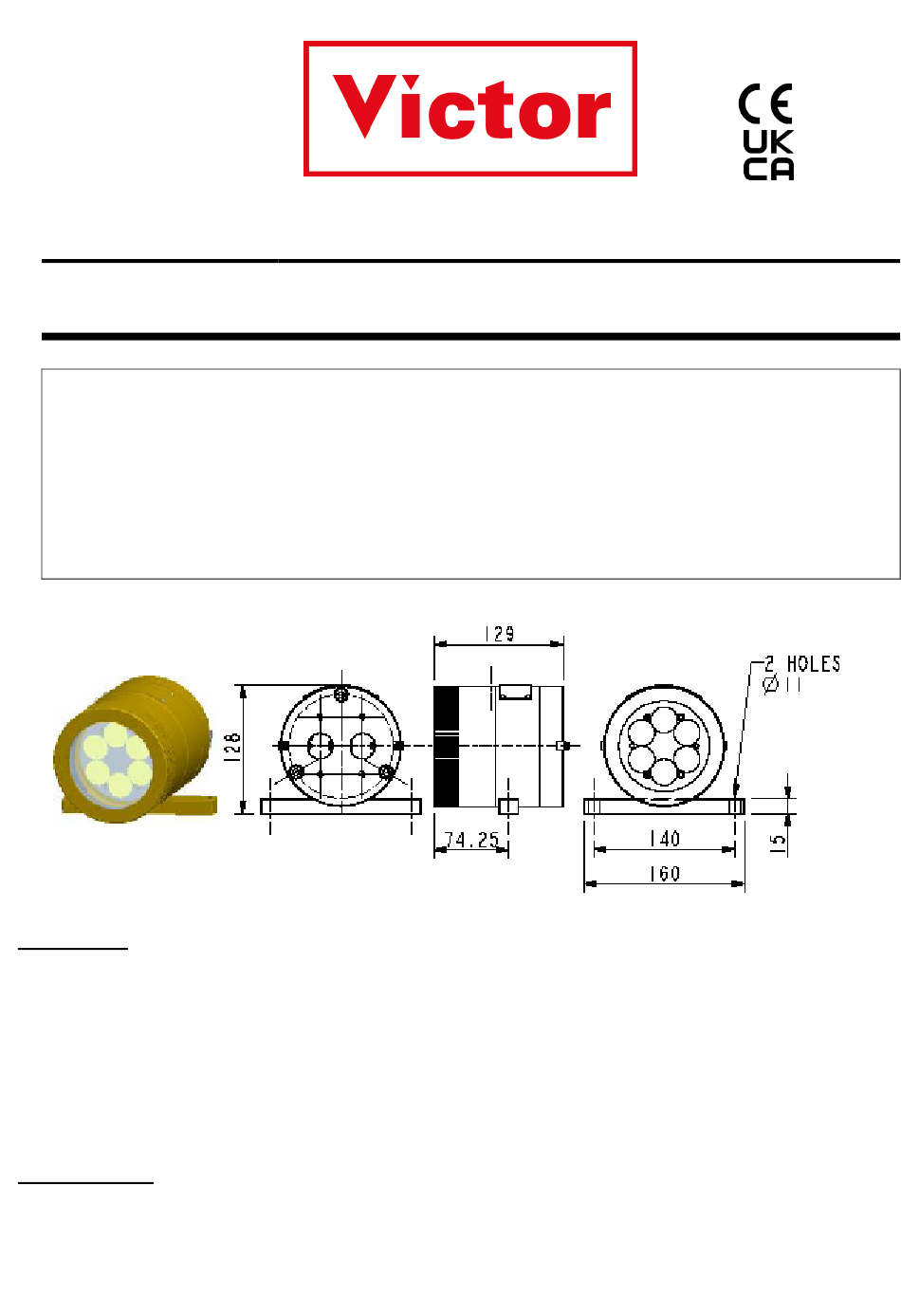

  • Page 2 The luminaire is supplied with mounting brackets as shown in the diagram on the front of this leaflet. The luminaire must be securely fastened in place. It can be mounted in any attitude. b) Cable entries Up to two cable entry holes for the accommodation of a suitable certified flameproof cable entry device/blanking plug ( with or without the interposition of a suitable flameproof adaptor ).
