TYPE ML102 LED FACE LIGHT
EXPLOSION PROOF LUMINIARE WITH FLAMEPROOF PROTECTION (TYPE d)
Certification number SIRA 09 ATEX 1328
Certification number IECEx SIR 09.0134
Certification number CSAE 21UKEX1316
The certificate carries the group and category marking: - I M2
Where: I signifies suitability for use in mining and M2 signifies suitability for use in mines
where it must be de-energised in the presence of an explosive atmosphere.
IMPORTANT
1. Read this leaflet carefully before commencing to install the luminaire and retain it for future reference.
2. Check the rating label to ensure that the luminaire is suitable for the supply provided.
3. The operating temperature range is –15°C to + 45°C.
4. The luminaire MUST be earthed.
5. Under NO circumstances should a luminaire be opened, even when isolated, when an explosive gas
or dust environment is present.
6. If using non-threaded glands, the 2 off screws per gland must be M6 socket head cap screws, steel or
stainless steel, grade 8.8min to ISO 898-1, and must have a thread engagement between 6mm and
10mm into the gland fixing holes.
7. DO NOT LOOK DIRECTLY INTO LUMINAIRE.
Making Hazardous
Environments Work
I M2 Ex db I Mb IP65
Ex db I Mb IP65
I M2 Ex db I Mb IP65
Item number 193102
2813
0518
August 2021
Advertisement
Related Manuals for Victor ML102
Summary of Contents for Victor ML102
- Page 1 Tel : +44(0)191 2808000 Fax : +44(0)191 2808080 Making Hazardous Environments Work TYPE ML102 LED FACE LIGHT EXPLOSION PROOF LUMINIARE WITH FLAMEPROOF PROTECTION (TYPE d) Certification number SIRA 09 ATEX 1328 I M2 Ex db I Mb IP65 Certification number IECEx SIR 09.0134...

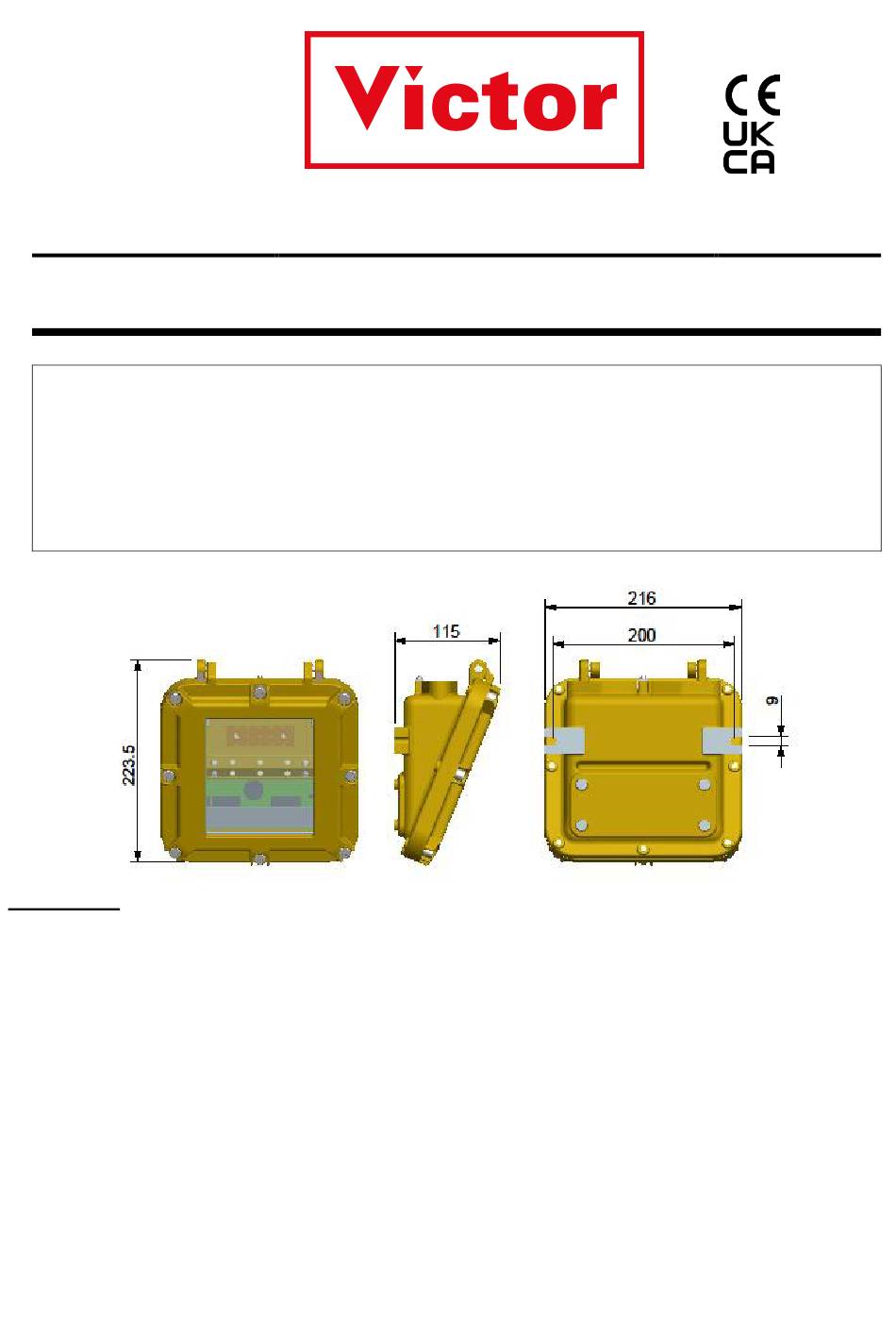

- Page 2 The luminaire has mounting brackets as shown on the diagram above. The luminaire must be securely fastened in place. It can be mounted in any attitude. If magnets are to be used for mounting, they can be supplied by Victor Products Limited. b) Cable entries Up to two cable entry holes for the accommodation of a suitable certified flameproof cable entry device/blanking plug ( with or without the interposition of a suitable flameproof adaptor ).
- Page 3 FITTING OR REPLACING LED STRIPS OR DAMAGED LAMPLGLASS ASSEMBLIES 1. Remove all eight socket head cap screws from the front of the unit. The hinged lampglass assembly can then be opened. 2. The LED strips and/or driver assembly can be removed by disconnecting the cables from terminal block and from the push on terminals on the driver assembly.
- Page 4 NO modifications should be made to the luminaire without the knowledge and approval of the manufacturer. HEALTH AND SAFETY AT WORK etc. ACT 1974 In the United Kingdom all equipment must be installed, operated and disposed of (as required) within the legislative requirements of the Health and Safety at Work etc.
- Page 5 BLANK...
- Page 6 BLANK...
- Page 7 South Shields, Tyne and Wear NE33 5SQ United Kingdom TYPE ML102 LED FACE LIGHT Certification number CSAE 21UKEX1316 Victor Products Ltd Hereby declare our sole responsibility that the product which is the subject of this declaration is in conformity with the following standards or normative documents.
-
