ASSEMBLY INSTRUCTIONS
SHGP ADDY BALCONY ADIRONDACK
SKU 76314423/76314435/76314447/76314459
Manufactured for Rooms To Go
76314461/76314473/76314485
Thanks for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the
carton during shipment. Identify and count all parts and compare with the Hardware List below
Caution: Loosely pre-assemble all the bolts first. Do not fully turn until all bolts are inserted into the proper holes.

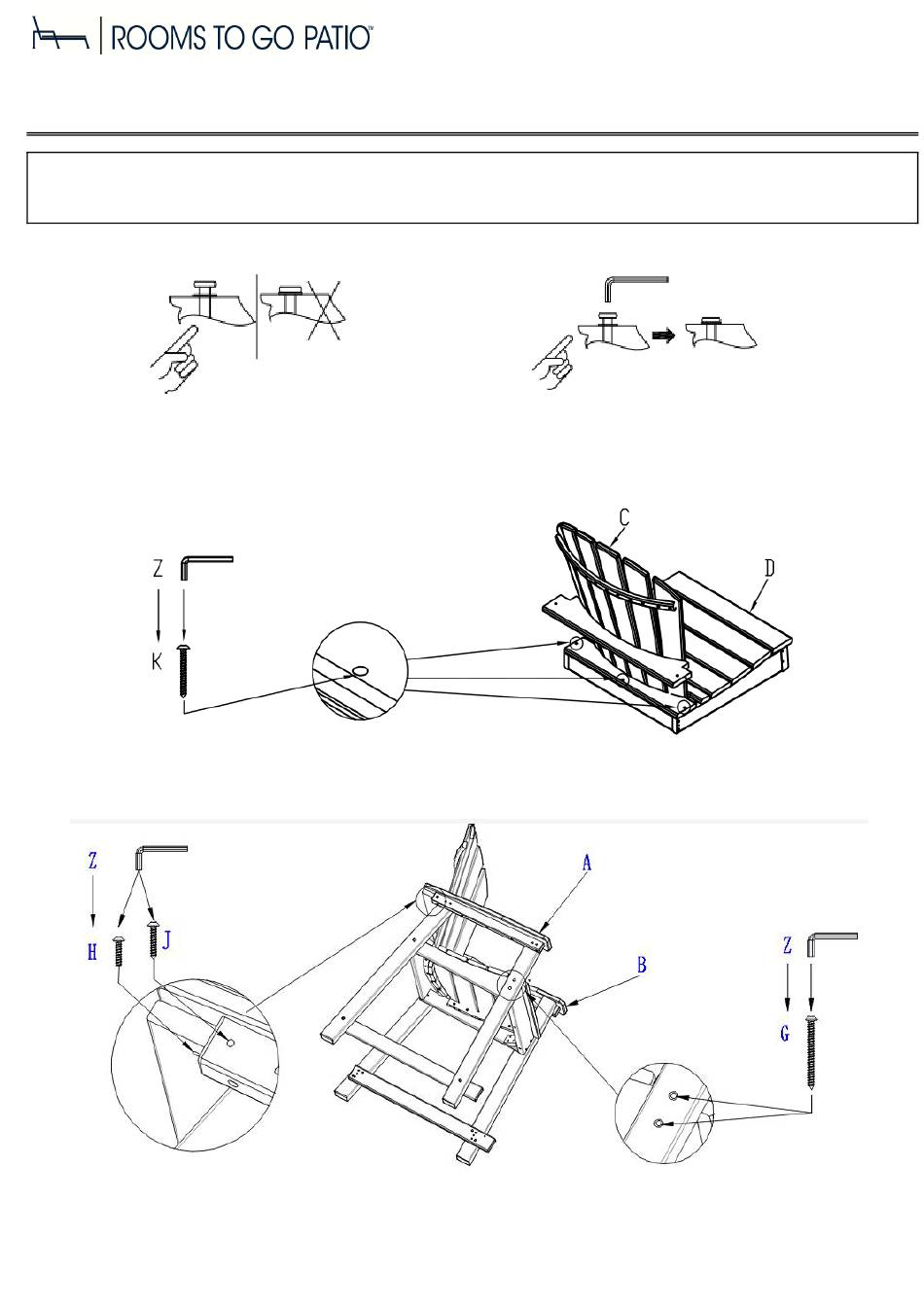

Step 1: Place the Seat(Part D) on a clean, soft surface as a blanket or carpet. Assemble the Back(Part C) to the Seat by Bolt(M6*45)(Part K),
tighten with Allen key(Part Z).
Step 2: Assemble the Right/Left Armrest with Leg(Part A&B) to the Back by Bolt(Part H&J), to the Seat by Bolt(Part G), and tighten with Allen
key(Part Z).
