Riverside Furniture Intrigue 39370 Assembly Instructions Manual

email: info@riverside-furniture.com
Warning :
- Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
- To prevent possible scratches and damage, this furniture MUST BE ASSEMBLED BY TWO PEOPLE on a soft surface such as a
blanket or carpet.
Queen Panel Headboard - 39370
H-A
Allen Head Bolt
Ø5/16''-18 x 1-9/16"
2 pcs.
H-E
Queen Storage Footboard - 39377
1 pc.
F-A1
Queen Panel Footboard - 39371
F-A2
Storage Bed Rails - 39376
2 pcs.
R-A1
Bed Rails - 39372
2 pcs.
R-A2
5/0 Queen Bed
39370 -- 4/6-5/0 Panel Headboard
39371 -- 5/0 Panel Footboard
39372 -- 5/0-6/6 Bed Rails
Assembly Instructions
Hardware and Parts packed with the Headboard
Headboard Post Left
1 pc.
H-B
Allen Head Bolt
Ø5/16''-18 x 2"
10 pcs.
H-F
Hardware and Parts packed with the Footboard
Slats 60-7/8"
1 set.
F-B
Slats 60-7/8"
1 pc.
F-B
Hardware and Parts packed with the Bed Rails
Curved Washer Spring Washer
Ø5/16''
8 pcs.
R-B
R-C
Curved Washer Spring Washer
Ø5/16''
8 pcs.
R-B
R-C
Intrigue
Bedroom
Headboard Post Right
1 pc.
H-C
Spring Washer
Ø5/16''
12 pcs.
H-G
Center Slats Support
1 pc.
F-B1
Support leg
1-1/4" x 1-1/4" x 6-1/4"
1 set.
F-C
Nut
Ø5/16''
Ø5/16" x 12mm
8 pcs.
R-D
Nut
Ø5/16''
Ø5/16" x 12mm
8 pcs.
R-D
39370 -- 4/6-5/0 Panel Headboard
39377 -- 5/0 UPH Bench Storage FB
39376 -- 5/0-6/6 Storage Side Rails
Made in Viet Nam

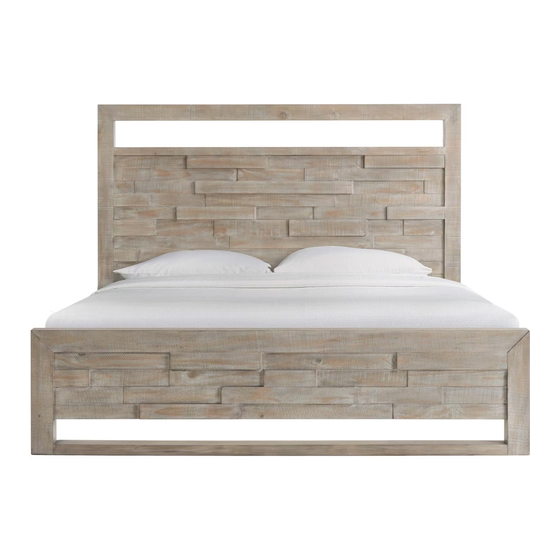

Queen Panel Bed
Headboard Stretcher
1 pc.
H-D
Flat Washer
Ø5/16'' x Ø19mm
12 pcs.
H-H
Support leg
1-1/4" x 1-1/4" x 12"
5 pcs.
F-C
5 pcs.
F-D
All - Thread Bolt
Ø5/16''-18 x 3-5/32"
8 pcs. 8 pcs.
R-E
All - Thread Bolt
Ø5/16''-18 x 3-5/32"
8 pcs. 8 pcs.
R-E
Page 1 of 7
1 pc.
Allen key 4mm
1 pc.
H-I
Screw Ø4 x 1 - 3/16"
26 pcs.
F-D
Screw Ø4 x 1 - 3/16"
10 pcs.
Open Wrench 12 mm
1 pc.
R-F
Open Wrench 12 mm
1 pc.
R-F
