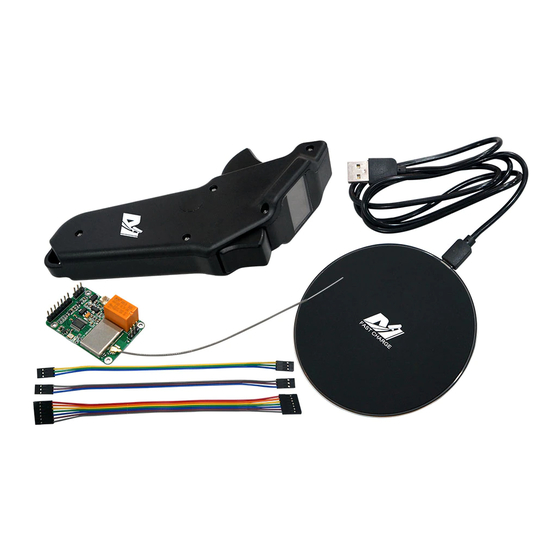

MayTech MTSKR1905WF User Manual

Waterproof remote control
Hide thumbs Also See for MTSKR1905WF:
Table of Contents

Advertisement

Quick Links

Download this manual
Maytech MTSKR1905WF Waterproof
Remote Control User Manual V3.0
1. Remote (transmitter) appearance： ..........................................................................................2
2. Receiver appearance ................................................................................................................... 2
3. Switch on/off ................................................................................................................................ 2
4. Display ..........................................................................................................................................2
5. Cruise Speed Control in SF (Eurf) Mode ................................................................................. 3
6. Charging .......................................................................................................................................3
7. Main Menu Description ..............................................................................................................4
(1) Thr. Mode ................................................................................................................................5
(2) 1st Speed Mode ....................................................................................................................... 5
(3) 2nd Speed Mode ......................................................................................................................5
(4) 3rd Speed Mode ...................................................................................................................... 5
(5) Batt. Type ................................................................................................................................ 6
(6) Batt. Ser Num ..........................................................................................................................6
(7) Pair .......................................................................................................................................... 6
(8) Calibration ...............................................................................................................................7
(9) Data Source (Default:MTSESC-WP32) ..................................................................................7
(10) M.Pole Pairs (Default: 7) .................................................................................................... 11
(11) Wheel Dia. (Default: 90) .....................................................................................................12
(12) Gear Ratio (Default: 1.0) .....................................................................................................12
(13) Dist. Unit (Default: km) ...................................................................................................... 12
(14) VESC Thr. (Default: None) ................................................................................................ 12
(15) Dist. Rst ...............................................................................................................................13
(16) Thr. Lock(Default:OFF) ......................................................................................................13
(17) RF Mode (Default:ECO) .....................................................................................................14
8. Other Option Functions you may use in your applications: ................................................. 14
Using Video for your reference:
https://youtu.be/fMK0k7K8LBs
Maytech Waterproof Remote Control User Manual V3.0_20240416
（Firmware V3.0 or higher）
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTSKR1905WF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MayTech MTSKR1905WF

Summary of Contents for MayTech MTSKR1905WF

  • Page 1: Table Of Contents

    Maytech Waterproof Remote Control User Manual V3.0_20240416 Maytech MTSKR1905WF Waterproof Remote Control User Manual V3.0 （Firmware V3.0 or higher） 1. Remote (transmitter) appearance： ..................2 2. Receiver appearance ........................2 3. Switch on/off ..........................2 4. Display ............................2 5. Cruise Speed Control in SF (Eurf) Mode ................. 3 6.

  • Page 2: Remote (Transmitter) Appearance

    3. Switch on/off 【Switch on】When remote is off, long press the function button 1s, screen displays Maytech logo and firmware version to switch on the remote. 【Switch off】When remote is on, long press the function button 1.5s, screen displays POWER OFF to switch off the remote.

  • Page 3: Cruise Speed Control In Sf (Eurf) Mode

    Maytech Waterproof Remote Control User Manual V3.0_20240416 Following Display Page is different for different Throttle mode/Data source. Please Refer this manual “7. Main Menu Description--(9). Data Source”. 5. Cruise Speed Control in SF (Eurf) Mode When Throttle trigger is at 10%-100% throttle position, press Brake Trigger for 3 seconds, it enters the cruise speed control mode, and the throttle keeps its original output after release throttle trigger.

  • Page 4: Main Menu Description

    Maytech Waterproof Remote Control User Manual V3.0_20240416  When remote battery icon has 2 or less bars, it needs to charge the remote. Please keep remote dry when charging.  Connect wireless charger to power, put remote Charging Point right on the wireless charger;...

  • Page 5: Thr. Mode

    Maytech Waterproof Remote Control User Manual V3.0_20240416 (1) Thr. Mode (Default: Surfboard) 【ESK8.】Electric skateboard mode (SK): Throttle trigger 1.5-2ms PWM; Brake Trigger 1.5-1ms PWM; Zero position 1.5ms PWM; 【Surfboard】Electric surfboard mode (SF): Throttle Trigger 1-2ms PWM; Brake Trigger No PWM output; Zero position 1ms PWM.

  • Page 6: Batt. Type

    Maytech Waterproof Remote Control User Manual V3.0_20240416 select digit; Short press function button to add number. Press Brake Trigger to exit. (5) Batt. Type (Default: 3.7V) (6) Batt. Ser Num (Default: 10S) These two settings are your main battery type and battery cell number in series.

  • Page 7: Calibration

    Maytech Waterproof Remote Control User Manual V3.0_20240416 (8) Calibration Due to environmental changes during use, remote calibration may be out of proportion to the output of PWM signal. Then it needs to do calibration. Select【>8.Calibration】and long press function button for 1 second to enter Sub-menu.
  • Page 8 Maytech Waterproof Remote Control User Manual V3.0_20240416 【MTSESC-WP32】The motor ERPM is obtained by Maytech 32Bit ESC signal wire.
  • Page 9 Maytech Waterproof Remote Control User Manual V3.0_20240416 【VESC】Read all kinds of valid data from VESC through UART port. 【Motor Wire】The motor ERPM is detected by the motor phase wire back electromotive force.
  • Page 10 Maytech Waterproof Remote Control User Manual V3.0_20240416 If your ESC is OPTO ESC without Built-in 5V BEC, Please connect as below:...

  • Page 11: M.pole Pairs (Default: 7)

    Maytech Waterproof Remote Control User Manual V3.0_20240416 【Hall Sensor】The motor ERPM is detected by the state change of the Hall sensor. Select 【>9.Data Source】 and long press function button for 1 second to enter Sub-menu. Long press function button to move * to the option you want. After setting, press brake trigger back to main menu.

  • Page 12: Wheel Dia. (Default: 90)

    Maytech Waterproof Remote Control User Manual V3.0_20240416 (11) Wheel Dia. (Default: 90) This data is only valid in SK mode (for Electric skateboard). It’s to calculate speed and distance. Long Press function button to select digit; Short press function button to add number.

  • Page 13: Dist. Rst

    Maytech Waterproof Remote Control User Manual V3.0_20240416 VESC_TOOL: APP Setting>>General>>APP to USE>>UART； APP Setting>>UART>>Baudrate 115200 bps 2. Current mode throttle of the VESC is controlled by the motor current. To get good throttle linearity, the maximum current must be set in VESC_TOOL to match the maximum current actually needed.

  • Page 14: Rf Mode (Default:eco)

    Maytech Waterproof Remote Control User Manual V3.0_20240416 (17) RF Mode (Default:ECO) Our remote signal has 2 power levels, we define them 1, 2: Level 1< Level 2. 【ECO】Level 1 Signal Strength; Most energy-saving; 【 PRO 】 Level 2 Signal Strength; Working time per charge is less than “ECO” Mode;...

  • Page 15: Some Functions For Your Reference - Use Relay Switch As Safety Switch

    Maytech Waterproof Remote Control User Manual V3.0_20240416  2. Relay Switch -- Max 30V 3A -Max current of relay switch contacts is 3A. Recommend use this switch for water pump or main lighting system. Recommend to connect as following: -When (Short press Function button three times) relay switch is on or off (display of 【1】...
  • Page 16 Maytech Waterproof Remote Control User Manual V3.0_20240416...
