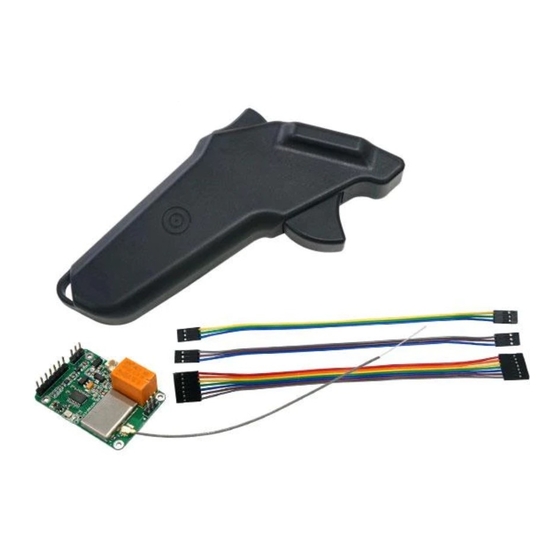

MTSK20WFV2 Remote and receiver for Electric skateboard
Simple instructions
Here're new remote instruction videos:
1-3 speed modes ajustment:
https://youtu.be/bSyG4k-D76U
4-5 battery settings:
https://youtu.be/ibd0431_NSg
7-14
settings:https://youtu.be/O8IgYdbT2-A

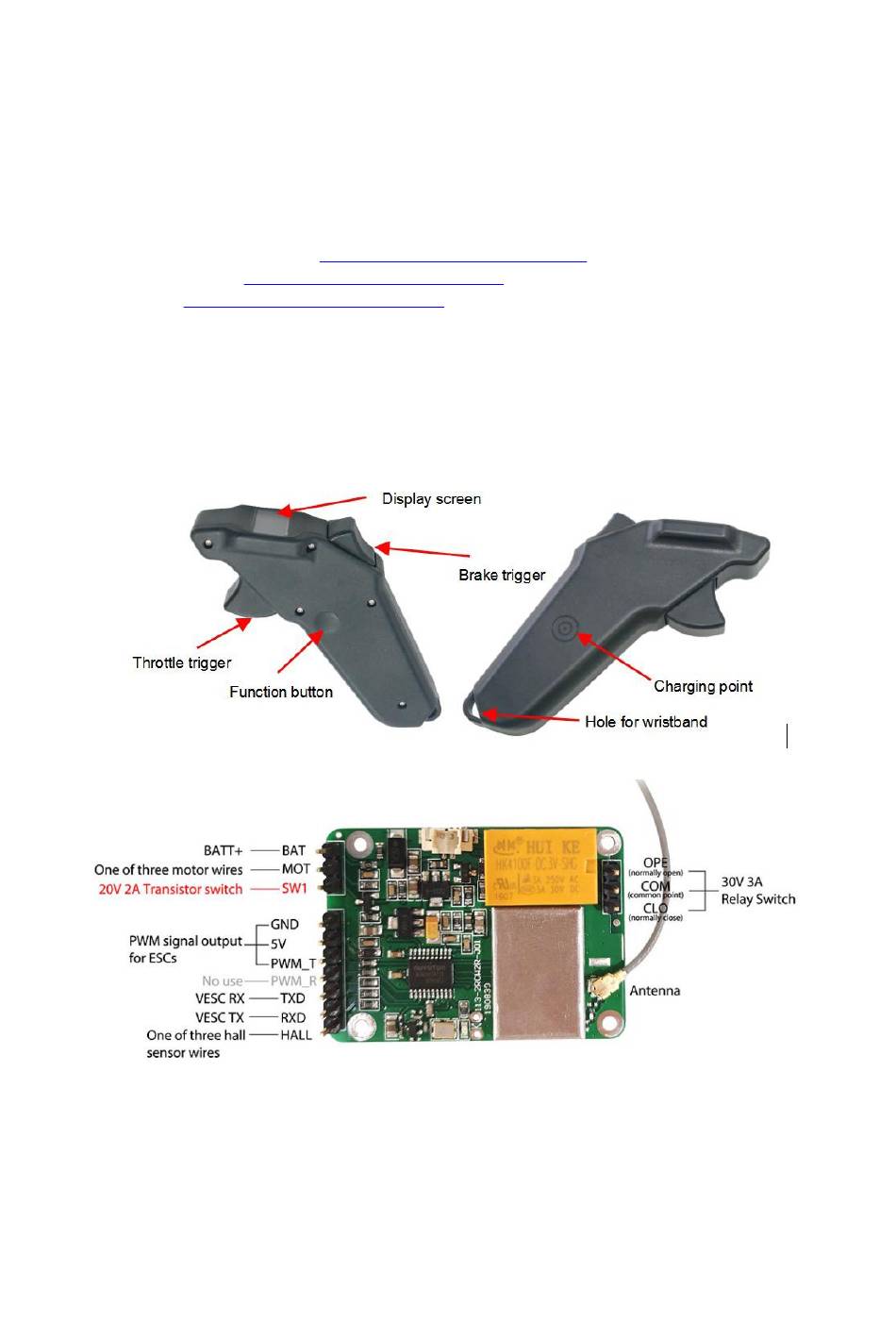

1.Appearance：
Advertisement
Table of Contents
Related Manuals for MayTech MTSK20WFV2
Summary of Contents for MayTech MTSK20WFV2
- Page 1 MTSK20WFV2 Remote and receiver for Electric skateboard Simple instructions Here're new remote instruction videos: 1-3 speed modes ajustment: https://youtu.be/bSyG4k-D76U 4-5 battery settings: https://youtu.be/ibd0431_NSg 7-14 settings:https://youtu.be/O8IgYdbT2-A 1.Appearance：...
- Page 2 20cm. VESC supports UARR and PWM(PPM) throttle control. When use with Maytech waterproof remote, you can select PPM and UART, and select corresponding control in remote (“Data Source” and “VESC Thr”). PPM to control throttle and UART to read voltage/current/ temperature/speed/etc.
- Page 3 3.For non-standard VESC firmware or other normal PWM ESCs: Data Source： Speed sginal is detected by motor phase wire or hall sensor wire or VESC. Please select 【Data Source】 in remote manual and make sure hardware is connected correct and well. The original acquisition speed signal is the electrical speed of the motor (ERPM).
- Page 4 display will be incorrect. Please make sure correct settings of both. If voltage bars only have 2 or less left, the bars and 【xx Batt.】words on screen will flash to remind you charge your battery. 4.Pairing: 1. If remote and receiver are paired successfully before, then no need to pair them again.
- Page 5 When remote battery icon has 2 or less bars, it needs to charge the remote. Please keep remote dry when charging. Connect wireless charger to power, put remote Charging Point right on the wireless charger; it will automatically charge after 2 seconds. ...
