Product Manual

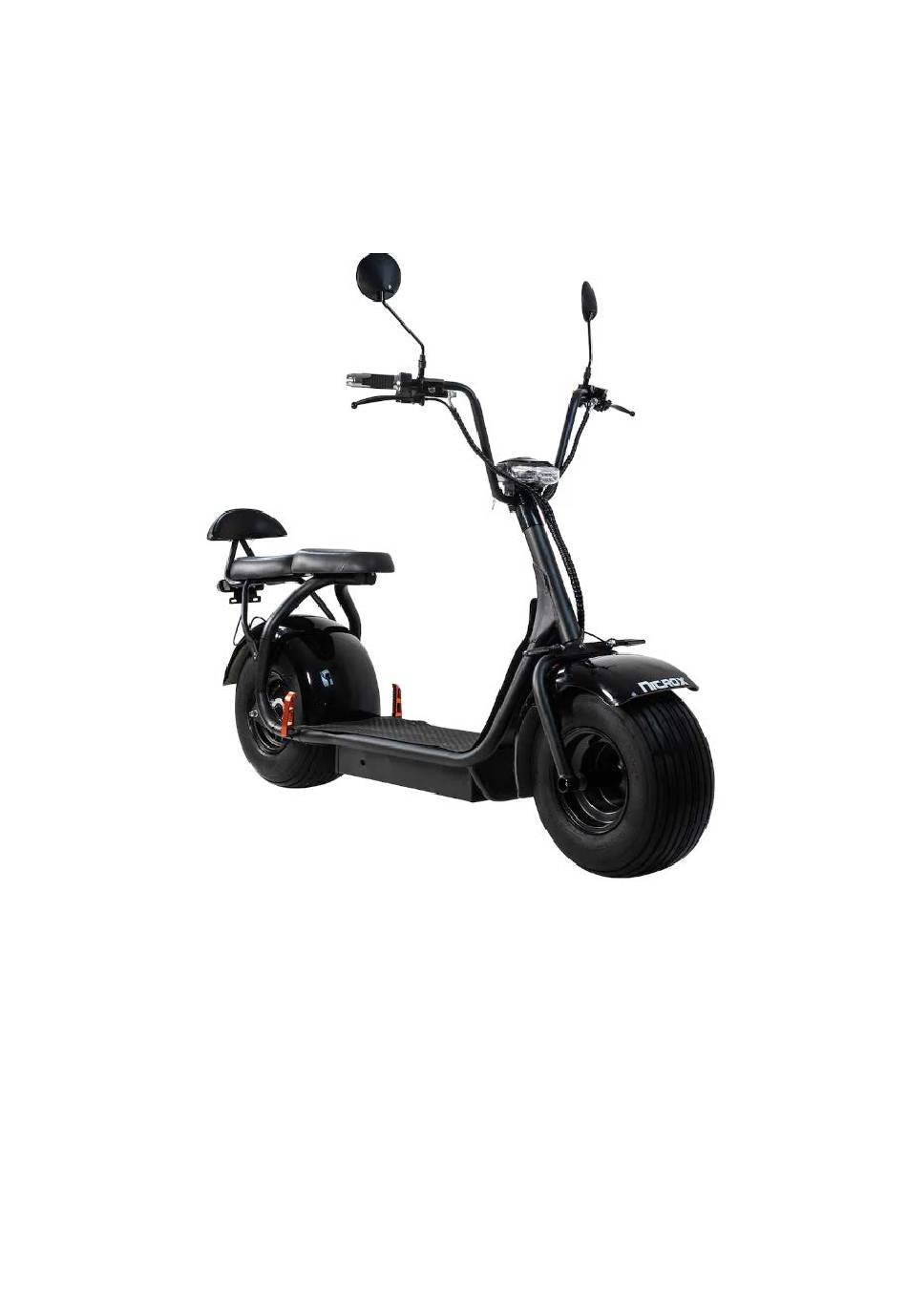

Nitrox Fatbike Street 1500W
Please read this owner's manual
carefully before operating this vehicle.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fatbike Street 1500W and is the answer not in the manual?

Questions and answers

Summary of Contents for Nitrox Fatbike Street 1500W

  • Page 1 Product Manual Nitrox Fatbike Street 1500W Please read this owner’s manual carefully before operating this vehicle.
  • Page 2: Table Of Contents

    Table of content Chapter 1 Introduction....................2 Chapter 2 Parts name and overall view of the whole scooter........2 Chapter 3 Main technical parameters................4 Chapter 4 Installation Instructions................5 Chapter 5 Operation methods and considerations............7 1. Consideration for safe driving................7 2. Correct operation method..................7 3.
  • Page 3: Chapter 1 Introduction

    Chapter 1 Introduction Main features are as follows: 1: Lithium cell: the product has passed all the test required by CE, ROHS and UN3803 certification standards. 2: Cell bin: it is hidden at the central plane underneath the foot plate, so the weight is evenly distributed, compact, convenient and safe.
  • Page 4: Chapter 3 Main Technical Parameters

    Chapter 3 main technical parameters 1: Main technical parameters of the whole scooter: 1: Dimensions of vehicle: 1750*850*1300mm 2: Wheel base: 1300mm 3: Seat height: 700mm 4: Scooter weight with battery: 61kg (battery 7kg) 5: Tyre specification: 225/55-8 (18x9,50-8) 6: Max load: 180kg 7: Designed max.
  • Page 5: Chapter 4 Installation Instructions

    Chapter 4 Installation instructions 1: Handlebar installation Insert the 4 screws like picture shows, through the block which is ment for the handlebar. See pictures below 2: Display installation Place the display/headlight around the handlebar in the middle of the handlebar. Than screw the 2 screws from underneeth though the holes to tighten the display to the handlebar.
  • Page 6 4: Front disc-brake installation Place the frontwheel on the ground, on flat surface. Place the discbrake on top of the wheel. Use the 6 screws and screw the discbrake to the wheel. Note: make sure the screws are well tightened 3: Frontwheel installation Put the frontwheel axel trough the front wheel and add spacers on both sides.
  • Page 7 5: Front caliper-brake installation The Caliper should be tightened to the frontfork and it's holes. Make sure the holes are pointed backwards to the driver and not forward. Screw the caliper to the frontfork with the screws and nuts. Make sure the discbrake is nicely placed in the middle of the caliper.
  • Page 8: Chapter 5 Operation Methods And Considerations

    Chapter 5 Operation method and considerations 1:Considerations for safe driving * Please observe traffic regulations and drive safely. Please control the speed within safe speed range. * Before driving, read these instructions first, and then perform exercise at an open site, make sure you are fully mastering the driving and get familiar with the structure and performance of this vehicle.
  • Page 9 2: Parking method: When parking, be mindful of vehicles and pedestrians nearby. Slowly park the scooter on the right side of a flat road, avoiding slopes. Once parked securely, turn the power supply lock clockwise to remove the key. Then, lock the scooter using a separate lock 3: Charging Upon connecting the power supply lock, the voltage indicator light will illuminate.
  • Page 10 7: Operations methods of the charger and consideration: * When charging, connect the cell box first, then plug in the electric supply AC 220V. Upon completion of charging, follow the reverse procedure: unplug the electric supply AC 220V first, then disconnect the cell box. * During normal charging, the charger's indicator light will be red.
  • Page 11 * Ensure timely charging of the battery to maintain driving range. * During charging, it's normal for the charger to generate heat. As long as the temperature remains below 60℃, it's within normal range. * When charging, place the charger and the entire vehicle in a stable, dry location that is free of flammable or explosive materials and out of reach of children.
  • Page 12: Common Faults And Removal Methods
