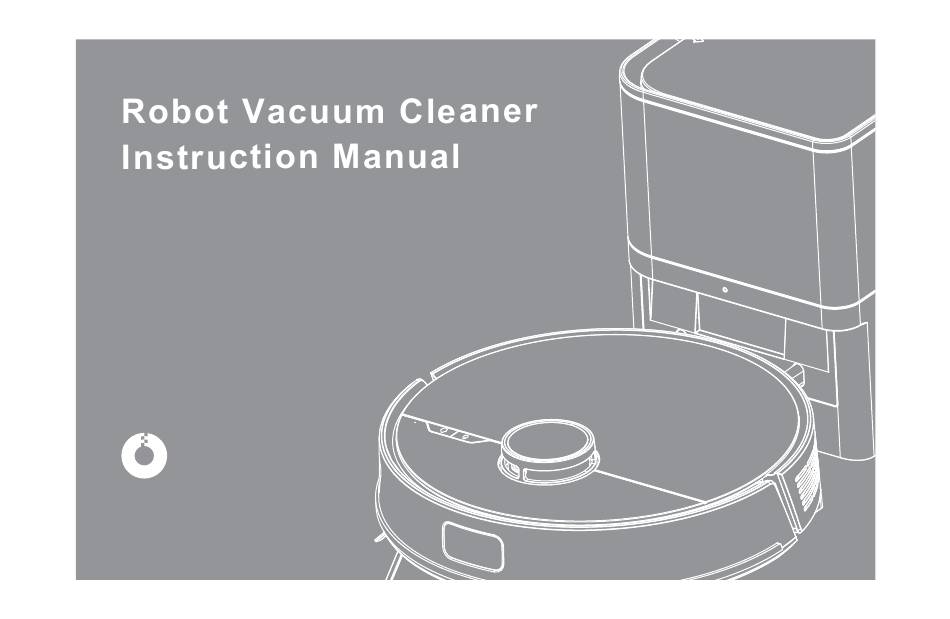

- Page 1 Please read this manual carefully before using the product and keep it safe.
- Page 2 Safe instructions Warning: Prohibited to use product in environments with open flame or fragile items. Before using this product, read the following safety instructions and follow all routine safety - Do not use or store products in extremely hot (above 40℃) or extremely cold (below 0℃) precautions.
- Page 3 Safety Instructions 1.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 2.Children shall not play with the appliance.
-
Page 4: Table Of Contents
Contents .......................... Product presentation ............................Product use ..........................Parts maintenance Regular maintenance ..................................................Common questions ..........................Product parameter... -
Page 5: Product Presentation
Product presentation List of accessories Instruction Robotic vacuum cleaner Dust collector 1x side brush Product manual cleaning brush Hepa Mop bracket assembly Dust bag(optional) The specification diagram is for reference only, please refer to the actual product. - Page 6 Product presentation Cliff sensor Robotic vacuum cleaner Ultrasonic sensors(optional) Wifi indicator light Universal wheel Clean / pause button Recharge button Side brush Laser sensor Drive wheel Rolling brush assembly Dust box tank Dust collector Preliminary filter screen HEPA Water injection hole...
-
Page 7: Product Use
Product use Pay attention to 1. Please clean up the scattered wire and debris on the ground before starting, and remove the easy to pour, fragile, valuable and dangerous items, so as to avoid winding, stuck, dragging or knocking down the personal or property damage caused by the robotic vacuum cleaner. 2. - Page 8 Product use Preparation to start Remove protection materials Installation on side brush 1.Remove the host guard strip 2.Remove the protective film...
- Page 9 Product use Robotic vacuum cleaner charging Charge Dust collector should be placed against the wall, placed on the flat ground, Long press button to switch on, place the robotic vacuum cleaner on the dust and do not place any items within 0.5m around and 1.5m ahead. collector to began charging.
- Page 10 Product use APP distribution network 1. Before connecting to Wifi network, you need to download the smart life 2. Preparation: Click the APP "+" key to add the device. APP, and then connect to Wifi network after registration and login. Make sure Wi-Fi is 2.4GHz before connecting.
- Page 11 Product use 3. Support the hot-spot connection mode: - Choose robotic vacuum cleaner (Wi-Fi) in small home appliances. - Please make sure that the Wi-Fi used is 2.4GHz, and enter the correct Wi-Fi password. - Long press the device recharge button for 3s till the indicator light is flashing. When the indicator light is flashing in the APP, click Next key and select the hotspot connection in the pop-up options.
- Page 12 Product use Pause / Continue Turn on / off - Long press key to start, the power indicator is on, the robot enters the When the machine is in operation, press any key to pause. Press the standby state. to continue the cleaning. - Long press key to shutdown, the indicator lights all off, shutdown success.
- Page 13 Product use Mopping the floor 2. Install the mop board 1. Water tank filling 3. Install the water tank assembly back to the robotic vacuum cleaner Pay attention to: Do not use the mopping function on the carpet, do not start on the carpet when installing the mop.
-
Page 14: Parts Maintenance
Parts maintenance Frequency of maintenance To achieve the best cleaning effect, clean and maintain the machine regularly according to the table below. Please decide the frequency of cleaning and maintenance according to the actual use habits. Part / component Cleaning frequency Change frequency High-Efficiency Filter (HEPA) Once a week... -
Page 15: Regular Maintenance
Regular maintenance Clean up the 2-in-one dust box water tank 1. Press the dust box button to remove the 2-in-1 water tank 2. Empty the water tank 3. pen the dust box to dump the garbage 4. Take out the high efficient filter HEPA and 5. - Page 16 Regular maintenance Clean up the rolling brush 1. Open the roll-brush cover assembly 2. Remove the rolling brush 3. Clean up the roll brush with the tool Clean up the side brush 1. Take off the side brushes 2. Clean up the side brushes with the tool...
- Page 17 Regular maintenance Clean up the sensor Dust collector maintenance Use a soft dry cloth to wipe the various sensors in the machine 1. Clean up the charging plates Contact plates of 2. Remove the dust bag vertically and replace a new one. charging station Ultrasonic sensor (optional) Cliff sensors...
-
Page 18: Common Questions
Common questions Question Possible causes and solutions Can't boot If the battery is low, please place the machine on duest collector for fully charg before use. it. If the battery temperature is too low or too high, please use it at 0-40°C. If the base is not powered on, please check the indication light is on;... -
Page 19: Product Parameter
Product parameter Robot vacuum cleaner Battery cell 14.4V/2600mAh Lithium-ion battery Power input 19V/0.6A Charging time About 4.5h Dust collector Power input 100-130V~ or 220-240V~ Power output 19V/0.7A Due to the continuous improvement of the product, the contents described in this specification are subject to change, and we reserve the right of continuous update. - Page 20 Security Information Hazardous Substance Component Hexavalent chromium Polybrominated Poly Brominated Mercury (Hg) Cadmium (Cd) Lead (Pb) and Type (Cr(VI)) and its biphenyls Diphenyl and its and its its compounds compounds (PBB) Ethers(PBDE) compounds compounds Plastic parts Metal parts Circuit module of the Robot Electronic component...
- Page 21 The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Shenzhen Free Dynamics Development Co., Ltd. declares that radio equipment type Conversion module( WBR3/RE741) is in compliance with Directive 2014/53/EU, and this product is allowed to be used in all EU member states.
- Page 22 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
