Installation

Installation

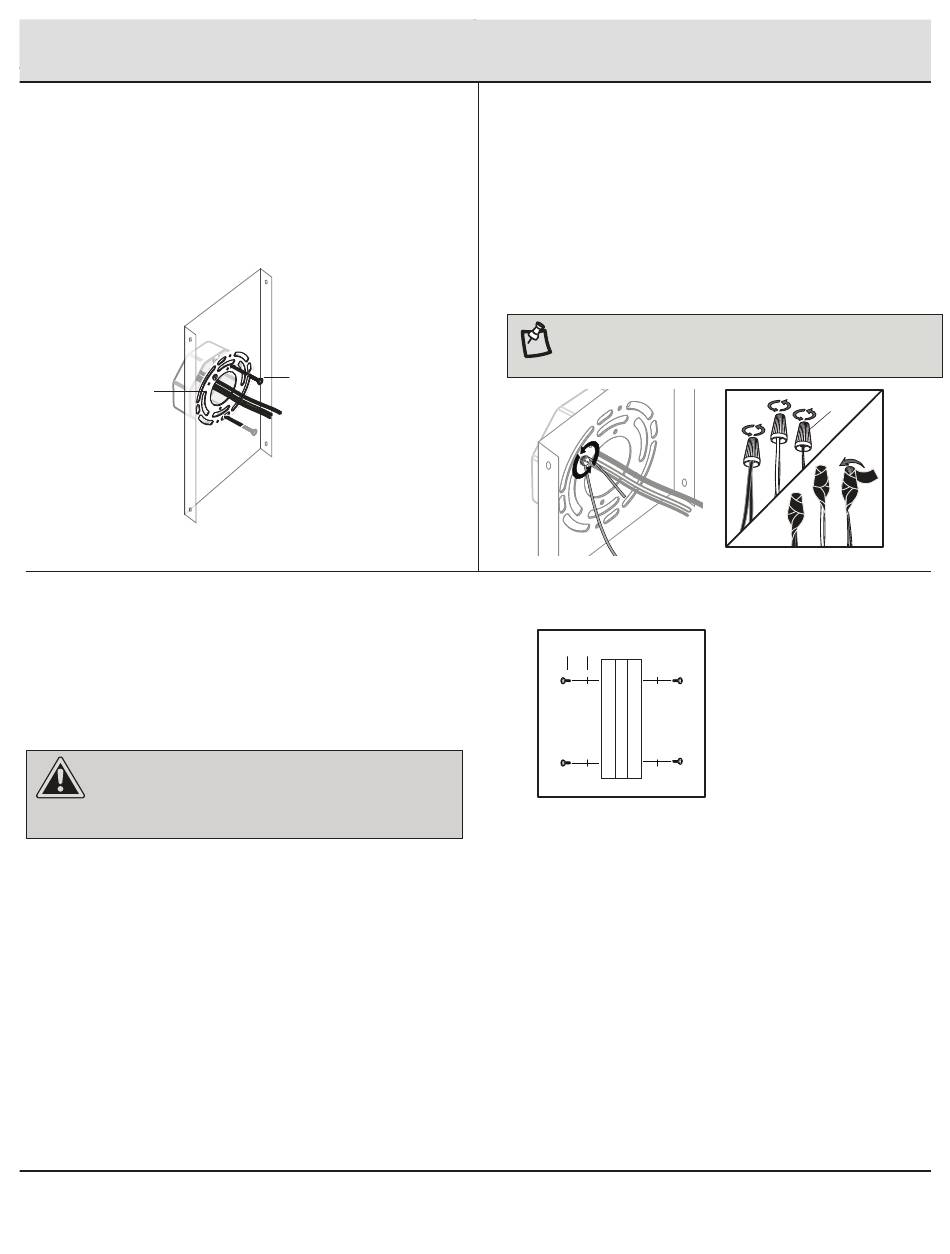

1
Attaching the mounting unit to the
junction box
Attach the mounting unit (AA) to the junction box (not

included) with mounting screws (BB).
AA
3
Securing the light fixture to the
junction box
Secure the light fixture (A) to the junction box by placing it

over the mounting unit (AA) and securing it with the set
screws (DD) and washers (EE).
CAUTION: To avoid any waterproofing problems, please
make sure the light fixture fits the mounting surface
perfectly during installation and use silicone sealant around
the canopy for better sealing after installation.
BB
2
Making the electrical connections
 Connect the copper wire from the light fixture (A) to the
mounting unit (AA) by securing it with the pre-installed
ground screw.
 Connect the black to black (power), the white to white
(neutral), and copper wire to ground wire and secure the
wire nuts (CC) with electrical tape (not included).
If the wires from the fixture are the same color,
NOTE:
attach the side with markings or letters to the black
(positive) wire and the other to the white (neutral) wire.
AA
A
DD EE
A
5
Please contact 1-800-986-3460 for further assistance.
