Accessories List

Before using the projector, please read these set up guide, for more detailed instruction, please go to check the online User Manual. Your product may differ from the illustrations on this sheet, but the instructions are the same.

Note: Due to Type-C protocols, android phone/pad can not be played by USB or HD cable connection.

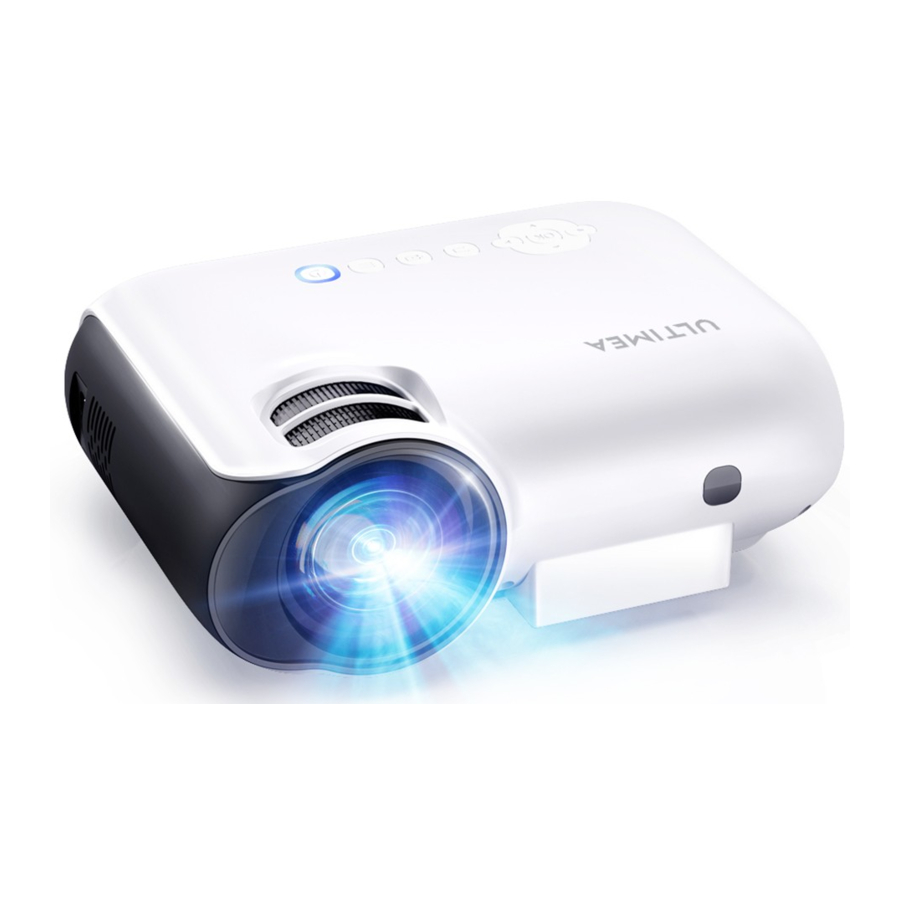

Product

Product - Part 1
Product - Part 2

Remote Control

Quick Setup

Power On/Power Off

Quick Setup - Power On/Power Off
Plug in the AC power cord, click the power button on the operation panel of the machine or on the remote control and the projector will start to work.

Device Installation

You can choose horizontal placement or hanger installation.
Device Installation Options - Part 1

The projection screen can be played from 35" to 120". The recommended projection screen is 40" to 80". Ambient darkness will improve the clarity of the projected images.

The distance between Apollo P20 and the projection surface must be a minimum of 1.1 meters (43 inches) and maximum of 3.88 meters (153 inches).
Quick Setup - Distance to the projection surface

Adjusting the image

Please adjust the dial slowly to bring the picture into focus
Adjust the Image Projected On the Screen
Check the horizontal and vertical settings of the projector till the image on the screen is balanced.

Keystone correction

Adjust the keystone on the projector to adjust the images shape.
Adjust the placement of the projector. When the left side of the picture is wider, move the left side of the projector corresponding to the picture forward; when the right side of the picture is wider, move the right side of the projector corresponding to the picture forward.

Input Source

Wired Connection to Devices

Input Source - Wired Connection to Devices

Fire TV Stick Connection

How to connect the Fire TV stick to the projector:

Connect the TV stick to power using the USB cable.
Plug the TV stick to one the HD port on the projector.
Select the HD option in the settings on the projector.

The content of the Fire TV stick will be displayed on the projection screen. Use the Fire stick's remote to select and stream your content.

HD mode

Connect the projector and device with HD cable.
Press and hold the Source button of the projector or remote control to enter the input source interface.
Select HD1 or HD2 that you had connected, press OK to enter, press return key to exit and return to the main interface of the projector.

USB mode

Connect the projector to the USB.
Press and hold the Source button of the projector or remote control to enter the input source interface.
Select USB and press OK to enter the module interface (the same of home page).
Select the corresponding Movie, Music, Picture and text modules of the file type, and press OK to enter the file interface
Select the file to be played in the file interface and press OK to select play.
Press the return key to exit and return to the main interface of the projector.

AV mode

Connect the projector and the device with the AV cable.
Press and hold the Source button of the projector or remote control to enter the input source interface.
Select AV, press OK to enter, press return key to exit and return to the main interface of the projector.

BT settings

Power on and enter the projector's main menu, select BT and click OK button to confirm.
Turn on BT and select the BT signal that needs to be connected.
