Helm SCM4-PLM Instruction Manual

Strain gage input module with profinet/profibus setup
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SCM4-PLM
STRAIN GAGE INPUT MODULE
with ProfiNet/Profibus Setup
INSTRUCTION MANUAL
Rev. 1.06
4/15/2018
HELM INSTRUMENT COMPANY, INC.
361 WEST DUSSEL DRIVE
MAUMEE, OHIO 43537
419-893-4356
419-893-1371 (FAX)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCM4-PLM and is the answer not in the manual?

Questions and answers

Related Manuals for Helm SCM4-PLM

Summary of Contents for Helm SCM4-PLM

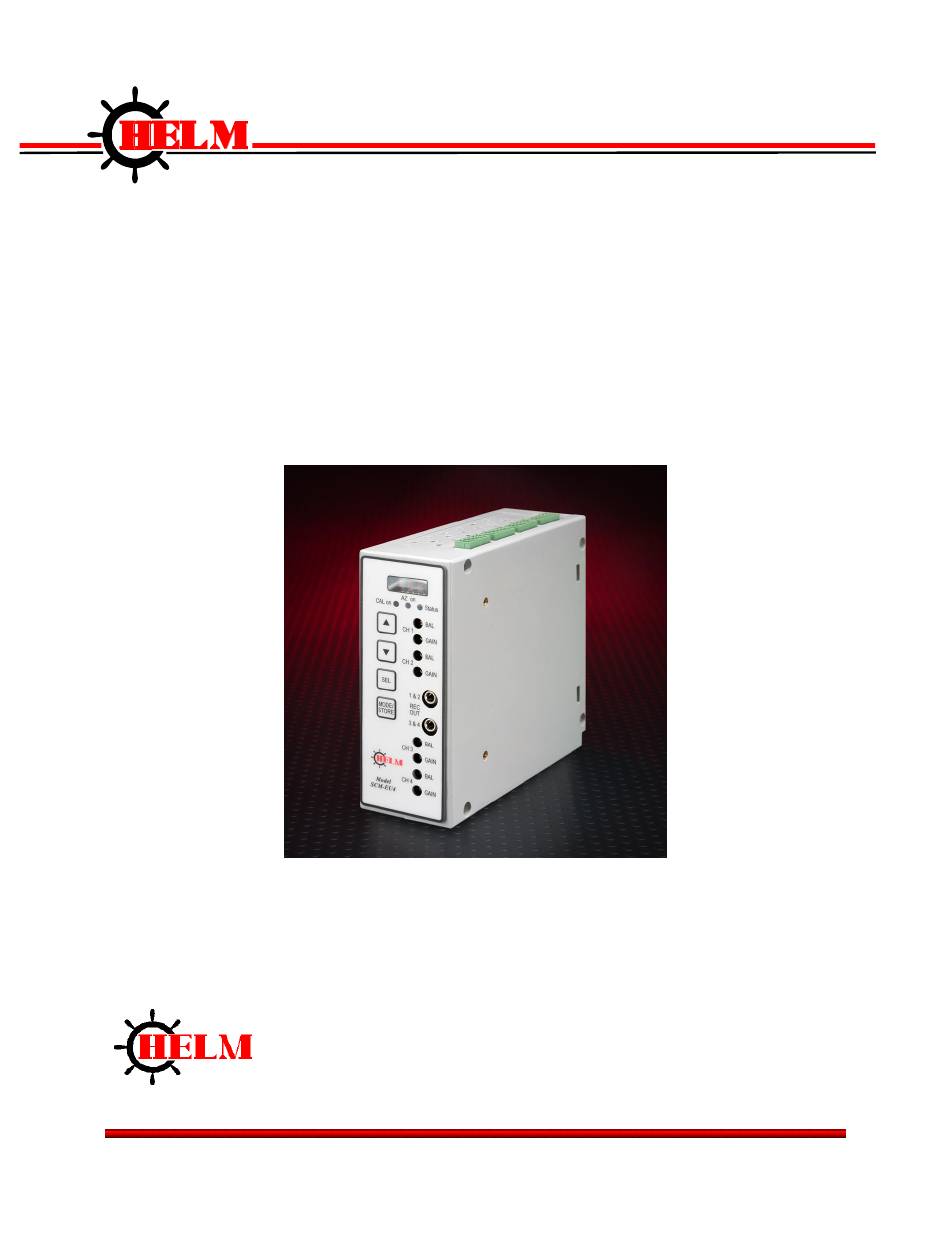

  • Page 1 SCM4-PLM STRAIN GAGE INPUT MODULE with ProfiNet/Profibus Setup INSTRUCTION MANUAL Rev. 1.06 4/15/2018 HELM INSTRUMENT COMPANY, INC. 361 WEST DUSSEL DRIVE MAUMEE, OHIO 43537 419-893-4356 419-893-1371 (FAX)
  • Page 3 In no event will the Helm Instrument Company be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

  • Page 4: Table Of Contents

    Initial Hardware Setup Procedures ................... 19 System Troubleshooting Guide....................21 Appendix A: Specifications: ..................27 Electrical Specifications: ...................... 27 Physical Specifications: ......................27 Environmental Specifications: ....................27 Input Specifications: ......................27 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 5 SCM4-PLM Module Instruction Manual Appendix B: Module Diagrams: ................28 Strain Gage & I/O Connector Wiring ................... 29 Appendix D: Anybus I/O address Values: ............30 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 6: Preface

    Purpose of This Manual This manual is a learning and reference guide for the Helm HM-2-SSI Module. It contains the information you need to install, wire, and use the module.

  • Page 7: Contents Of This Manual

    Address Values Provides Image Blocks Siemen’s Ladder Logic Provides Siemen’s Ladder Logic program 2 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 8: Terms And Abbreviations

    Information is written to the configuration word through the logic supplied in your ladder program. SCM4-PLM - Helm monitoring module; provides processor input from up to four sensors. Gain - Amplification of an input signal.
  • Page 9 Trend Deviation - Percent of change, high and low, from sample value to current value. TSM - Acronym for Through-the-Stroke load monitoring. Resolver input is required for monitoring the load being developed during machine cycle. 4 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 10: Common Techniques Used In This Manual

    • Bulleted lists such as this one provide information, not procedural steps. • Numbered lists provide sequential steps or hierarchical information. Product Support Contact your Helm representative or call Helm direct at 419/893-4356: • sales and order support • product technical training •...

  • Page 11: Chapter 1

    At HELM, quality is inherent not only in the design of our products but in the attitudes of our employees as well. We’re working together to give you the best.

  • Page 12: Scm4-Plm Features

    • Four channel Strain Gage input with Auto Zero (350-700 ohm) • RS422 Serial Communication port • DIN rail mount • Peak model • Applications include Stamping, Forging, Die Cast, Injection Molding, Assembly 7 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 13: Hardware Overview

    Conjunction with Anybus, it interfaces with most industrial network protocol such as Profibus, Profinet, Ethernet/IP, CC Link IE, and etc. The SCM4-PLM module receives and stores digitally converted analog data into its image table for retrieval on a Serial or a PLC network. The module supports connections from four strain gage sensors.

  • Page 14: Hardware Features

    The message display shows menu settings, and calibration values. BALANCE ADJUSTMENT: Used to set selected channel’s sensor input balance to 0. GAIN ADJUSTMENT: Used to adjust selected channel’s calibration number (input gain value). 9 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 15 This LED is lit when Auto-Zero (AZ) is turned on. Status o Solid Green → Online Communications o Flashing Green → No Serial Communications o Solid Red → ERROR: Communication Fault 10 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 16 When in other settings, this button is used to save the current values to the module’s EEPROM. Make sure to use STORE button on each screen to save any changes you made before move to next screen. 11 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 17: Chapter 2

    CHAPTER 2 Chapter 2 Getting Started This chapter can help you to get started using the Helm SCM4-PLM module. The procedures included here assume that you have a basic understanding of PLC Network communications. You should understand electronic process control and be able to interpret the ladder logic instructions required to generate the electronic signals that control your application.

  • Page 18: System Operation

    Instruction Manual CHAPTER 2 System Operation The SCM4-PLM module receives+24Vdc power from an external power supply to operate. Each individual channel on the module can receive input signals from strain gage based sensors. The module converts the analog values directly into digital values.

  • Page 19: Channel Configuration Data And Status

    CHAPTER 3 Chapter 3 Channel Configuration Data and Status This chapter explains how the SCM4-PLM module communicates though the module’s input and output image using Anybus. It lists the preliminary setup and operation required before the module can function. Output Image Block SCM4-PLM OUTPUT BLOCK This data block is the image of the output of the module.
  • Page 20 Integer values of high and low limit for trend alarm settings. Values are set in percent or in ton and represent the maximum and minimum percent of change off the sample value. Range = 0 to 99%. A value of 0 disables alarm. 15 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 21: Input Data Block (Anybus)

    Save to EEPROM Confirmed CAM Trigger Toggle bit .Data[20] Cycle Counter .Data[21] Current Scale Set .Data[22] 0 = normal, 0x55 = Receive Data Check sum error 16 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 22 This bit is reported by the module that it is actually in Peak mode when On(1). Module In Monitor Mode Indication Bit This bit is reported by the module that it is actually in Monitor mode when On(1). 17 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 23 If there is no CAM input state change, the bit remains the same as the last bit’s state. CYCLE Counter This Counter value increment by each cycle of the machine. Scale Set Reports current scale setting of the module . 18 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 24: Chapter 4

    10. station 11. comms test *Note that Menu button only works when the SCM4-PLM module is in CAL mode. If the module in SETUP or Monitor mode, change to CAL mode using the HMI screen that is already communicate with the module.
  • Page 25 Balance Adjust Mode → using the balance potentiometer, you can manually adjust the balance to zero. Step 6. Calibrate Channel 2, 3, and 4  Repeat Step 5 for to calibrate the rest of channels. 20 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 26: System Troubleshooting Guide

    HT-400 Sensor Ohm Readings Green-Black………………………… 350 ohms Red-White…………………………... 350 ohms All other color combinations…..…… 266 ohms All colors to Ground...……………… open Shield to Ground.…………………… open 21 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 27 SCM4-PLM Module Instruction Manual CHAPTER 5 22 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 28 Check for broken shear press running collar, linkage, or other Correct problem press or die damage None Check press parallelism Correct problem Out of parallel Parallel 23 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 29 SCM4-PLM Module Instruction Manual CHAPTER 5 24 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 30 Replace Check for broken or Replace Check for broken or & run press in die wear collar deformed shear collar wear collar deformed shear collar 25 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 31 SCM4-PLM Module Instruction Manual CHAPTER 5 26 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...

  • Page 32: Appendix A: Specifications

    Strain Gage (350 ohm, 700 ohm) Input Impedance Display Resolution Up to 0.1% of full scale Overall Module Accuracy 1% of full scale Module Update Time 100 µsec 27 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 33 SCM4-PLM Module Instruction Manual Appendix B Appendix B: Module Diagrams: 28 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 34 Appendix B SCM4-PLM Module Instruction Manual train Gage & I/O Connector Wiring 29 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 35 Save to EEPROM Confirmed CAM Trigger Toggle bit .Data[20] Cycle Counter .Data[21] Current Scale Set .Data[22] 0 = normal, 0x55 = Receive Data Check sum error 30 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 36 Set Ch3 High Tolerance value .Data[11] L Byte Set Ch4 Low Tolerance value H Byte Set Ch4 High Tolerance value .Data[12] Not used .Data[13] Not used 31 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 37 Save to EEPROM Confirmed CAM Trigger Toggle bit [21] Cycle Counter [22] Current Scale Set [23] 0 = normal, 0x55 = Receive Data check sum error 32 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 38 H Byte Set Ch4 High Tolerance value .[13] Not used .[14] Not used .[15] check sum (from Data[1] to Data[14]) only low Byte will be checked 33 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 39 Use “GSDML-V2.3-HMS-ABC_PROFINET_IO-20141127.xml” file to setup the Input and Output table for your PLC project. 2. For ProfiBus Module (AB7000) use the link below for GDS file https://www.anybus.com/docs/librariesprovider7/default-document-library/firmware- software/hms-gsd-abc-pdp.zip?sfvrsn=416fadd6_4 34 of 39 © 2006 by Helm Instrument Co., Inc. All Rights Reserved 12/6/2006 v1.00...
  • Page 40 Seq number of the connected SCM4-PLM module into the first word of the Output Data table. To verify or configure the Seq number of the SCM4-PLM module, Please refer to the SCM4-PLM manual. Seq number is set at ‘1’ as default in the SCM4-PLM OUTPUT Data[0] = 1 After the matching sequence number is entered into the first word of output data table, you will see the new values updating on the Input data table.
