Vista 2142 Installation Instructions

INSTALLATION INSTRUCTIONS
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes. Failure to do so will void the warranty and may
result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around lamp can become hot enough to blister hands.
Particular care should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN 6".
WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION CORDS
ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
LUMINAIRE IS UL LISTED FOR ABOVE GROUND INSTALLATION ONLY.

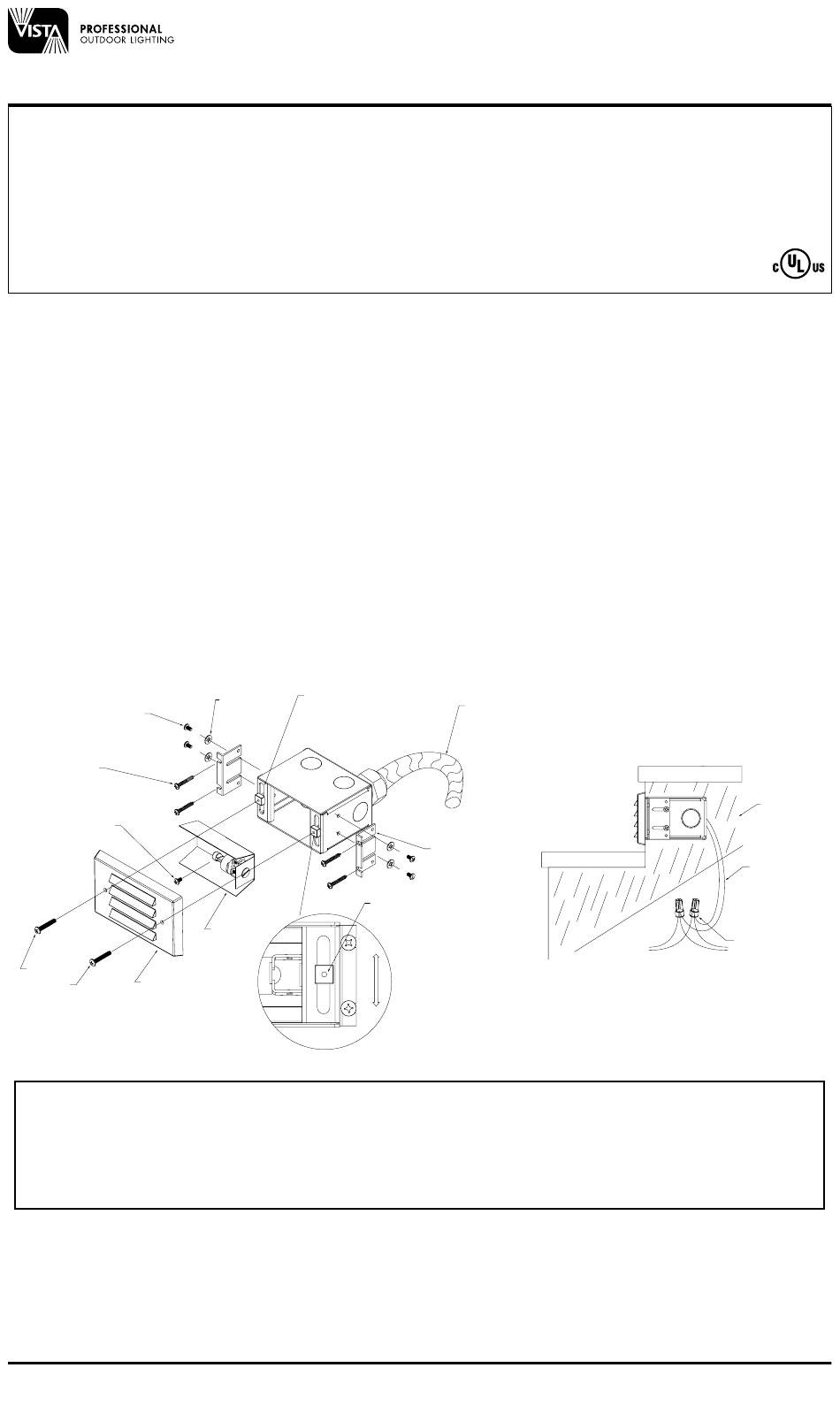

LUMINAIRE MOUNTING FOR EXISTING WALLS/WOOD DECKS:
1. To prevent electrical shock, disconnect transformer from electrical supply
before installation or service.
2. Remove reflector assembly from luminaire.
3. Using luminaire housing as a template, mark location of housing on wall or
deck.
4. Cut hole in wall or deck to accept housing and insert housing.
NOTE: Remove insulation within 6" of where luminaire will be mounted.
5. Using frame mounting brackets, bracket screws and mounting wood screws
(provided), secure housing tightly against wall or deck.
6. Using two blue wire nut connectors (provided), connect wire leads from
LUMINAIRE MOUNTING FOR MASONRY/CONCRETE WALLS:
1. Remove reflector assembly from luminaire.
2. Using standard masonry procedures, build wood support frame and secure
luminaire to support frame.
NOTE: Optional mounting brackets for some models are available to facilitate
installation in concrete walls.
NOTE: UL listed flexible conduit is recommended for connections to ease
luminaire position and adjustment during installation.
3. Remove ½" knockout from side or bottom of luminaire.
4. Connect conduit (by others), pull supply wires through into housing.
5. Cover opening of luminaire with cardboard, be sure unused electrical plugs
Bracket
Screw
Mounting
Wood Screw
Reflector
Retaining Screw
Cover
Screws Fixture Cover
WARNING: TO REDUCE THE RISK OF FIRE, OR INJURY TO PERSONS:
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamps get hot quickly! Contact only switch/plug when turning on.
3. Do not touch hot lens, guard or enclosure.
LAMP INSTALLATION/REPLACEMENT:
CAUTION: Do not exceed maximum wattage marked on luminaire label.
1. To prevent electrical shock, disconnect transformer from electrical supply before service.
2. Loosen cover screws and remove cover.
3. Replace lamp with correct wattage and type marked on fixture label.
NOTE: DO NOT touch Halogen lamp with bare hands. Always use soft cloth or the plastic wrapping (if available) from the lamp to handle the lamp.
4. Reinstall cover and tighten the cover screws evenly.
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
SEE REVERSE FOR LED
Slide to Adjust
Washer
Cover Alignment
Reflector
IMPORTANT SAFETY INSTRUCTIONS - THE LIGHTED LAMP IS HOT!
(Leave with property owner/manager)
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
behind reflector to 18-2 cable pigtail (provided) exiting luminaire.
7. Install reflector and lamp.
8. Prior to installing cover plate, make necessary adjustments to nylon mounts
to correct any tilt of housing.
9. Install cover plate to luminaire and tighten screws evenly.
10. Strip two leads from luminaire wire. Using silicone filled safety connectors
(provided), connect leads from luminaire to main supply cable leads.
11. Provide power to luminaire and check for proper operation.
(knockouts) are closed before concrete pour.
6. Pour concrete using standard masonry procedures.
7. Using UL listed wire nut connectors (provided), connect wire leads from
behind reflector to 18-2 cable pigtail (provided) exiting luminaire.
8. Install reflector and lamp.
9. Prior to installing cover plate, make necessary adjustments to nylon mounts
to correct any tilt of housing.
10. Install cover plate to luminaire and tighten screws evenly.
11. Using two blue wire nut connectors (provided), connect wire leads from
behind reflector to 18-2 cable pigtail (provided) exiting luminaire.
12. Provide power to luminaire and check for proper operation.
Flexible or PVC
Conduit (by others)
Frame Mounting
Bracket
Adjustable Nylon Mount
SlideS Up & Down to
Correct Tilt of Housing
4. Keep lamp away from material that may burn.
5. Do not touch the lamp at any time. Use a soft cloth. Oil from the skin may
damage lamp.
6. Do not operate luminaire fitting with a missing or damaged cover.
SAVE THESE INSTRUCTIONS
2142
Landscape Series
Step & Brick Lights
WOOD
STAIRCASE
18-2 PIGTAIL
MAIN SUPPLY
CABLE
