Vista 8229 Installation Instructions

INSTALLATION INSTRUCTIONS FOR 12 VOLT
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT
EXCEED 25 AMPS, 15 VOLT MAX.
WARNING: Bollard luminaires must be installed in accordance with the National Electrical
Code (NEC) and local codes. Failure to do so will void the warranty and may result in serious
injury and/or damage to the bollard luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used.
Lens and metal around lamp can become hot enough to blister hands. Particular care
should be taken not to locate luminaires where small children can reach them if high
wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A
POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN
6". WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED
TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION
CORDS ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
TOOLS REQUIRED FOR INSTALLATION:
Flat head screwdriver
7/16 Wrench
Cement concrete (if pour concrete method chosen)

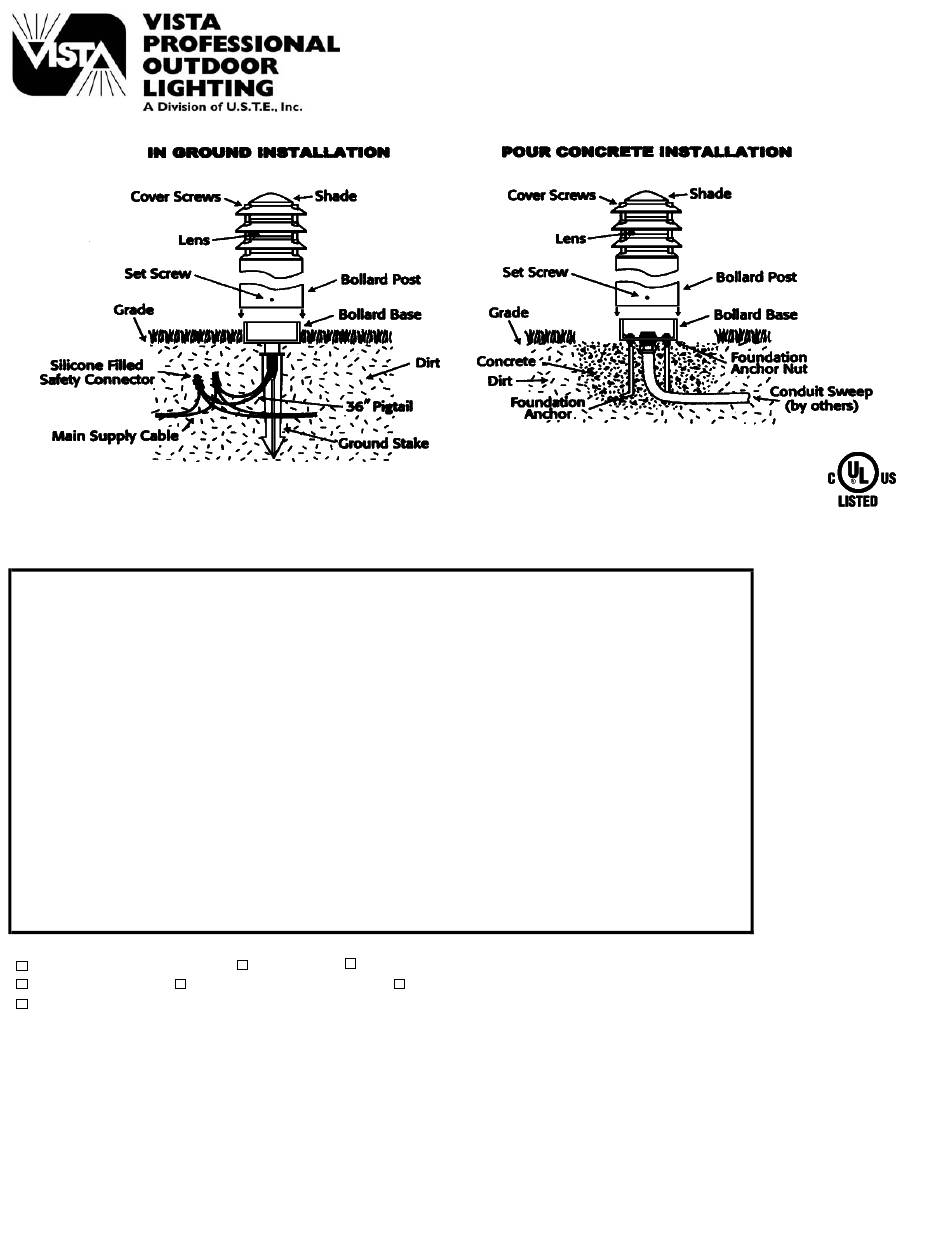

INSTRUCTIONS FOR STAKE MOUNT INSTALLATION
NOTE: Your Vista 12 volt Bollards are shipped with a ground stake to facilitate a stake mount
installation. However, for a permanent and secure installation a concrete footing
support for the bollard base is recommended.
1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service.
2. Dig a hole approximately 3" diameter by 2" deep at selected location.
3. Using the 1/2" threaded short nipple (provided), attach ground stake to center hole in
bollard base and insert stake with base into the ground until bottom of base is even with grade.
BOLLARD
MODEL 8229/ 8230/ 8231
Shovel Wire strippers
1/8 Allen head wrench Silicone grease
