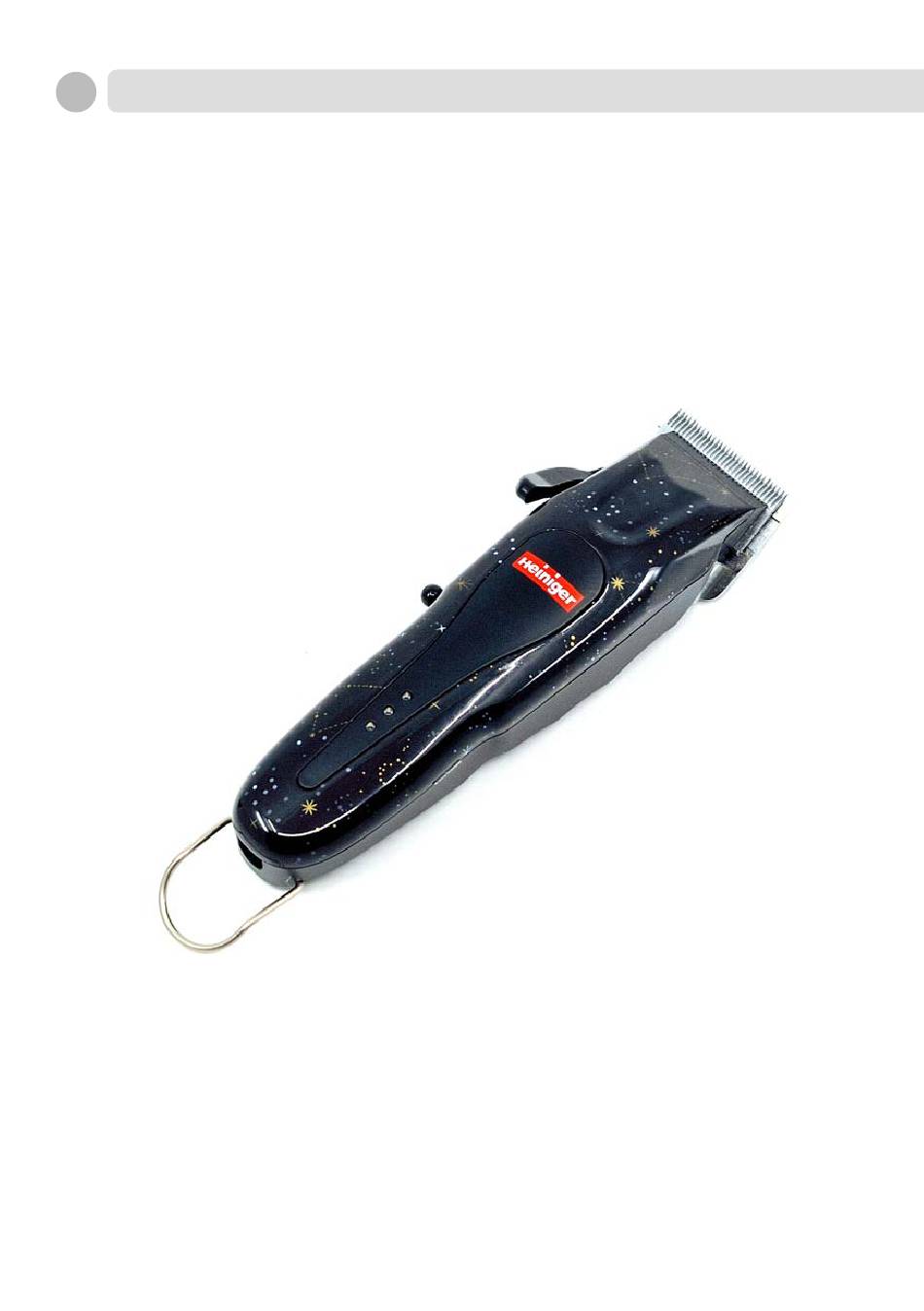

- Page 1 Hair clippers Translation of the original instructions Version/Index: Tauro/A 03-24...
-
Page 2: Table Of Contents
Table of contents Safety ....................3 Personal ....................3 Symbols and warning notes ..............3 Stipulated usage ..................4 Power supply ..................4 Clipping blades ..................5 Children ....................5 1.7 Burns, fire, electric shocks or injuries to people ........6 Generalities ................... 7 Guarantee conditions ................7 Customer service ...................7 Limitation of liability ................7 Technical data .................. -
Page 3: Safety
IMPORTANT SAFETY INSTRUCTIONS NOTE! When using an electrical device, you must always observe basic precautionary measures as described below: Read all instructions before using the device. Safety The non-observance of the instructions and safety regulations mentioned in this manual can cause operating malfunctions or serious injury to per- sons. Personal y Children are not permitted to operate the equipment. Operation of the clipper is only permitted by personal expected to do their work reliably. Persons, whose reactivity is affected by drugs, alcohol or pharmaceuticals, are not permitted to operate the equipment. -
Page 4: Stipulated Usage
Stipulated usage The equipment is exclusively designed and conceived for the here de- scribed use and intention. This device is solely intended for use to cut human head hair. The device is intended for commercial use. The compliance of all indications in this manual is part of the intended use. Other uses are expressly prohibited. -
Page 5: Clipping Blades
Never drop or insert objects into an opening. Do not use the device outdoors and do not operate it while aerosol prod- ucts (sprays) are being used. Do not use this device with a damaged or broken comb as this may cause injury to the face. First insert the plug into the device before plugging it into the outlet. To disconnect, turn all controls to off position (e.g. “0”) then remove plug from outlet. -
Page 6: Burns, Fire, Electric Shocks Or Injuries To People
Burns, fire, electric shocks or injuries to people WARNING! In order to reduce the risk of burns, fire, electric shocks or injuries to people: Do not leave the device unattended at any time when it is connected to the mains (or if the device is used with a detachable power supply). Do not use the device outdoors or in conjunction with the use of aerosol (spray) products. -
Page 7: Generalities
It is designed to give longevity and high perfor- mance. If spare parts are used during the life of this product, please en- sure that they are genuine Heiniger parts. Failure to use genuine Heiniger spares may reduce the performance of this precision engineered product and will void any warranty claim. -
Page 8: Technical Data
Technical data General information Length 180 mm Width 54 mm Hair clippers Height 39 mm Weight with battery 268 g Battery Running time at 20 °C >90 min, max. 210 min Mains voltage Electrical Voltage 100–240 V, 50 / 60 Hz Operating conditions Environment Temperature range... -
Page 9: Overview
Overview Adjustment lever Hair clippers On / Off switch Clipping blades Fig. 1 Abstract These clippers are used to cut human head hair. Two comb-shaped blades are the cutting tool. The lower blade facing the skin can be moved and is attached to the blade carriage. The top blade is agitated crossways that one. The top blade is set in motion with the help of an adjust- ment lever. Control and display elements On / Off switch Charge status display Fig. 2 Control and display elements Charge status display Charge status, not connected to the mains LEDs... -
Page 10: Instructions For Charging The Battery
Instructions for charging the battery Power supply unit Connection socket On / Off switch Fig. 3 Charge the battery Charge the device as follows before first use: Plug the cable into the connection socket (2) of the device. Make sure the device's on/off switch (3) is turned off. Plug the power supply unit (1) into a socket. When the device is fully charged, the three LEDs of the charge status indicator light up blue (see also "Charge status display"). NOTE! Only use the original power supply included. -
Page 11: Operation
Operation WARNING! Incorrect operation may cause damage on persons or objects. Therefore: y Do all the steps of operation according to the indications in this instruction manual. Initial start-up 6.1.1 Requirements for the charging location y Observe all technical data according to the operating conditions (3 Technical data). y Power outlets in the outer area must be equipped with a residual current circuit breaker (FI). y The workplace must dispose of sufficient illumination and ventilation. -
Page 12: Activities During Operation
Activities during operation 6.2.1 Changing the clipping blade 1. Slide the on/off switch (Fig. 2/1) to position "0". 2. Unscrew both screws (2). 3. Remove the clipping blade (1). 4. Fitting the clipping blades see chapter 6.1.2. Fig. 6 NOTE! Only work with sharp clipping blades, replace blunt or defective blades without teeth. The correct resharpening of clipping blades is only to be done by special machines or by a specialist. -
Page 13: Cleaning
6.2.3 Cleaning A thin layer of lubricating oil between the upper and lower blades is essential for a good clipping result and to increase the service life of the clipper and the clipper blade (6.2.2 Lubrication). Clipping blades Clean both clipping blades with a brush between uses. Troubleshooting y The here described tasks for troubleshooting can be done mostly by the operator. -
Page 14: Spare Parts
Spare parts See illustration spare parts at the end of this instruction manual. WARNING! Faulty spare parts may cause damages, malfunctions or total loss and may reduce security. Therefore: Only use original spare parts from the manufacturer. Purchase the spare parts at the official distributor or directly at the manufacturer. If using no original spare parts all warranty and service claims are expiring. Pos. - Page 15 Taurus ART-NR BEZEICHNUNG TOTAL POS ART-NR BEZEICHNUNG 710-330 Gehäuseschale oben komplett 710-370.EU Netzteil 110-240V mit Stecker EU 710-335 Gehäuseschale unten 710-370.AU Netzteil 110-240V mit Stecker AU 710-336 Li-Ion Akku 3.7V/3.2Ah/11.84Wh 710-370.GB Netzteil 110-240V mit Stecker GB 710-332 Motor komplett 710-370.US Netzteil 110-240V mit Stecker US 710-331 PCB mit Ladebuchse 710-371...
- Page 16 © 2024 Heiniger AG. All rights reserved. This instruction manual may not be duplicated or distributed, neither completely nor in extracts, or by electronic or mechanical means (including photocopying), transmit- ted or used for the purpose of competition without authorisation from Heiniger AG. Subject to change without notice. Contact:...
