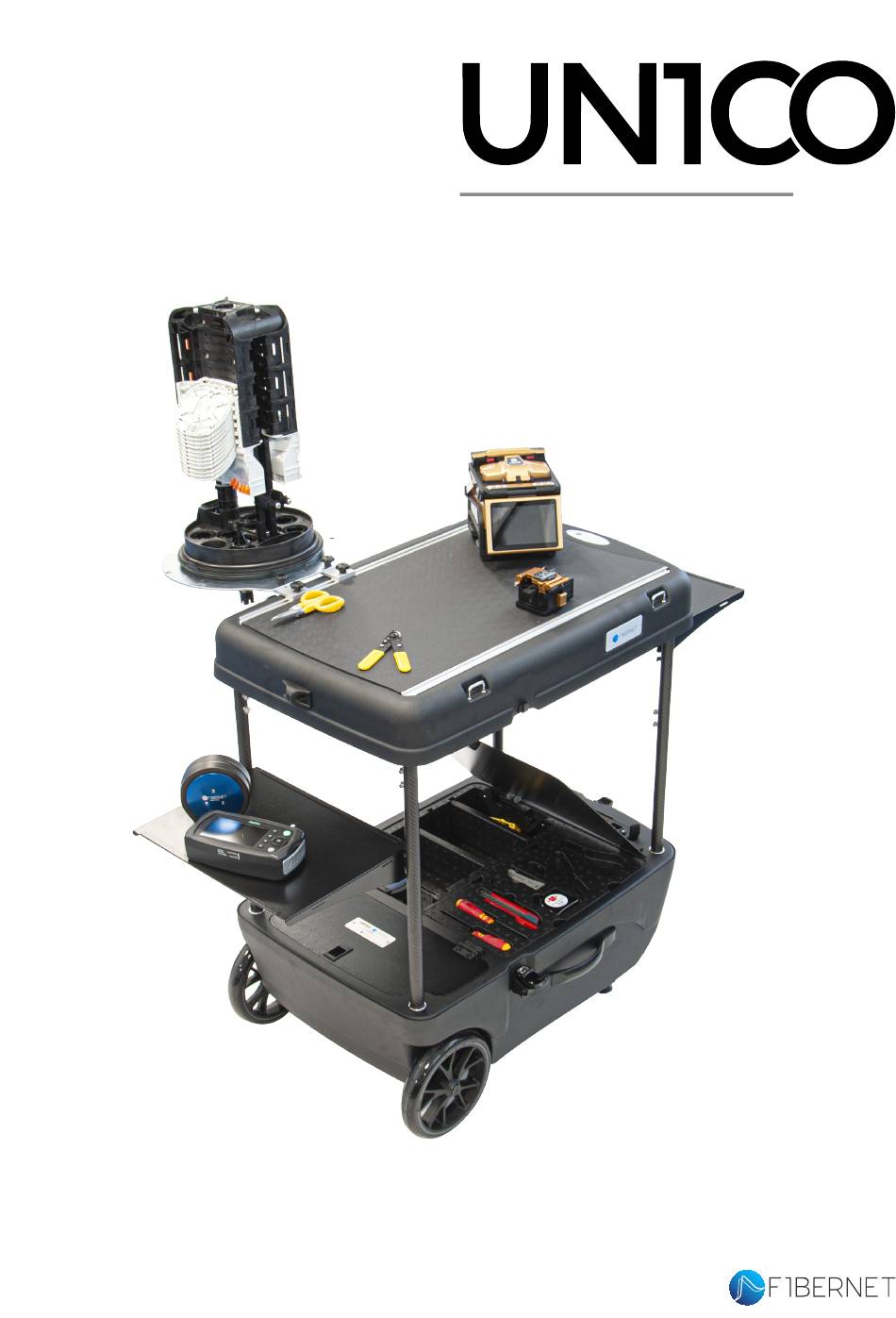

- Page 1 User Manual Ver. 4.1 - July 2022 www.fibernet.it...
-
Page 5: Table Of Contents
Summary What is UN1CO one UN1CO one: Compatibility UN1CO one: when closed UN1CO one: when opened The cover - External side Multifunctional bars Internal side Carbon fiber rods Soft case - Closures mounting kit Interior Compartments Arc fusion splicer compartment... -
Page 6: What Is Un1Co One
UN1CO one when closed UN1CO one when opened Since it is light and tough, UN1CO one allows, inside its protected drawers, all the equipment and instrumentation needed for on the field operations including, for example: Fusion splicer... -
Page 7: Un1Co One: Compatibility
UN1CO one: COMPATIBILITY UN1CO one internals have been designed so that they can be modular, meaning easily adaptable to all dimen- sions of different models of O.T.D.R.s and fusion splicer machines. The structure is covered with shockproof material capable of protecting the entire equipment. -
Page 8: Un1Co One: When Opened
UN1CO one: WHEN OPENED When opened, UN1CO one becomes a working bench on which there are all the elements useful to operators who work on the field Carbon fiber Workbench rods Modulated equipment drawers Closures mounting kit... -
Page 9: The Cover - External Side
THE COVER External side In this case we are talking about the real UN1CO one working bench. It is made of scratchproof material and has two aluminum multifunctional bars on which can be fixed, with the right bracket kit, muffles – both in vertical or horizontal position- or any other useful equipment. -
Page 10: Multifunctional Bars
Multifunctional bars One of the many unique characteristics UN1CO one has, are the multifunctional bars found on the working bench. They are made of aluminum and stu- Multifunctional died to assure a fast anchorage for any bars instrument or tool found on the wor- king table. -
Page 11: Internal Side
Internal side Here we have: • N.1 Folding stools (optional) • N.4 Carbon fiber rods • N.2 Extension shelves (optional) • N.1 Soft case Coupler for carbon Soft case fiber rods Folding stool (optional) Extension Shelves (optional) Carbon fiber rods... -
Page 13: Carbon Fiber Rods
Lightweight and resistant, these rods are studied to be fixed on the infe- rior part of UN1CO one, making the structure incredibly stable. On the rods, it is possible to find support pins for the extension shelves. -
Page 14: Soft Case - Closures Mounting Kit
SOFT CASE The soft case can be fixed with appropriate belts placed on the internal side of UN1CO one cover and it allows to packed away inside it useful working kits (EX: closure mounting kit or sunshade umbrella kit clamps). -
Page 16: Interior Compartments
INTERIOR COMPARTMENTS Inside UN1CO one, covered by two resistant aluminum doors, there are compartments where it is possible to store instrumentation and equipment useful for the job. The compartments are protected by shockproof material with the intent to preserve the equip- ment. -
Page 17: Arc Fusion Splicer Compartment
ARC FUSION SPLICER COMPARTMENT Inside this compartment it is possible to put the splicer and its accessories, just like the charger or the cleaver. The space is adaptable, thanks to the endowed separators, for most of the splicers on the market. The compartment is covered by a special door to preserve the material during the transport. -
Page 18: General Equipment Compartment
GENERAL EQUIPMENT COMPARTMENT SUPERIOR DOOR The general equipment compartment is the main UN1CO one compartment. Insi- EQUIPMENT BIG DRAWER DRAWER de it there are three extractable drawers made to contain instruments and equi- SMALL DRAWER pment. Under the drawers, it’s possible... -
Page 19: Un1Co One: Optionals
UN1CO one: OPTIONAL UN1CO one depending no specific needs, offers a large range of accessories. The client can decide to put inside UN1CO one: Multisocket plug Extension shelves Folding stool Launch lead FO scissors Stripper Circular tube stripper Screwdrivers kit... -
Page 20: Optional - Multisocket Plug
OPTIONAL - MULTISOCKET PLUG Inside UN1CO one is included a multi- socket plug and, on the lower compart- ment, there is a five meters long charging cable. This solution allows the operator to recharge three instruments at one while working. -
Page 21: Optional - Extension Shelves - Launch Lead
OPTIONAL - LAUNCH LEAD Inside UN1CO one it’s possible to put one -or even more - launch lead, a necessary tool for certifi- cation operations with the O.T.D.R. Fibernet has developed Futura, which is a resistant and compact launch lead easily transportable inside UN1CO one. -
Page 22: Technical Specification - Cleaning And Maintenance
TECHNICAL SPECIFICATION Length: 800 mm - 31.46 in Width: 525 mm - 20.66 in Height: 850 mm - 33.46 in Depth: 360 mm - 14.17 in Working Bench Dimensions: 685×420 mm (26,96x16,53 in) with extension shelves: 1285×420 mm (50,59x16,53 in) Weight: 17.7 Kg - 37.69 pounds (standard package) IP Grade: IP54 Materials:...
