Summary of Contents for FIBERNET UN1CO mobile

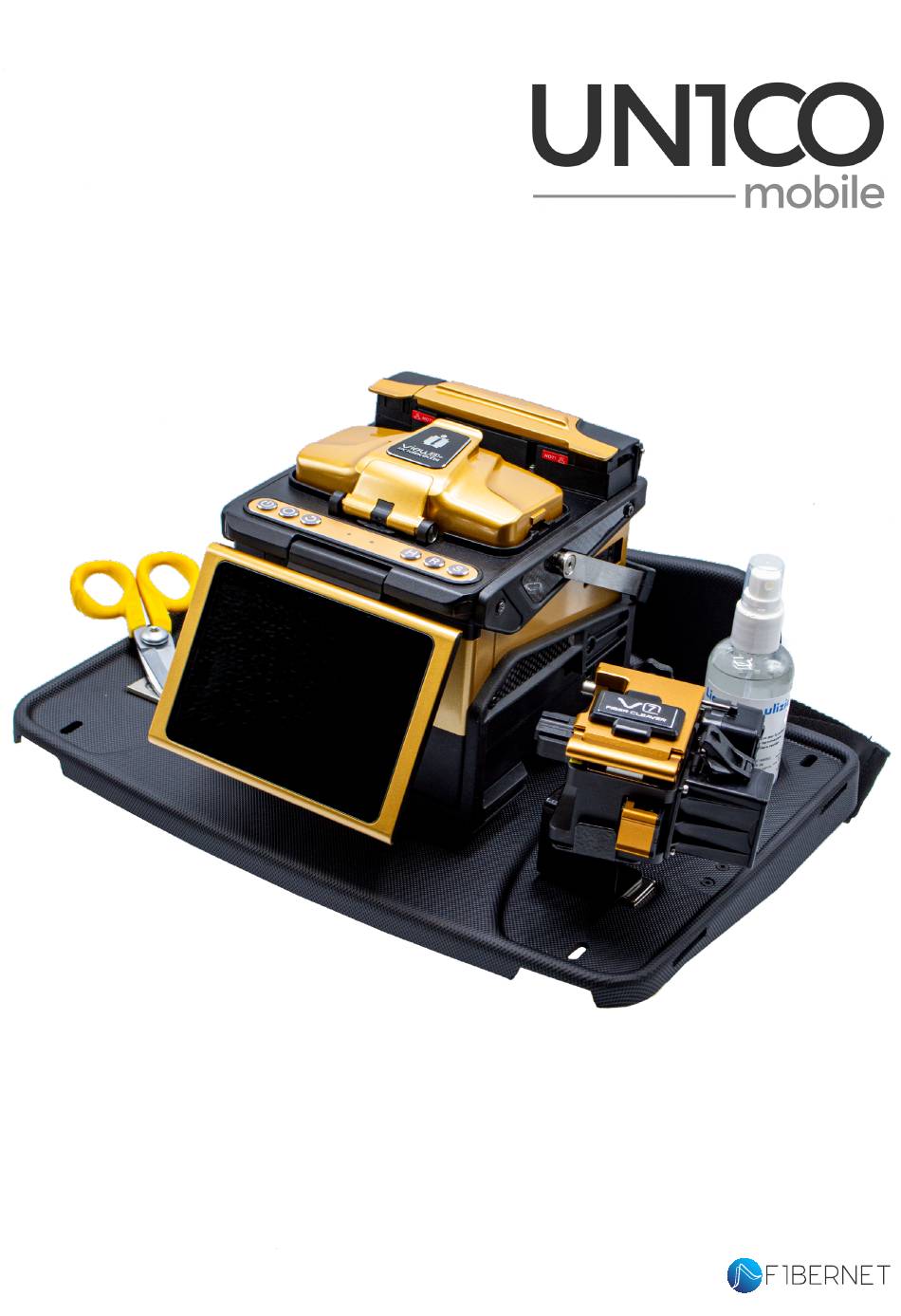

- Page 1 User Manual Ver. 3.1 - July 2022 www.fibernet.it/en...
-
Page 3: Table Of Contents
Summary What is UN1CO mobile UN1CO mobile: Compatibility UN1CO mobile: The standard package UN1CO mobile: Optionals Optional: Ladder bracket Optional: Pole mounting system Optional: Tripod Technical Specification Cleaning - Maintenance... -
Page 4: What Is Un1Co Mobile
WHAT IS UN1CO mobile UN1CO mobile is a portable workbench on which you can fasten, with the fixing screw, intruments or tools. This solution allows to prevent the accidental fall of the equipment, both on “ground” or “aerial” applications. Magnets... -
Page 5: Un1Co Mobile: Compatibility
UN1CO mobile: COMPATIBILITY UN1CO mobile is conceived to ensure full compatibility with main arc fusion splicers and cleavers available on the market Brand Splicer model Splicer fixing system Cleaver fixing system View 3 PRO “A” screw “B” screw View 5 PRO “A”... -
Page 6: Un1Co Mobile: The Standard Package
UN1CO mobile: THE STANDARD PACKAGE UN1CO mobile standard package consists of: workbench, cleaver support, shoulder strap, belt hooking system, 1 tool holsters, 2 type A screws, 1 type B screws, two type C screws, 1 100 ml refillable FO cleaner. - Page 7 In this kind of configuration, UN1CO mobile is worn by the operator during the work operations What is needed for this configuration: 1. Workbench 2. Belt hooking system 3. Shoulder strap 4. Cleaver support 5. Screws 6. Tool holster...
-
Page 8: Un1Co Mobile: Optionals
OPTIONALS UN1CO mobile Thanks to its optional features, UN1CO mobile can be used in any type of on the field applications, always ensuring safety against accidental falls of your equipment Ladder bracket With this bracket, UN1CO mobile can be fixed to the ladder: the operator can work safely in aerial applications. -
Page 9: Optional: Ladder Bracket
OPTIONAL - LADDER BRACKET UN1CO mobile can be installed, using a special bracket, directly on the ladder where the operator works. This allows a completely safe “hands free” work mode keeping the equipment fasten to the work surface. What is needed for this configuration: 1. -
Page 10: Optional: Pole Mounting System
OPTIONAL - POLE MOUNTING SYSTEM UN1CO mobile can be easily attached to poles, to ease the aerial installation tasks. The kit con- sists of a bracket and a ratchet strap, with a coil of 400 kg capacity, which allows a safe and fast assembly. -
Page 11: Optional: Tripod
OPTIONAL - TRIPOD Thanks to a special support UN1CO mobile can be installed on a tripod, which turns it into a stand alone worktop. What is needed for this configuration: 1. Workbench 2. Tripod 3. Cleaver support 4. Screws 5. Tool holster... -
Page 12: Technical Specification
Fax +39 06 90409266 RACCORDI E SMUSSI NON QUOTATI: da 0,10 a 0,30 www.fibernet.it RUGOSITA' SUPERFICIALE: Copyright Fibernet S.r.l. Vietato la riproduzione e l'uso non autorizzato. SCALA 1:2 FOGLIO 1 DI 1 Copyright Fibernet S.r.l. Forbidden reproduction and use without permition.
