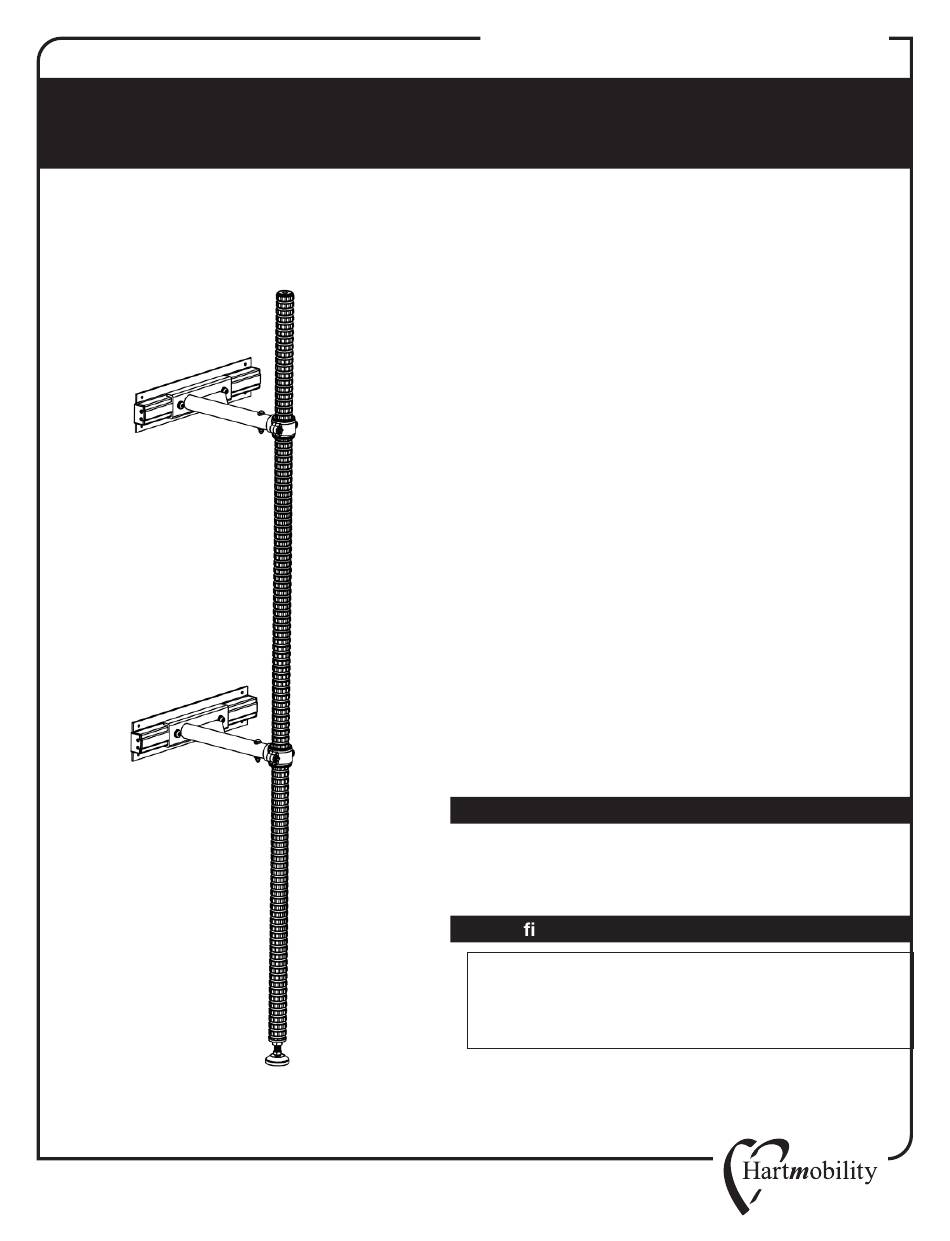

HERCULES SIDE WALL POLE with SafetyGrip®
SG520
Page 1 of 7
SG520 Installation Instructions
Table of Contents
Warnings and Cautions for Hercules Poles (2 Pages)
SG520 Installation Instructions (7 Pages)
Speci cations:
Product Name: Hercules Side Wall Pole
Product#: SG520
Maximum User Weight: 350lbs (158kg)
v1.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the HERCULES SG520 and is the answer not in the manual?

Questions and answers

Summary of Contents for HartMobility HERCULES SG520

  • Page 1 SG520 Installation Instructions HERCULES SIDE WALL POLE with SafetyGrip® SG520 Table of Contents • Warnings and Cautions for Hercules Poles (2 Pages) • SG520 Installation Instructions (7 Pages) Speci cations: • Product Name: Hercules Side Wall Pole • Product#: SG520 •...
  • Page 2: Kit Contents

    KIT CONTENTS Tools Included Page 2 of 7 | HERCULES SIDE WALL POLE with SafetyGrip® SG520 v1.2...
  • Page 3: Assembly And Installation

    ASSEMBLY & INSTALLATION Product Information and Speci cations • The Hercules Pole feature our patented interlocking SafetyGrip® and the long-lasting protection of embedded antimicrobial AlphaSan® RC5000 silver ions powder for all parts except hardware. For more details about AlphaSan®: https://www.milliken.com/en-us/businesses/chemical/product/alphasan •...
  • Page 4 STEP 2: Mount the Wall Tracks on the wall. 2a for Wood Studs. 2b for Steel Studs Note 1: The Wall Tracks have 12 inches of sideways adjustment allowing you to locate the Pole anywhere you wish between the studs. If your Pole location is near the end of the Wall Tracks the Horizontal Arms can be turned either way. Note 2: The drywall must be at least ½...
  • Page 5 STEP 3: Assemble the Pole 1. Screw the Levelling Foot into the Bottom of the Pole. Note: Make sure that at least 2” of the thread is into the bottom of the Pole. 2. Insert the Connecting Tube into the top of the Lower Pole. 3.
  • Page 6 STEP 4: Join the Pole to the Horizontal Arms 1. Remove the screws and nuts from the Pole Clamps on the ends of the Horizontal Arms. Use the Hex Key provided. 2. Stand the Pole against the opened clamp on the Horizontal Arms. 3.
  • Page 7: Maintenance And Cleaning

    To clean, use a damp cloth with soap and water or mild household cleaner, wipe clean and dry before using. Hartmobility reserves the right to update and revise our products. Refer to our website for the most up-to-date version of this document. www.SafetyGrip.com | Page 7 of 7...
