3). Put the sound files in each folder, which can contain maximum 255 sound files. Each folder must contain all Mp3 OR Wav

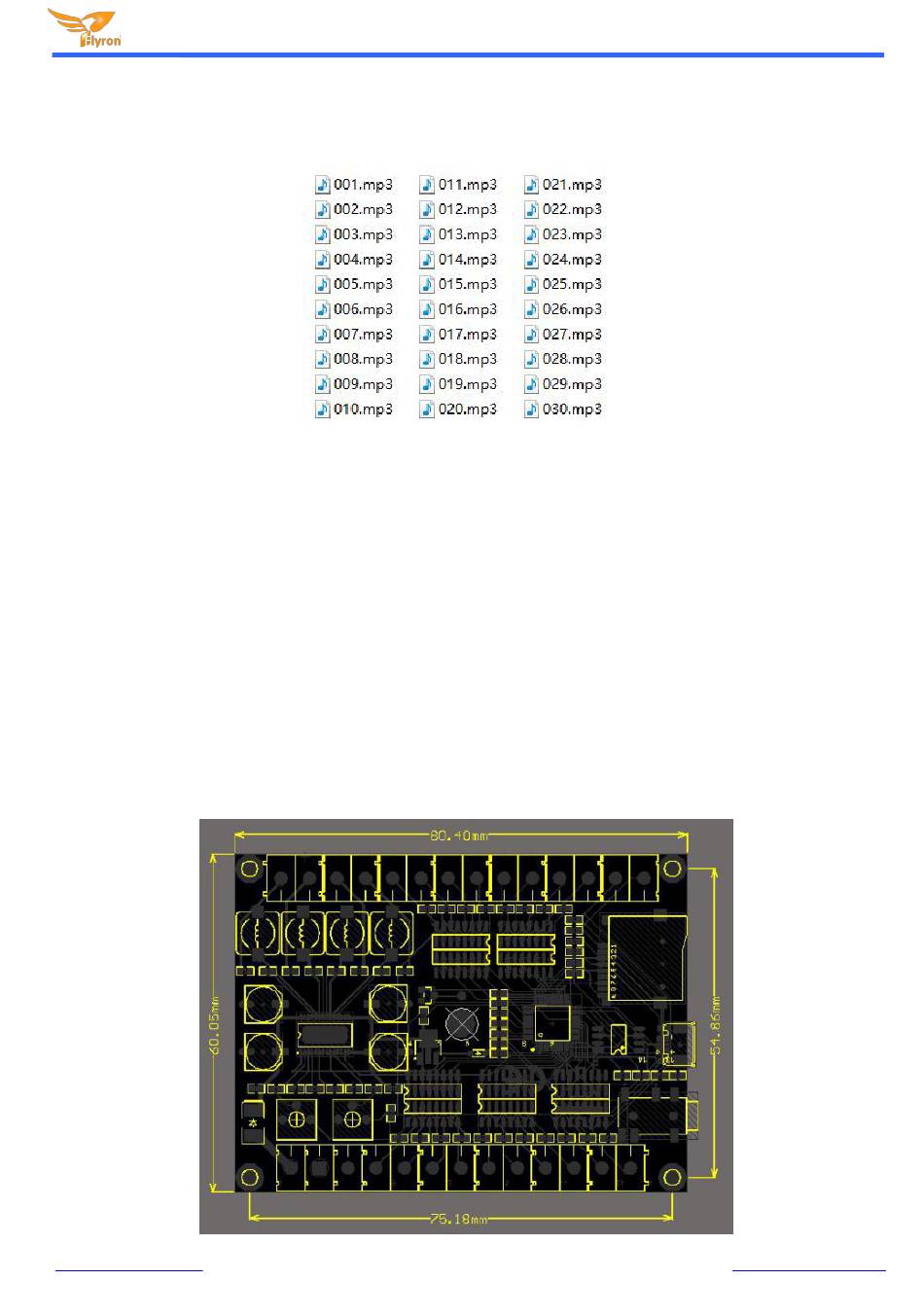

audio files. Mp3 and Wav cannot co-exist within each folder. Rename them "001.mp3/wav" to "255.mp3/wav" as shown below. For
the quickest timely response once triggered; we suggest that no more than 100 sound files in each folder.
4). After everything is done as above, safely disconnect the module with computer. Power it on and push any of the 20 buttons to
play a sound randomly in the associated folder. For example, by pushing the button associated with input "K7". It will randomly
play a sound file from the associated folder "07" and stop; push it again, it will randomly play another sound file from the
associated folder "07" and stop, etc.
4. Notes
1). If the size of the total files is smaller than 16MB, please directly use the on-board flash memory. If they are larger than 16MB,
please use an external micro SD card.
2). When using a micro SD card, please also put the configuration file in the micro SD card, otherwise the trigger mode will be
subject to the mode configured in the on-board flash memory.
3). About the speaker output, there is no difference between positive and negative.
4). The output current from a power supply must be more than 1000mA.

5. Dimension Details
